2. Go to the Parameter Backup option by selecting PAR
BACKUP on the menu with keys and , and
pressing .
To copy all parameters (including user sets and internal
parameters) from the drive to the control panel, select
MAKE BACKUP TO PANEL on the Par Backup with keys
and , and press . Operation starts.
Press if you want to stop the operation.
After the backup is completed, the display shows a
message about the completion. Press to return to
the Par Backup.
To perform restore functions, select the appropriate
operation (here RESTORE PARS ALL is used as an
example) on the Par Backup with keys and
.
Press . Restoring starts.
If you want to continue, press . Press if you
want to stop the operation. If the downloading is
continued, the display shows a message about it.
Downloading continues, drive is being restarted.

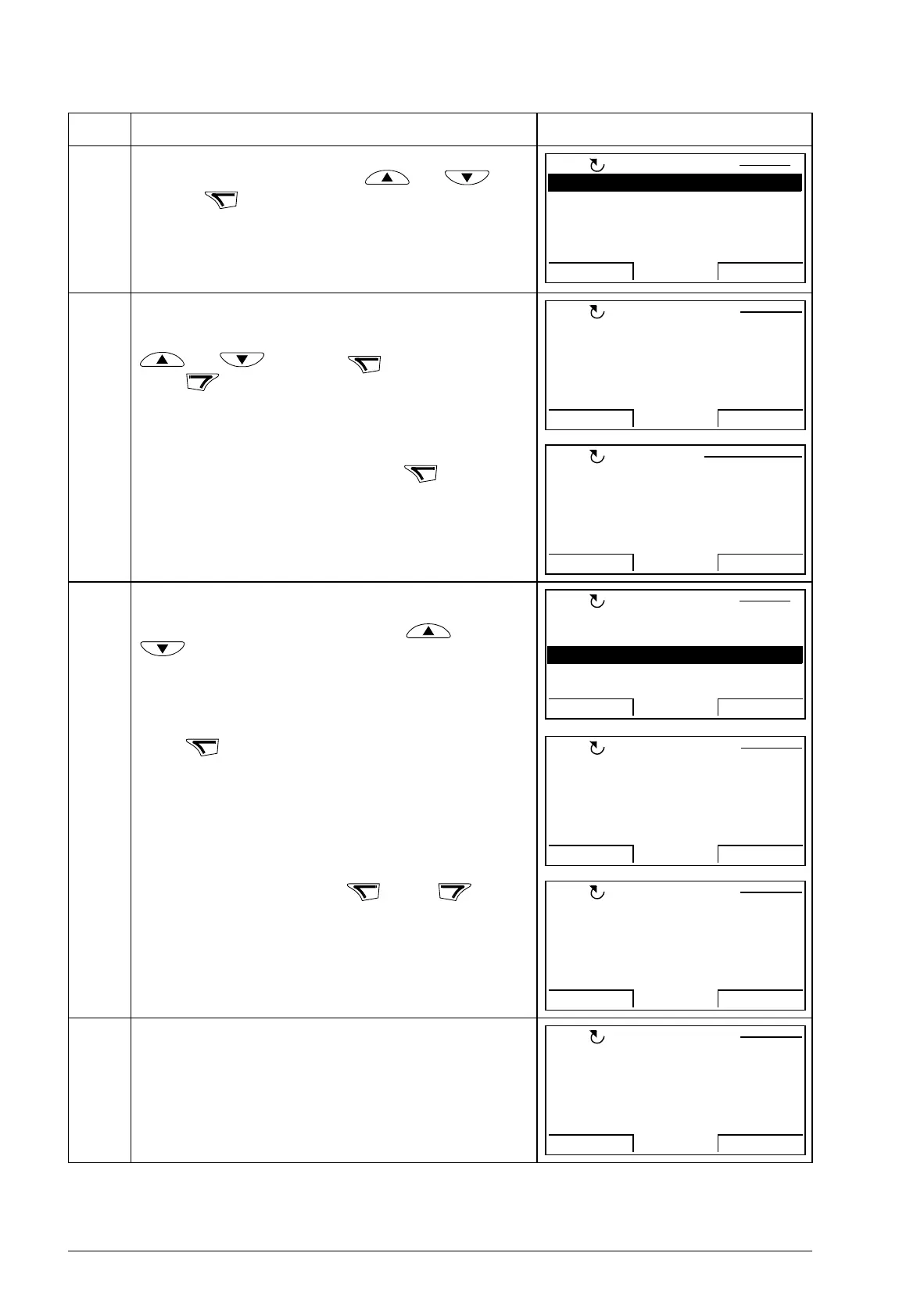

Step Action Display
ENTER
MAKE BACKUP TO PANEL
SHOW BACKUP INFO
RESTORE PARS ALL
RESTORE PARS NO-IDRUN
RESTORE PARS IDRUN
EXIT SEL
00:00
PAR BACKUP 1
LOC
SEL
ABORT
ABORT
PAR BACKUP
LOC
Copying file 1/2
00:00
OK
OK
Parameter upload
successful
MESSAGE
LOC
00:00
MAKE BACKUP TO PANEL
SHOW BACKUP INFO
RESTORE PARS ALL
RESTORE PARS NO-IDRUN
RESTORE PARS IDRUN
EXIT SEL
PAR BACKUP 3
LOC
00:00
SEL
Initializing param
restore operation
PAR BACKUP
LOC
00:00
CONT
CANCEL
Initializing param.
restore operation
PAR BACKUP
LOC
00:00
Restarting drive
PAR BACKUP
LOC
00:00
