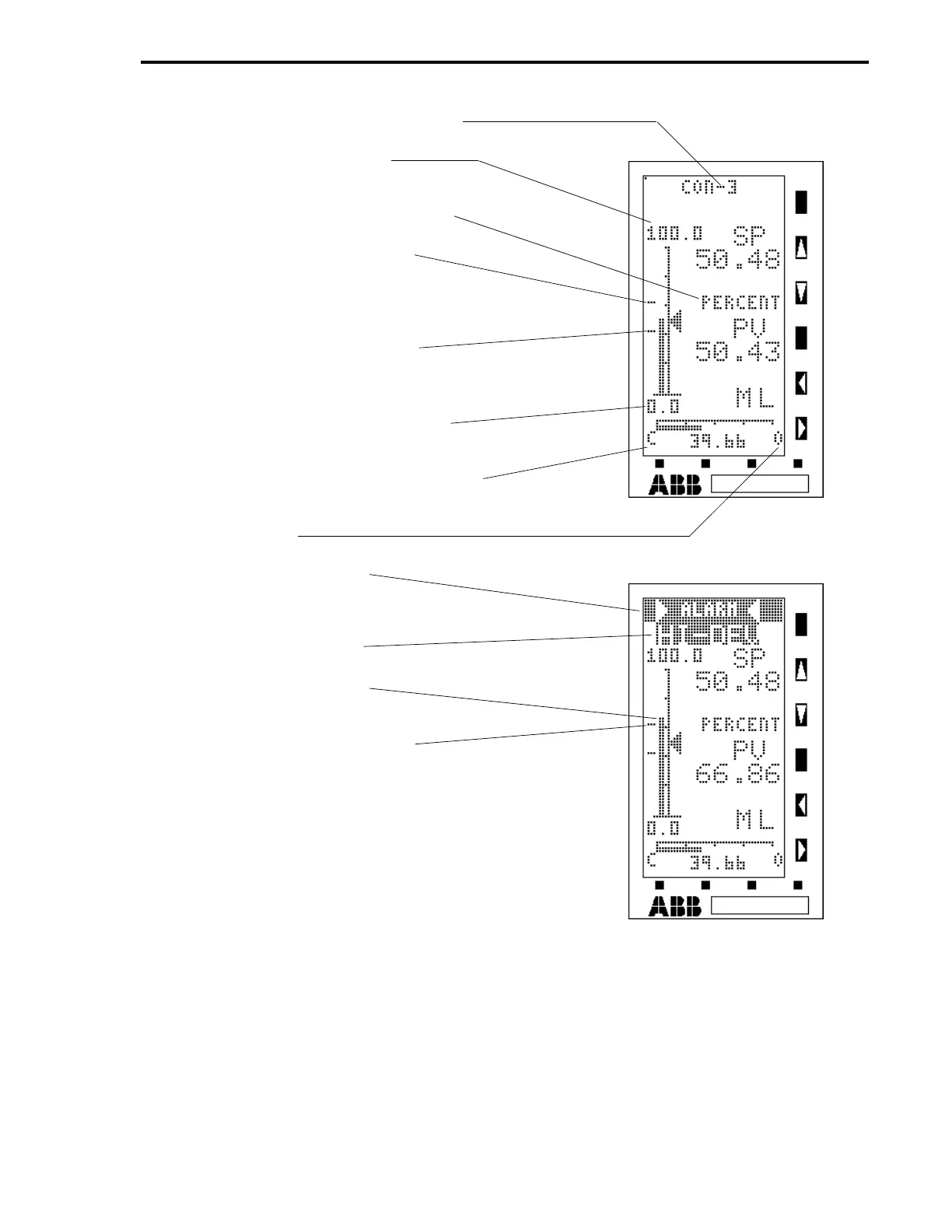

Figure 4-3. Point Displays 3, 4, 5, and 6 (CDM = 0, Standard PID)
(Sheet 5 of 5)
CONTROL MODULE TAG NAME (A006)
CONTROLLER SPAN (C223) +
CONTROLLER LOWER RANGE (C224)
ENGINEERING UNITS LEGEND (A007)
HI-DEV ALARM LIMIT INDICATOR
CON3 ALARM LIMIT 1 (C211)
(ALSO CONTROL ALARM MODE,
B350 = 6)
LO-DEV ALARM LIMIT INDICATOR
CON3 ALARM LIMIT 2 (C212)
CONTROLLER LOWER RANGE (C224)
C = CLOSE VALVE (SEE REVERSE VALVE
L181)
O = OPEN VALVE
HORN OVERLAY (A009 =
’wALARMx’, L065 = 1, AND
L063 = 0)
HI-DEV ALARM OVERLAY
PROCESS VARIABLE BAR
ABOVE HI-DEV ALARM LIMIT
DEV ALARM LIMIT INDICATOR
CON3 ALARM LIMIT 1 (C211)
CON3 DISPLAY AND CON3 HI-DEV ALARM
OVERLAY
Section 4. Operator Displays
4-15
