MULTIPLE DATAPOINTS: (LOOPS 1 AND 2)
CCI1 - REMOTE SP ENABLE LOOP 2
(CONTACT INPUT INVERT [L265])
AI2 - REMOTE SETPOINT LOOP 1
AIO - PROCESS VARIABLE LOOP 1
CCI0 - REMOTE SP ENABLE LOOP 1
(CONTACT INPUT INVERT [L264])
AI1 - PROCESS VARIABLE LOOP 2
AI3 - REMOTE SETPOINT LOOP 2
CCI4 - FORCE FALLBACK LOOP 1
CCI5 - FORCE FALLBACK LOOP 2
(CONTACT INPUT INVERT [L268])
(OUTPUT TRACK VALUE [C129])
(SETPOINT TRACK VALUE [C128])
(OUTPUT TRACK ENABLE [L119])
(SETPOINT TRACK ENABLE [L118])
(CONTACT INPUT INVERT [L269])
(OUTPUT TRACK VALUE [C165])
(SETPOINT TRACK VALUE [C164])
(OUTPUT TRACK ENABLE [L143])
(SETPOINT TRACK ENABLE [L142])
AI0 - PROCESS VARIABLE LOOP 1
RELATED DATAPOINTS
AI0 ENGINEERING SPAN (C256)
AI0 ENGINEERING ZERO (C276)
AI0 DIGITAL FILTER INDEX (B269)
AI0 0-5 V INPUT (L416)
AI0 SQUARE ROOT SIGNAL (L440)
AI1 - PROCESS VARIABLE LOOP 2
RELATED DATAPOINTS
AI1 ENGINEERING SPAN (C257)
AI1 ENGINEERING ZERO (C277)
AI1 DIGITAL FILTER INDEX (B270)
AI1 0-5 V INPUT (L417)
AI1 SQUARE ROOT SIGNAL (L441)
AI2 - ROMOTE SETPOINT LOOP 1 RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L115)
AI2 ENGINEERING SPAN (C258)
AI2 ENGINEERING ZERO (C278)
AI2 DIGITAL FILTER INDEX (B271)
AI2 0-5 V INPUT (L418)
AI2 SQUARE ROOT SIGNAL (L442)
REMOTE SETPOINT BIAS (B1) (C112)
REMOTE SETPOINT RATIO (K1) (C113)
AI3 - ROMOTE SETPOINT LOOP 2 RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L139)
AI3 ENGINEERING SPAN (C259)
AI3 ENGINEERING ZERO (C279)
AI3 DIGITAL FILTER INDEX (B272)
AI3 0-5 V INPUT (L419)
AI3 SQUARE ROOT SIGNAL (L443)
REMOTE SETPOINT BIAS (B1) (C148)
REMOTE SETPOINT RATIO (K1) (C149)
LOOP 1 AND LOOP 2 SETPOINT
RELATED DATAPOINTS
CONTROL ZONE (C114, C150)
SETPOINT HIGH LIMIT (C125, C161)
SETPOINT LOW LIMIT (C126, C162)
SETPOINT SLEW RATE (C117, C153)

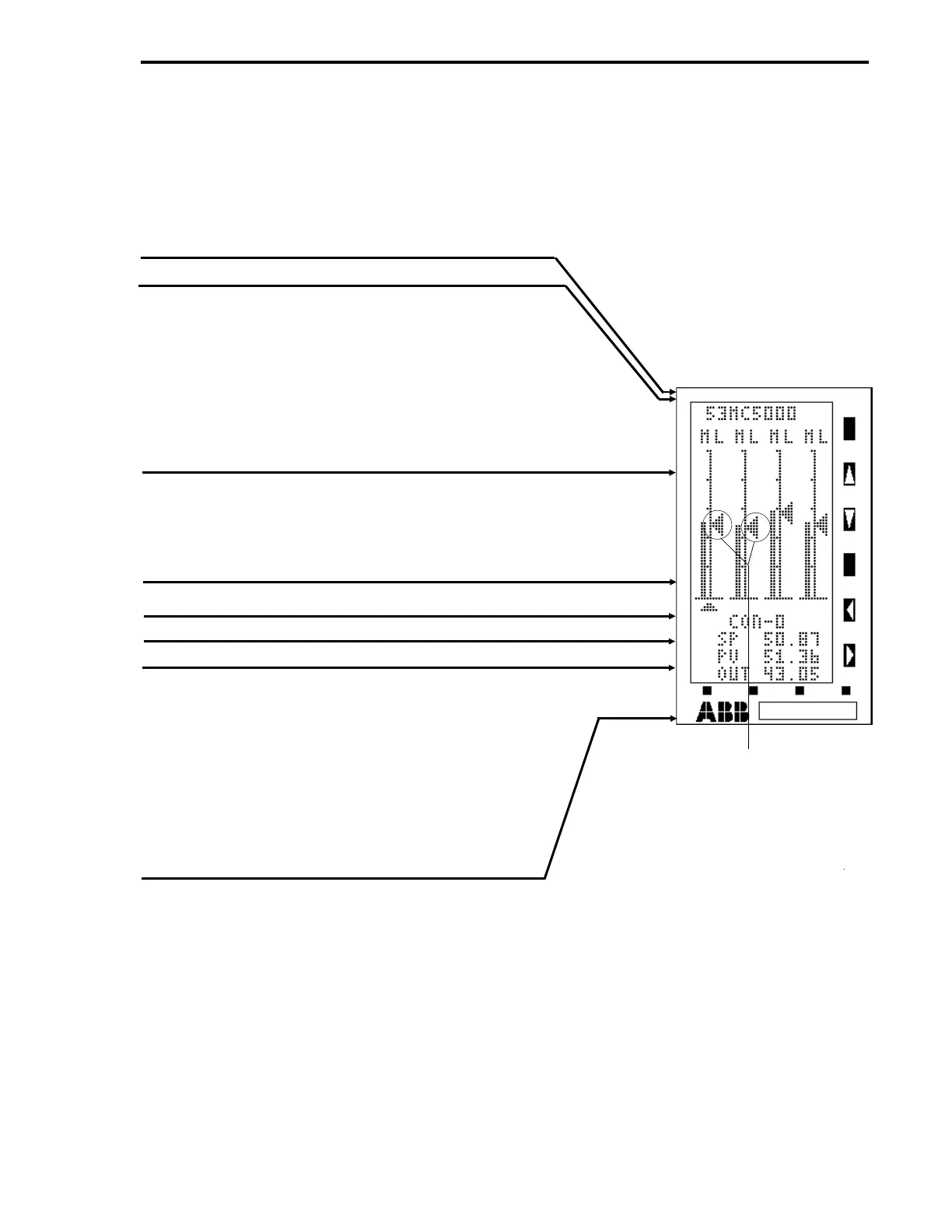

Figure 15-2. CS41 Four Loop Controller Datapoints (Sheet 1 of 4)
Section 15. CS41 - Four Loop Controller
15-5
