3.12 ENGINEER MODE OVERLAYS
The
Engineer Mode Overlays
are used to view (
Display
) or make necessary changes (
Configure
)
to the controller database parameters. Standard viewing/change entries are made by addressing
single parameters by their datapoint specification on a single line overlay at the bottom of the display.
On units with HiRes displays (53MC5xxxB4xxxxxxxxx) either the datapoint method or the module
method may be used to perform viewing/change operations. The following sample screens show the
high-resolution display except where noted. The module method uses a full screen overlay to
navigate through a series of menus to select the parameter(s) of interest by their module/atom
reference. If Engineer Mode is accessed and its functions (e.g., configure or display) are not used, it
"times-out" in 20 seconds and the overlay disappears from the bottom of the display. The Engineer
Mode may be locked-out with the Hand Held Configurer using the procedure described in Section
3.14.
3.12.1 PASSWORD FUNCTION PROMPT
When the password prompt
KEY?
appears, it indicates a password was set with an external device
(e.g. Hand Held Configurer, personal computer, etc.). The password can not be set via the front
panel push buttons. A password key is a maximum of 10 numeric characters (numbers 0-9 only). It
does not impede display functions in engineering mode but must be unlocked to perform configura-
tion functions. A password key is
NOT SET FOR NEW INSTRUMENTS
from the factory; therefore,
if it is set, it must have been done locally. The password must first be obtained from the originator
before the procedures below can be used to access the engineering mode configuration function
capabilities.
3.12.1.1 Procedure to Enter a Key Password

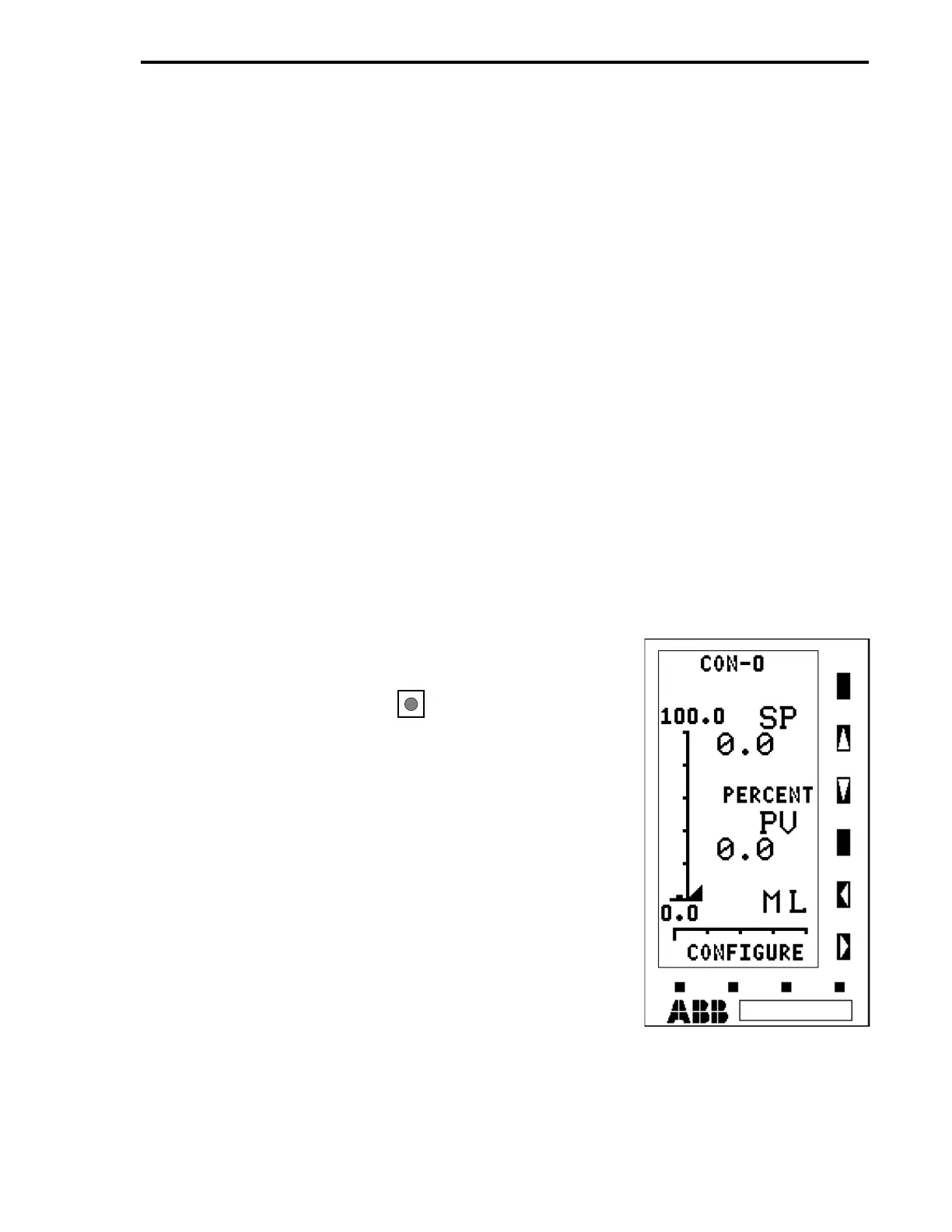

The following screens illustrate the
CONFIGURE
prompt, the
KEY?
prompt, the key
222222
en-
tered on the edit line, and the
POINT
input query that appears after key access is granted.
•
Press the
Mode
button to enter the ENGINEER
mode indicated by the appearance of either
CONFIG-
URE
,
DISPLAY
or
PROGRAM
at the bottom of the
display.
•
If
CONFIGURE
does not appear, press F2 until
CON-
FIGURE
appears
•
When
CONFIGURE
is displayed, press F3.
Section 3. Product Description
3-9
