2.0 INSTALLATION
2.1 INSPECTION
A list of all items in the shipment is attached to the shipping container. Inspect the equipment
upon arrival for shipping damage and report all claims to the responsible shipping agent before in-
stallation is attempted. The ABB Automation Customer Service Department should be notified if it
appears the damage may cause faulty operation.
As a precaution, inspect the packing material before discarding it to prevent inadvertent loss of the
mounting hardware or special instructions that may have been included with the shipment.
2.2 PACKING BOLT REMOVAL
The packing bolt is illustrated in Figure 2-1 and the removal procedure is provided in Table 2-1.

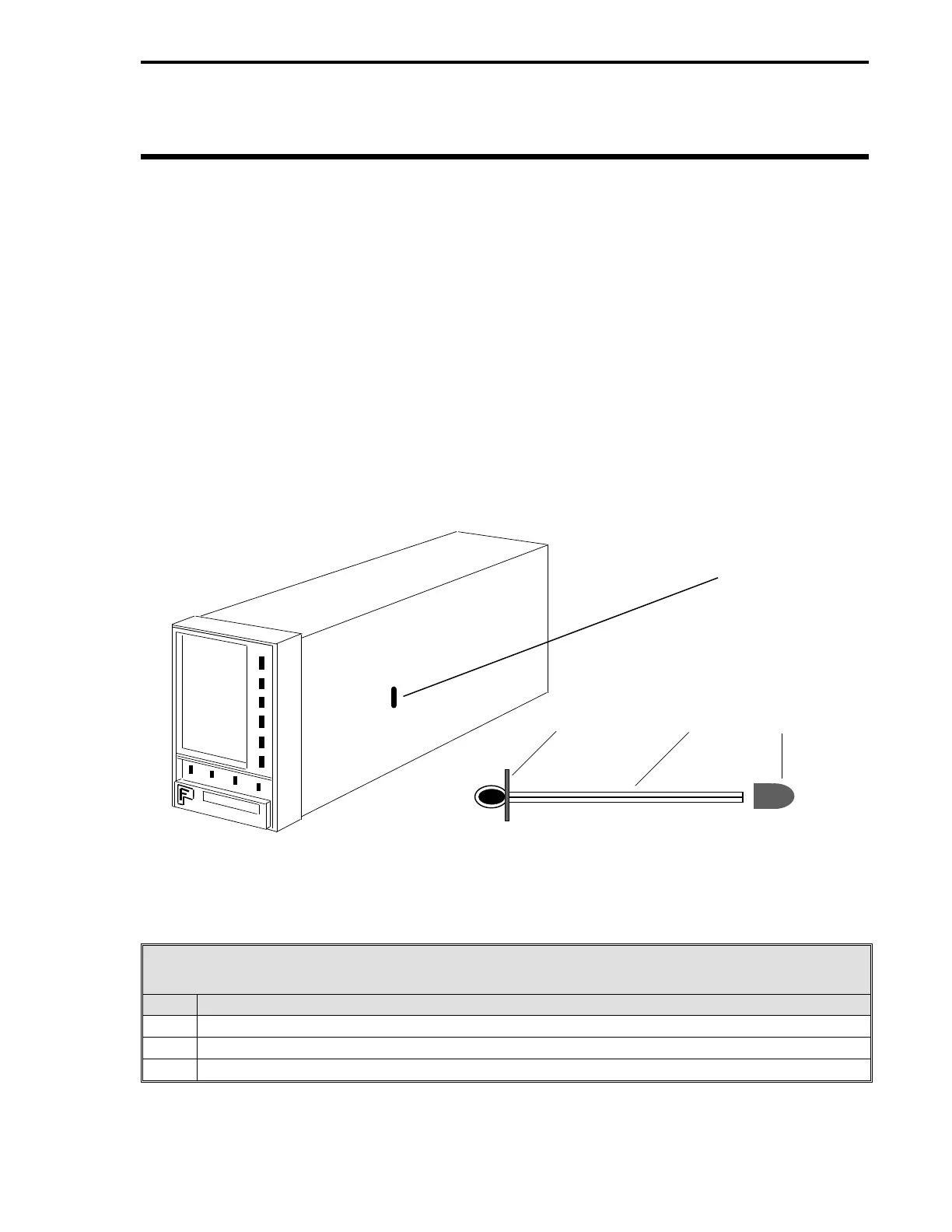

Figure 2-1. Packing Bolt
Table 2-1. Packing Bolt Removal
Step Procedure
1 While holding the bolt loop, twist off end-cap.
2 Remove tag and slide bolt with washer from unit.
3 Save bolt, washer, and end-cap.
ù
PACKING BOLT
THROUGH-HOLE
BOLT
END-CAP
WASHER
Section 2. Installation
2-1
