ABB ControlIT 53MC5000 - Figure 17-2. Process Step Response Curve

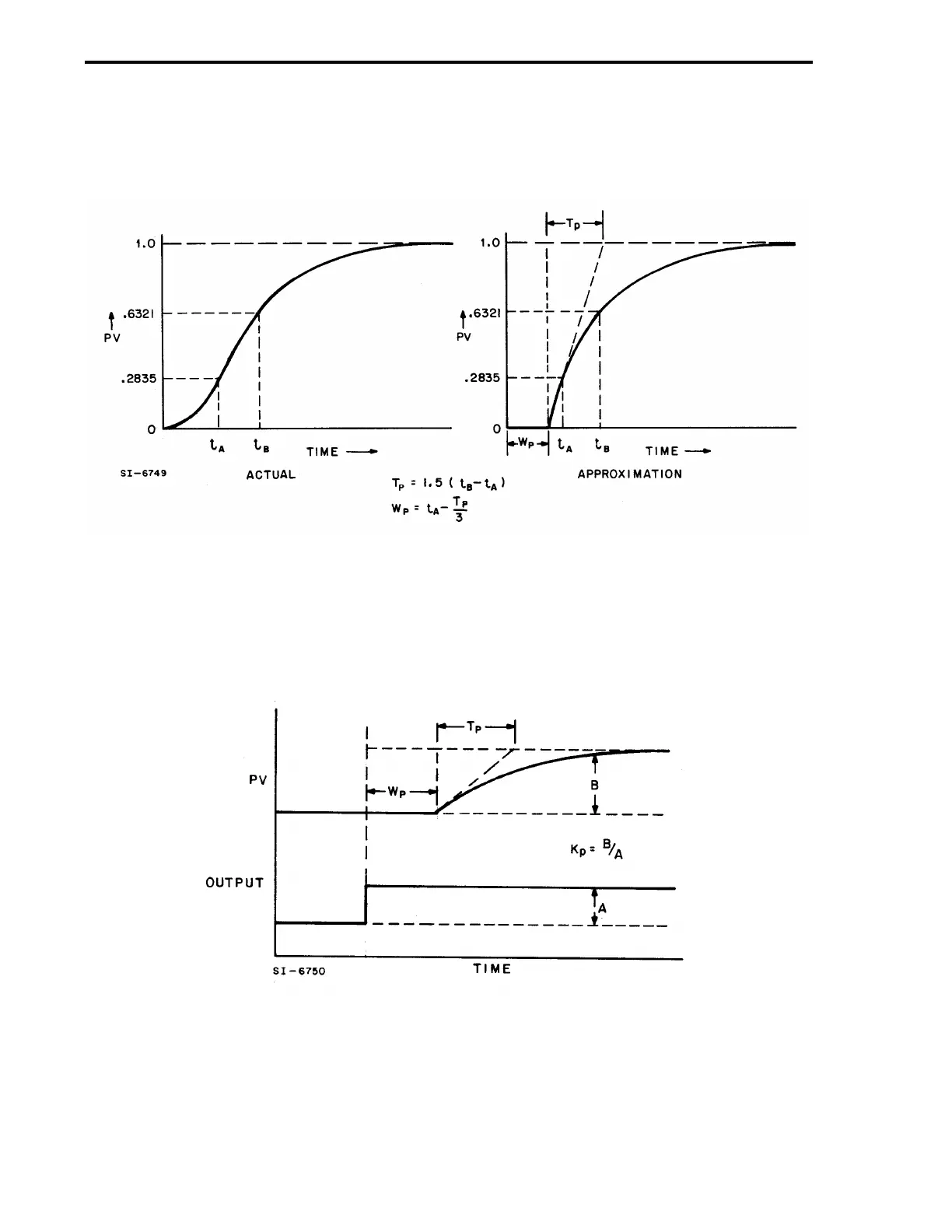

Note: The approximation of a process step response curve by a first order time lag plus dead-time
model is done by equating their values at 0.2835 and 0.6321 fraction of the total excursion.
Figure 17-2. Process Step Response Curve
