ABB ControlIT 53MC5000 User Manual

NOTE; BRACKETS [XXXX] CONTAIN DATA SHOWN IN RECTANGLES ON
THE DISPLAY.
DI1 - AUTO ENABLE
AI2 - ADDITIVE FEED FORWARD
AIO - PROCESS VARIABLE
DI0 - COMPUTER READY
AI3 - CONTROL ELEMENT
FEEDBACK
DO0 - COMPUTER OUTPUT
DIVERTER
DO1 - BACKUP OUTPUT
DIVERTER
AO1 - COMPUTER CONTROL
STATUS
AO0 - BACKUP CONTROL
OUTPUT
(20 mA = COMPUTER CONTROL,
4 mA = MC5000 CONTROL)
(CONTACT INPUT INVERT [L265])
(CONTACT INPUT INVERT [L264])
ALARMS RELATED DATAPOINTS
CONTROL ALARM MODE (B335)
0 - HIGH/LOW
1 - NONE
2 - HIGH/NONE
3 - NONE/LOW
4 - HIGH/HI-HI
5 - LOW/LO-LO
6 - HI SP DEVIATION/LO SP
DEVIATION
ALARM LIMIT 1 (C103)
ALARM LIMIT 2 (C104)
ALARM DEAD BAND (C105)
OUTPUT RELATED DATAPOINTS
AO0 0-20 mA OUTPUT (L472)
MANUAL FALLBACK DISABLE (L120)
HARD MANUAL LIMIT (L122)
OUTPUT HIGH LIMIT (C109)
OUTPUT LOW LIMIT (C110)
OUTPUT SLEW RATE (C118)
CON0 CONTROL RELATED DATA-
POINTS (SEE SECTION 16, TUNING,
OR SECTION 17, EASY-TUNE, TO
TUNE PID DATAPOINTS)
PROPORTIONAL BAND (C106)
RESET TIME (C107)
RATE TIME (C108)
MANUAL RESET (C111)
REVERSE SWITCH (L106)
AUTO ENABLE (L114)
CONTROLLER SPAN (C115) [100]
CONTROLLER LOWER RANGE
(C116) [0]
ADDITIVE FEED FORWARD
RELATED DATAPOINTS
AI2 ENGINEERING SPAN (C258)
AI2 ENGINEERING ZERO (C278)
AI2 DIGITAL FILTER INDEX (B271)
AI2 0-5 V INPUT (L418)
AI2 SQUARE ROOT SIGNAL (L442)
SETPOINT RELATED DATAPOINTS
CONTROL ZONE (C114)
SETPOINT HIGH LIMIT (C125)
SETPOINT LOW LIMIT (C126)
SETPOINT SLEW RATE (C117)
PROCESS VARIABLE
RELATED DATAPOINTS
AI0 ENGINEERING SPAN (C256)
AI0 ENGINEERING ZERO (C276)
AI0 DIGITAL FILTER INDEX (B269)
AI0 0-5 V INPUT (L416)
AI0 SQUARE ROOT SIGNAL (L440)
MISCELLANEOUS DATAPOINTS
(SHOWN IN RECTANGLES ON THE
DISPLAY)
CONTROL TAGNAME (A000)
[CON-0]
ENGINEERING UNITS (A001)
[PERCENT]
REVERSE VALVE (L109) [C] [O]

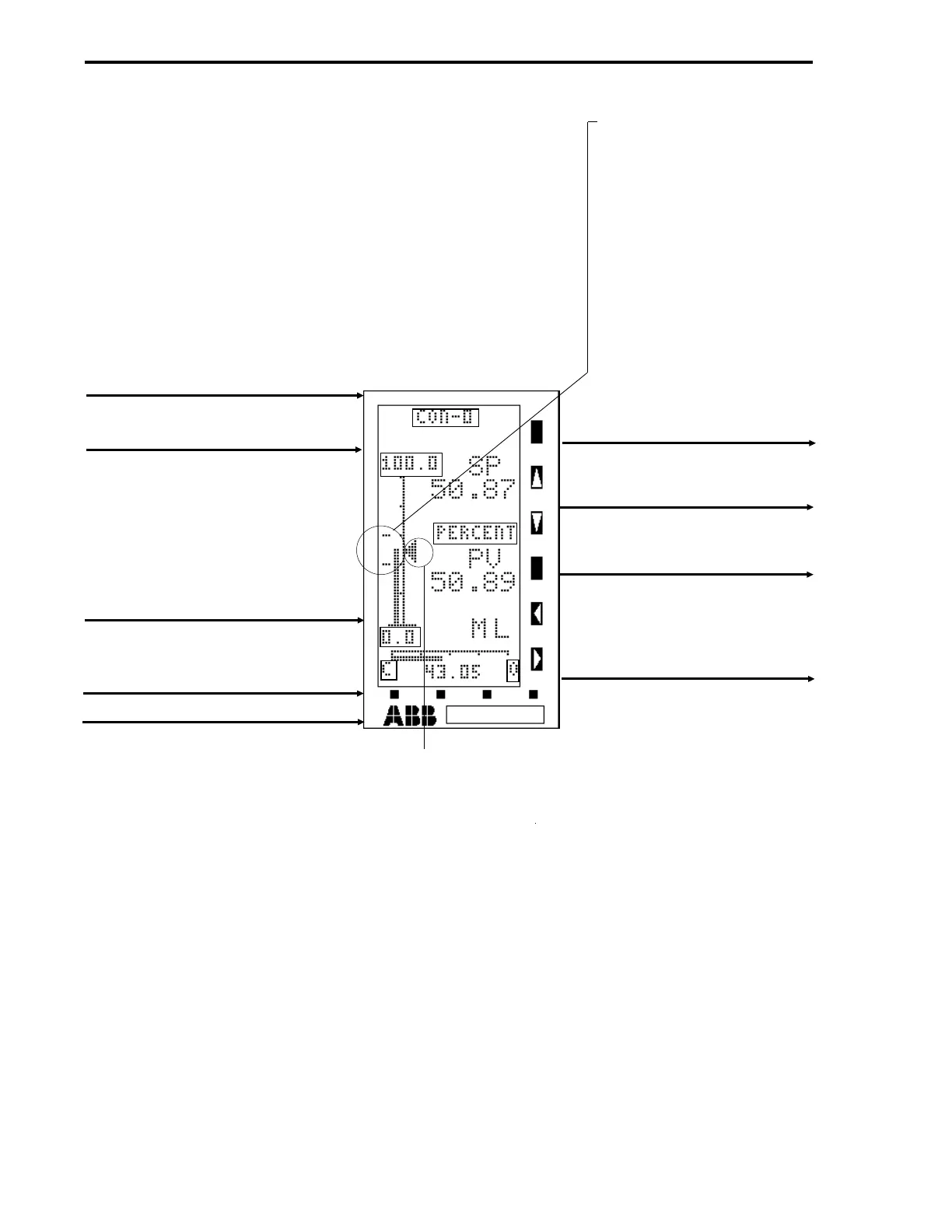

Figure 7-3. CS2 Analog Backup Controller Datapoints
53MC5000 Process Control Station
7-4
