DOUBLE DATAPOINTS: (PRIMARY, LIMITING)
DI1 - REMOTE ENABLE LIMITING
(CONTACT INPUT INVERT [L265])
AI2 - LIMITING VARIABLE LOOP
AIO - PRIMARY VARIABLE LOOP
DI0 - REMOTE ENABLE PRIMARY
(CONTACT INPUT INVERT [L264])
AI1 - REMOTE SETPOINT PRIMARY
AI3 - REMOTE SETPOINT LIMITING
AI3 - ROMOTE SETPOINT LIMITING RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L139)
REMOTE SETPOINT BIAS (B1) (C148)
REMOTE SETPOINT RATIO (K1) (C149)
AI3 ENGINEERING SPAN (C259)
AI3 ENGINEERING ZERO (C279)
AI3 DIGITAL FILTER INDEX (B272)
AI3 0-5 V INPUT (L419)
AI3 SQUARE ROOT SIGNAL (L443)
AI2 - LIMITING VARIABLE LOOP
RELATED DATAPOINTS
AI2 ENGINEERING SPAN (C258) = 100
AI2 ENGINEERING ZERO (C278)
AI2 DIGITAL FILTER INDEX (B271)
AI2 0-5 V INPUT (L418)
AI2 SQUARE ROOT SIGNAL (L442)
SETPOINT RELATED DATAPOINTS
CONTROL ZONE (C114, C150)
SETPOINT HIGH LIMIT (C125, C161)
SETPOINT LOW LIMIT (C126, C162)
SETPOINT SLEW RATE (C117, C153)
AI0 - PRIMARY VARIABLE LOOP
RELATED DATAPOINTS
AI0 ENGINEERING SPAN (C256)
AI0 ENGINEERING ZERO (C276)
AI0 DIGITAL FILTER INDEX (B269)
AI0 0-5 V INPUT (L416)
AI0 SQUARE ROOT SIGNAL (L440)

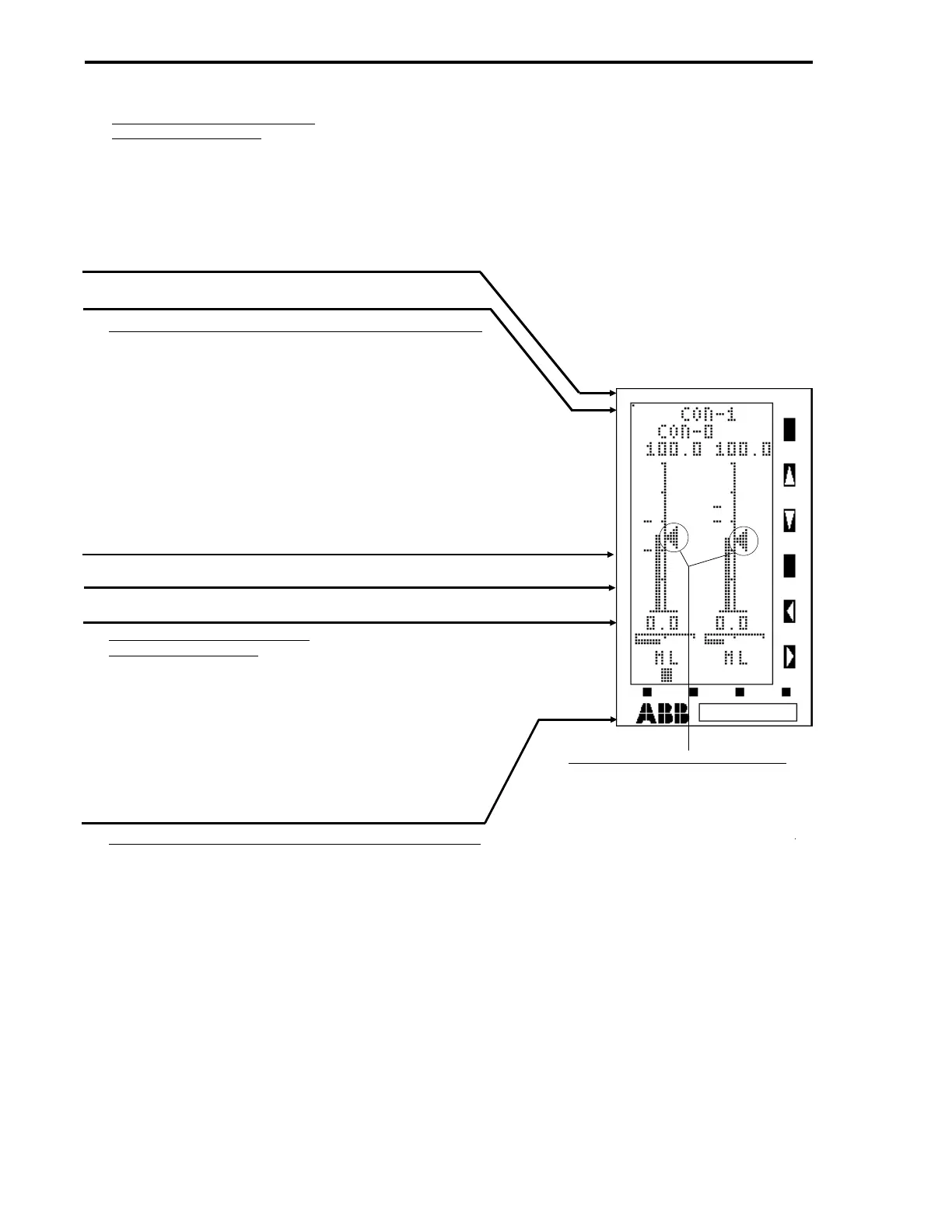

Figure 13-2. CS22 Two Loop Override Controller Datapoints
(Sheet 1 of 2)
AI1 - REMOTE SETPOINT PRIMARY RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L115)
REMOTE SETPOINT BIAS (B1) (C112)
REMOTE SETPOINT RATIO (K1) (C113)
AI1 ENGINEERING SPAN (C257)
AI1 ENGINEERING ZERO (C277)
AI1 DIGITAL FILTER INDEX (B270)
AI1 0-5 V INPUT (L417)
AI1 SQUARE ROOT SIGNAL (L441)
