MULTIPLE DATAPOINTS: (LOOPS 3 AND 4)
CCI3 - REMOTE SP ENABLE LOOP 4
(CONTACT INPUT INVERT [L267])
AI6 - REMOTE SETPOINT LOOP 3
AI4 - PROCESS VARIABLE LOOP 3
CCI2 - REMOTE SP ENABLE LOOP 3
(CONTACT INPUT INVERT [L266])
AI5 - PROCESS VARIABLE LOOP 4
AI7 - REMOTE SETPOINT LOOP 4
CCI6 - FORCE FALLBACK LOOP 3
CCI7 - FORCE FALLBACK LOOP 4
(CONTACT INPUT INVERT [L270])
(OUTPUT TRACK VALUE [C201])
(SETPOINT TRACK VALUE [C200])
(OUTPUT TRACK ENABLE [L167])
(SETPOINT TRACK ENABLE [L166])
(CONTACT INPUT INVERT [L271])
(OUTPUT TRACK VALUE [C237])
(SETPOINT TRACK VALUE [C236])
(OUTPUT TRACK ENABLE [L191])
(SETPOINT TRACK ENABLE [L190])
AI4 - PROCESS VARIABLE LOOP 3
RELATED DATAPOINTS
AI4 ENGINEERING SPAN (C260)
AI4 ENGINEERING ZERO (C280)
AI4 DIGITAL FILTER INDEX (B273)
AI4 0-5 V INPUT (L420)
AI4 SQUARE ROOT SIGNAL (L444)
AI5 - PROCESS VARIABLE LOOP 4
RELATED DATAPOINTS
AI5 ENGINEERING SPAN (C261)
AI5 ENGINEERING ZERO (C281)
AI5 DIGITAL FILTER INDEX (B274)
AI5 0-5 V INPUT (L421)
AI5 SQUARE ROOT SIGNAL (L445)
AI6 - ROMOTE SETPOINT LOOP 3 RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L163)
AI6 ENGINEERING SPAN (C262)
AI6 ENGINEERING ZERO (C282)
AI6 DIGITAL FILTER INDEX (B275)
AI6 0-5 V INPUT (L422)
AI6 SQUARE ROOT SIGNAL (L446)
REMOTE SETPOINT BIAS (B1) (C184)
REMOTE SETPOINT RATIO (K1) (C185)
AI7 - ROMOTE SETPOINT LOOP 4 RELATED DATAPOINTS
AFFECTED BY THE SETPOINT RELATED DATAPOINTS
REMOTE SETPOINT ENABLE (L187)
AI7 ENGINEERING SPAN (C263)
AI7 ENGINEERING ZERO (C283)
AI7 DIGITAL FILTER INDEX (B276)
AI7 0-5 V INPUT (L423)
AI7 SQUARE ROOT SIGNAL (L447)
REMOTE SETPOINT BIAS (B1) (C220)
REMOTE SETPOINT RATIO (K1) (C221)
LOOP 3 AND LOOP 4 SETPOINT
RELATED DATAPOINTS
CONTROL ZONE (C186, C222)
SETPOINT HIGH LIMIT (C197, C233)
SETPOINT LOW LIMIT (C198, C234)
SETPOINT SLEW RATE (C189, C225)

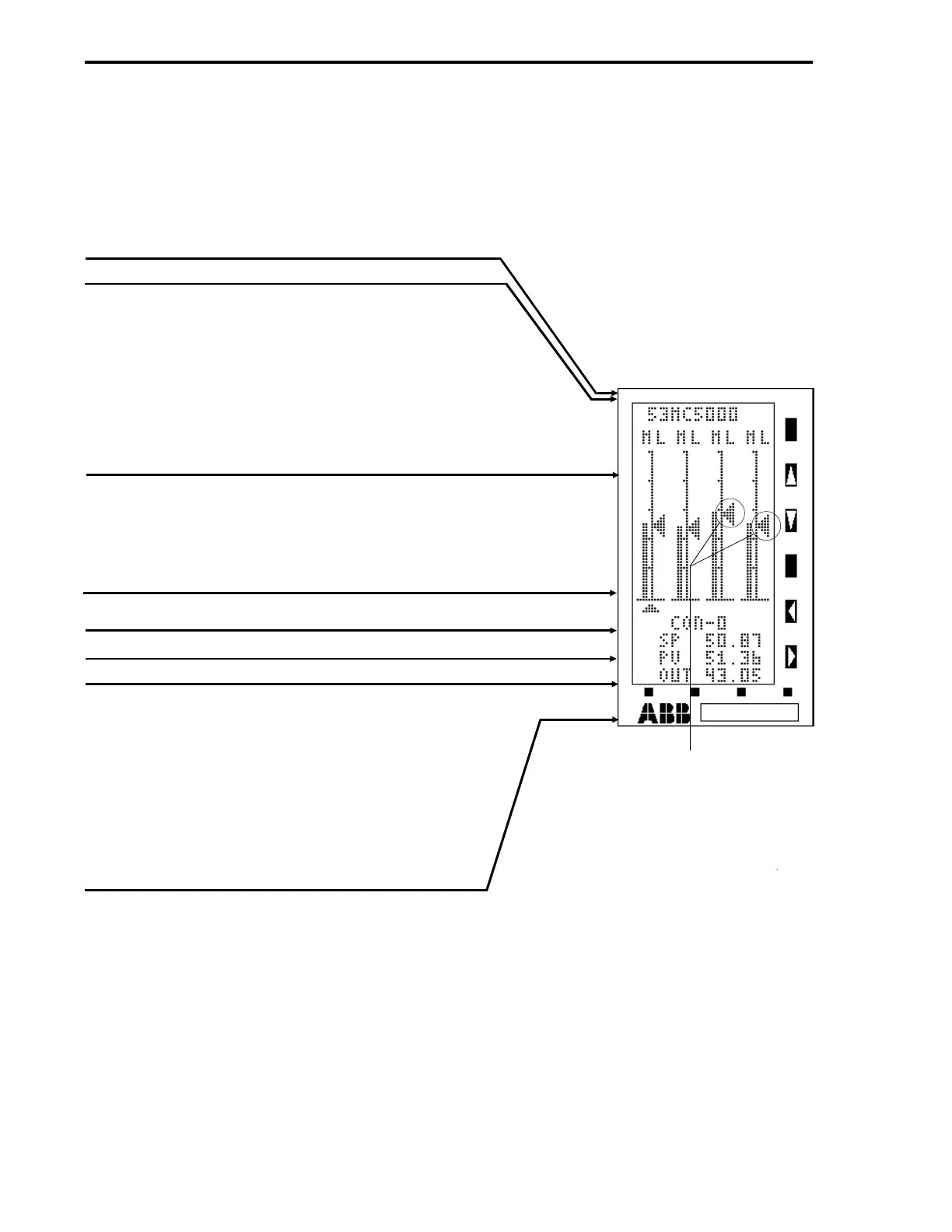

Figure 15-2. CS41 Four Loop Controller Datapoints (Sheet 2 of 4)
53MC5000 Process Control Station
15-6
