ABB ControlIT 53MC5000 - Page 135

*PB = PUSH BUTTON

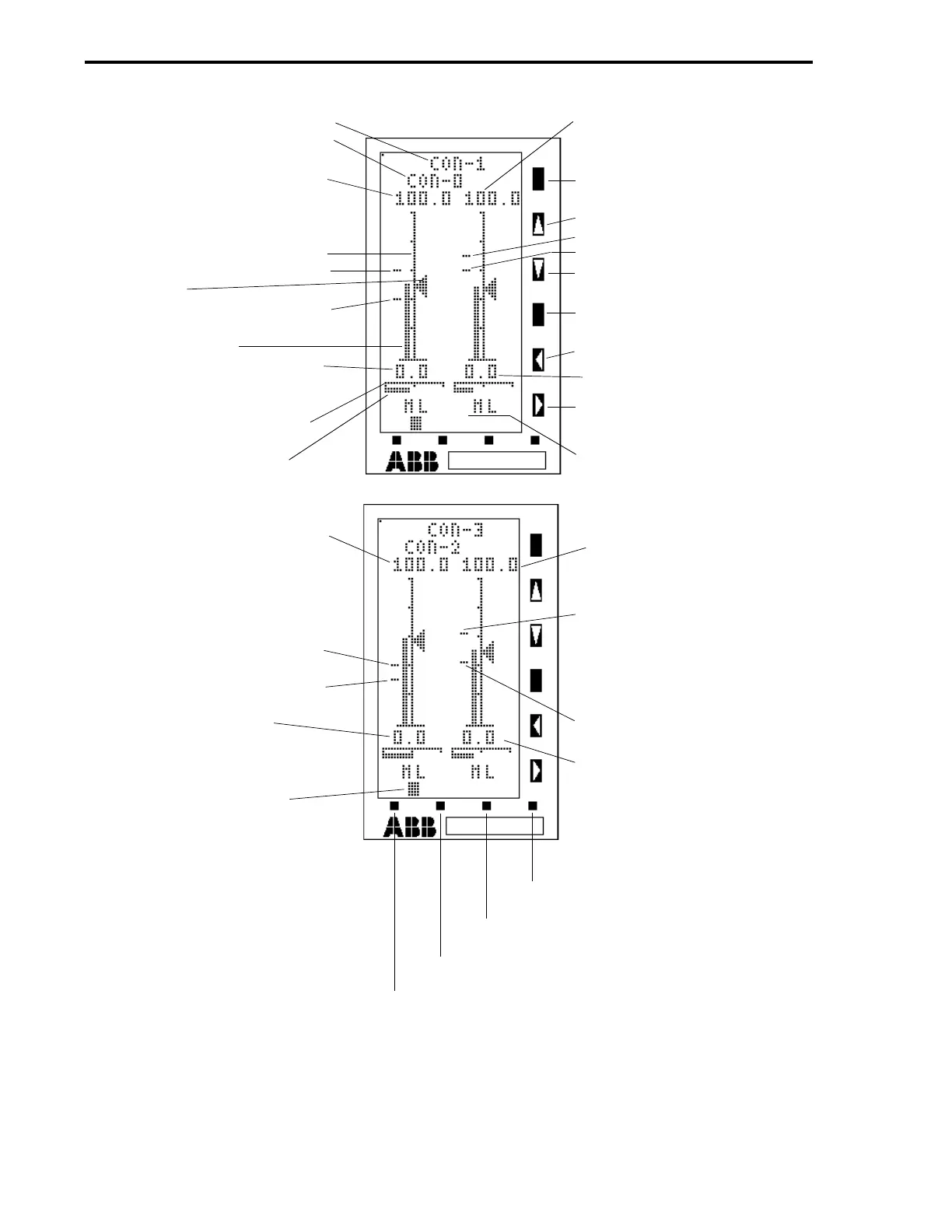

Figure 4-9. Two Loop Point Displays 7 and 8 (Sheet 2 of 2)
RIGHT BAR GRAPH TAG NAME
LEFT BAR GRAPH TAG NAME
CONTROLLER SPAN (C115) +
CONTROLLER LOWER
RANGE (C116)
50 SEGMENT VERTICAL AXIS
CON0 ALARM LIMIT 1 (C103)*
SETPOINT
CON0 ALARM LIMIT 2 (C104)*
PV BAR
CONTROLLER LOWER RANGE
(C116)
16 SEGMENT HORIZONTAL
AXIS
OUTPUT DYNAMIC BAR
CONTROLLER SPAN (C187) +
CONTROLLER LOWER
RANGE (C188)
CON2 ALARM LIMIT 1 (C175)
CON2 ALARM LIMIT 2 (C176)
CONTROLLER LOWER
RANGE (C188)
SELECTION INDICATOR
BLOCK
CONTROLLER SPAN (C151) +
CONTROLLER LOWER
RANGE (C152)
R/L - REMOTE/ LOCAL
SETPOINT CONTROL PB*
L = SETPOINT UP ARROW PB
CON1 ALARM LIMIT 1 (C139)
CON1 ALARM LIMIT 2 (C140)
L = SETPOINT DOWN ARROW
PB
AUTO/MANUAL OUTPUT
SELECTOR PB
M = DECREASE OUTPUT PB
CONTROLLER LOWER
RANGE (C152)
M = INCREASE OUTPUT PB
M = MANUAL, L = LOCAL
STATUS INDICATORS
CONTROLLER SPAN (C223) +
CONTROLLER LOWER
RANGE (C224)
CON3 ALARM LIMIT 1 (C211)
CON3 ALARM LIMIT 2 (C212)
CONTROLLER LOWER
RANGE (C224)
MODE - ALARM RESET
F3 - SELECTION BLOCK TOGGLE
F2 - PAGE IN LIST OR PAGE FORWARD
F1 - NEXT DISPLAY GROUP OR PAGE BACK
