ABB ControlIT 53MC5000 User Manual

DO0 - PROCESS ALARMS LOOP 1
DO1 - PROCESS ALARMS LOOP 2
AO1 - CONTROL OUTPUT LOOP 2
AO0 - CONTROL OUTPUT LOOP 1
(CONTACT OUTPUT INVERT [L288])
(CONTACT OUTPUT INVERT [L289])
MISCELLANEOUS DATAPOINTS (SHOWN IN
RECTANGLES ON THE DISPLAY)
CONTROL TAGNAME (A000, A002) [CON-0,
CON-1]
ENGINEERING UNITS (A001, A003) [PERCENT]
(NOT SHOWN)
REVERSE VALVE (L109, L133) [C] [O] (NOT
SHOWN)
ALARMS RELATED DATAPOINTS
CONTROL ALARM MODE (B335, B340)
0 - HIGH/LOW
1 - NONE
2 - HIGH/NONE
3 - NONE/LOW
4 - HIGH/HI-HI
5 - LOW/LO-LO
6 - HI SP DEVIATION/LO SP
DEVIATION
ALARM LIMIT 1 (C103, C139)
ALARM LIMIT 2 (C104, C140)
ALARM DEAD BAND (C105, C141)
AO0 - CONTROL OUTPUT LOOP 1 RELATED DATAPOINTS
AO0 0-20 mA OUTPUT (L472)
MANUAL FALLBACK DISABLE (L120)
HARD MANUAL LIMIT (L122)
OUTPUT HIGH LIMIT (C109)
OUTPUT LOW LIMIT (C110)
OUTPUT SLEW RATE (C118)
CON0 CONTROL RELATED DATAPOINTS (SEE SECTION 16,
TUNING, OR SECTION 17, EASY-TUNE, TO TUNE PID DATA-
POINTS)
PROPORTIONAL BAND (C106) (P)
RESET TIME (C107) (I)
RATE TIME (C108) (D)
MANUAL RESET (C111)
REVERSE SWITCH (L106)
AUTO ENABLE (L114)
CONTROLLER SPAN (C115) [100]
CONTROLLER LOWER RANGE (C116) [0]
AO1 - CONTROL OUTPUT LOOP 2 RELATED DATAPOINTS
AO1 0-20 mA OUTPUT (L473)
MANUAL FALLBACK DISABLE (L144)
HARD MANUAL LIMIT (L146)
OUTPUT HIGH LIMIT (C145)
OUTPUT LOW LIMIT (C146)
OUTPUT SLEW RATE (C154)
CON1 CONTROL RELATED DATAPOINTS (SEE SECTION 16, TUN-
ING, OR SECTION 17, EASY-TUNE, TO TUNE PID DATAPOINTS)
PROPORTIONAL BAND (C142) (P)
RESET TIME (C143) (I)
RATE TIME (C144) (D)
MANUAL RESET (C147)
REVERSE SWITCH (L130)
AUTO ENABLE (L138)
CONTROLLER SPAN (C151) [100]
CONTROLLER LOWER RANGE (C152) [0]
DOUBLE DATAPOINTS: (LOOP 1, LOOP 2)
NOTE: BRACKETS [XXXX] CONTAIN DATA SHOWN IN
RECTANGLES ON THE DISPLAY.

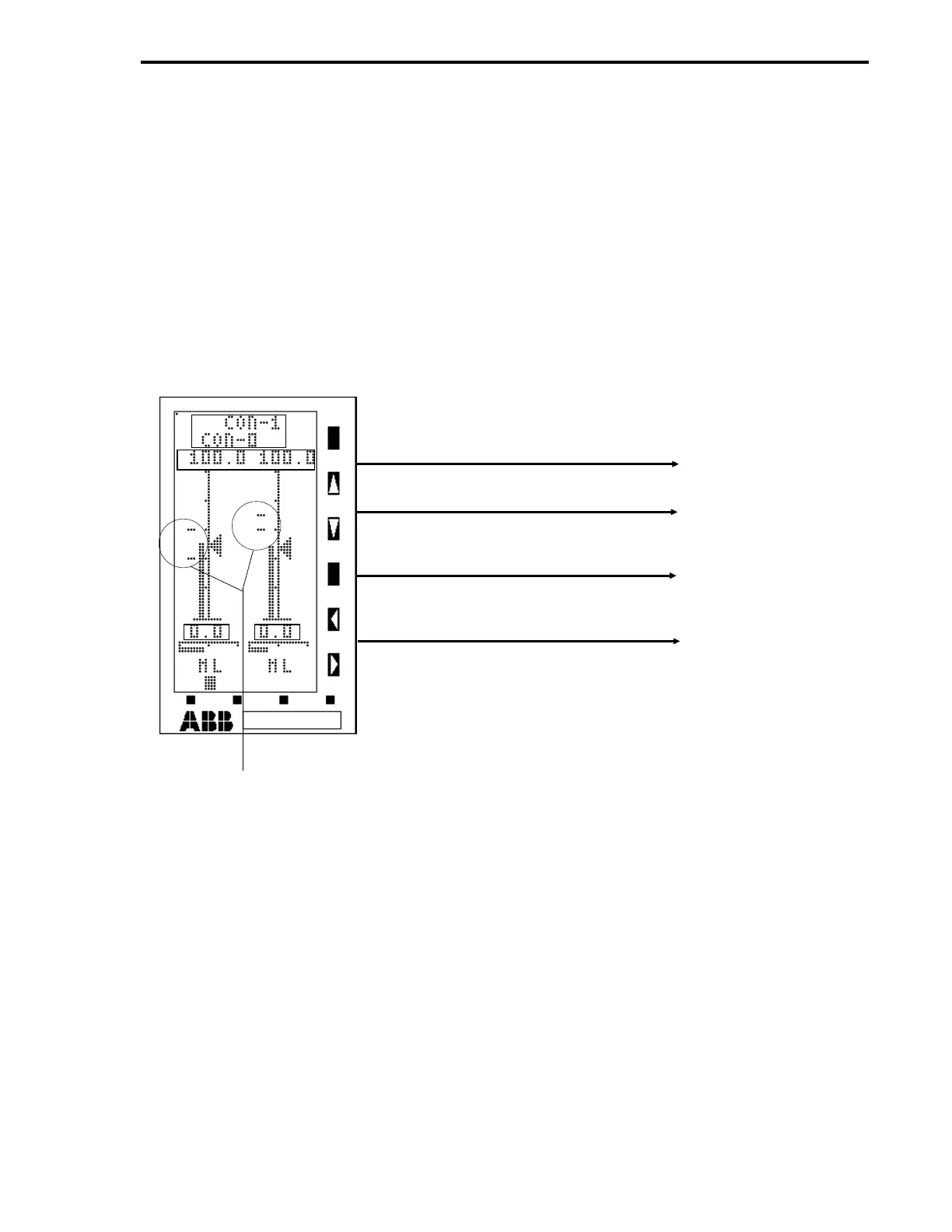

Figure 11-2. CS20 Two Loop Controller Datapoints (Sheet 2 of 2)
Section 11. CS20 - Two Loop Controller
11-5
