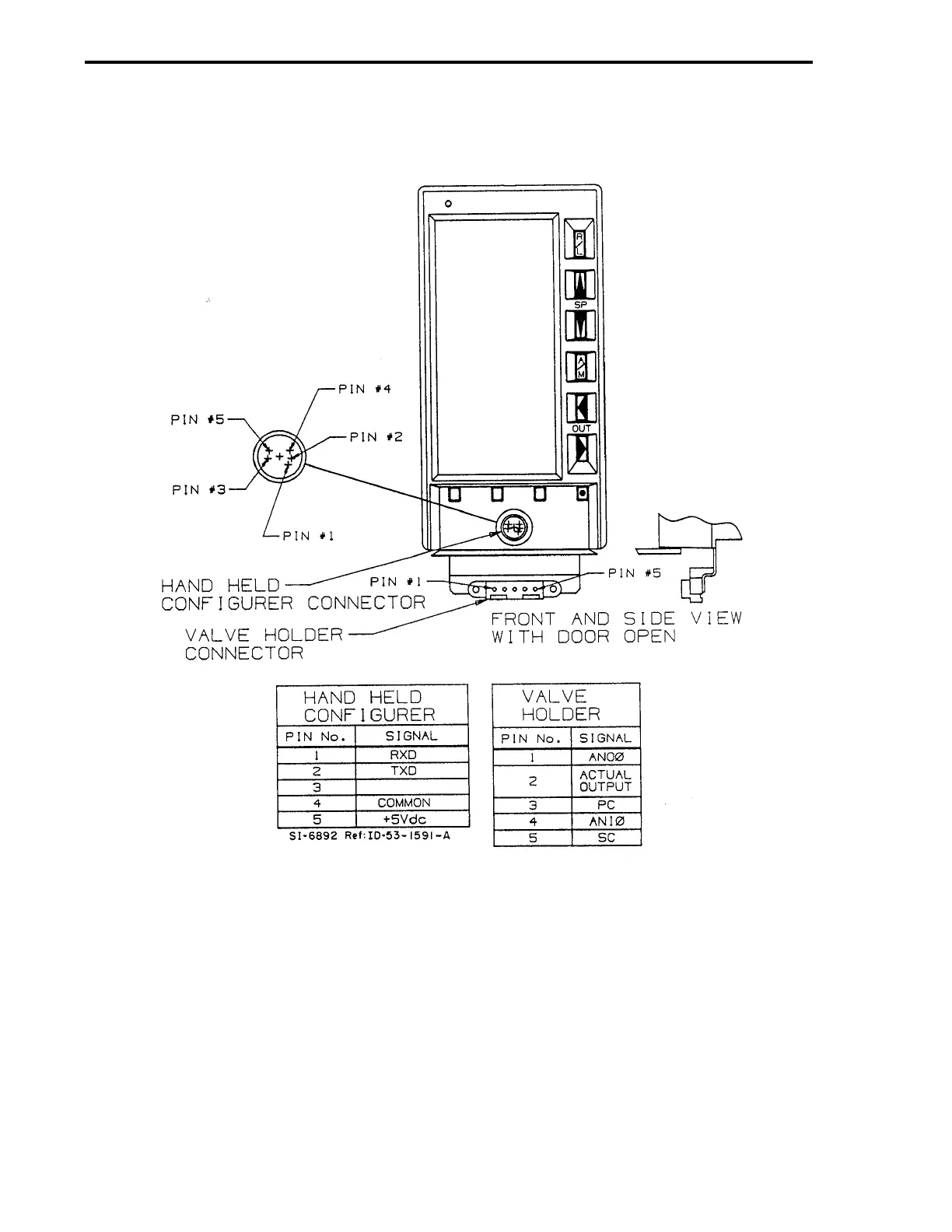

Figure 18-2. Hand Held Configurer and Valve Holder Pin Assignments
NOTES:
1. CONNECT A CURRENT METER BETWEEN PINS 1 AND 2 TO MEASURE AO0 CURRENT.
2. CONNECT A VOLTMETER BETWEEN PINS 4 AND 5 TO MEASURE AI0 VOLTAGE.
3. TO CONTROL THE VALVE FROM A CURRENT SOURCE OTHER THAN THE CONTROLLER,
CONNECT A CURRENT SOURCE (0-20 mA, 0-5 V dc) BETWEEN PINS 1 AND 3.
(ALLOWS CONTROLLER TO BE POWERED DOWN AND REMOVED FROM CASE WHILE
STILL MAINTAINING AO0 VALVE CONTROL FOR PROCESS.)
