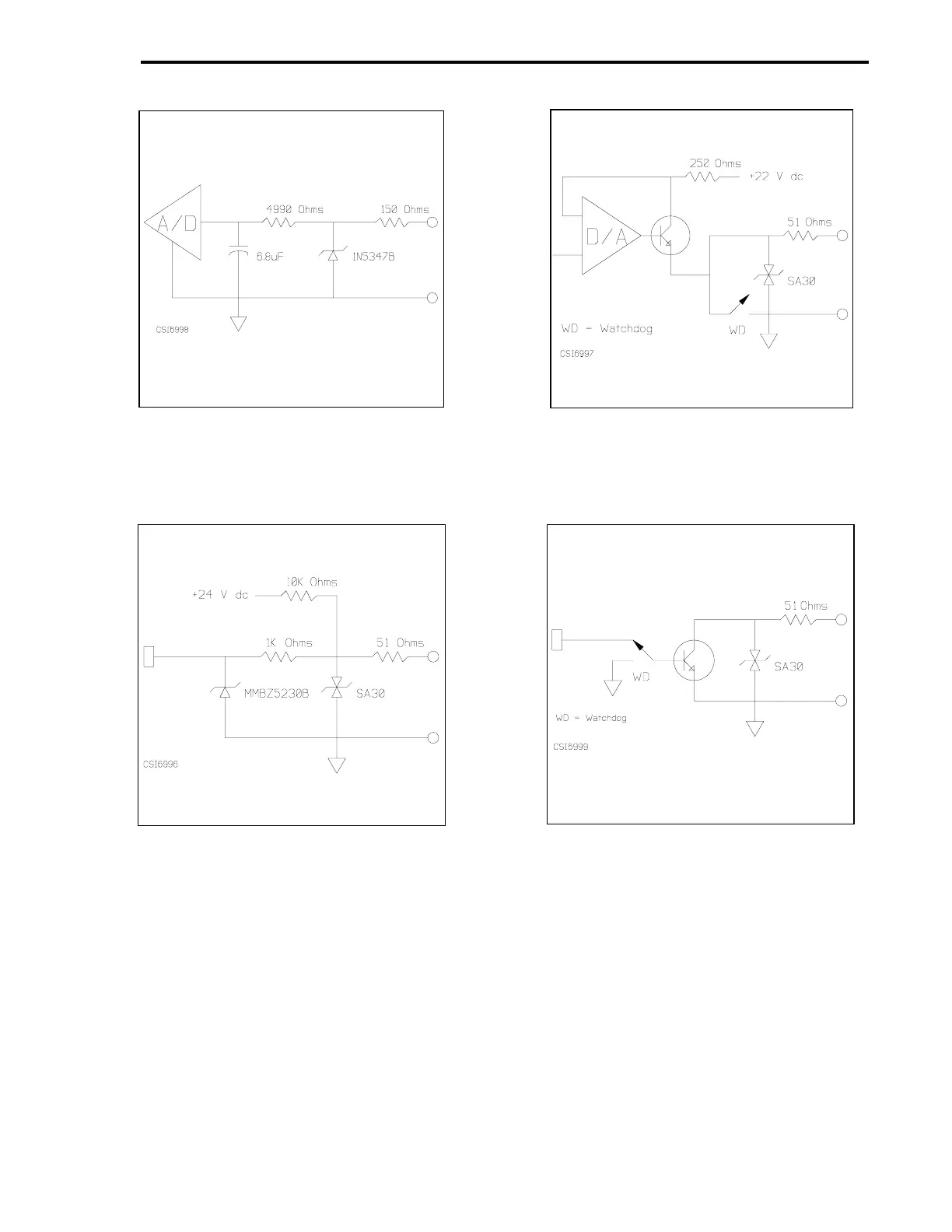

Figure 2-29. AI, AO, DI, and DO Graphical Illustrations
AI AO
DI
DO
Note: The above illustrations are graphical representations of the signal conditioning that occurs
on the controller main board. They are provided for reference purposes only.
Section 2. Installation
2-33
