ABB IRB 1400 - Greasing Axes 5 and 6

3 Maintenance
3.1.2 Greasing axes 5 and 6
54 3HAC021111-001 Revision: B
3.1.2 Greasing axes 5 and 6
Grease is pressed through the 3 nipples (1), see Figure . The tip nozzle of the greasing gun
should be of type Orion 1015063, or equivalent.
Volume: 2 ml (0.00053 US gallon)

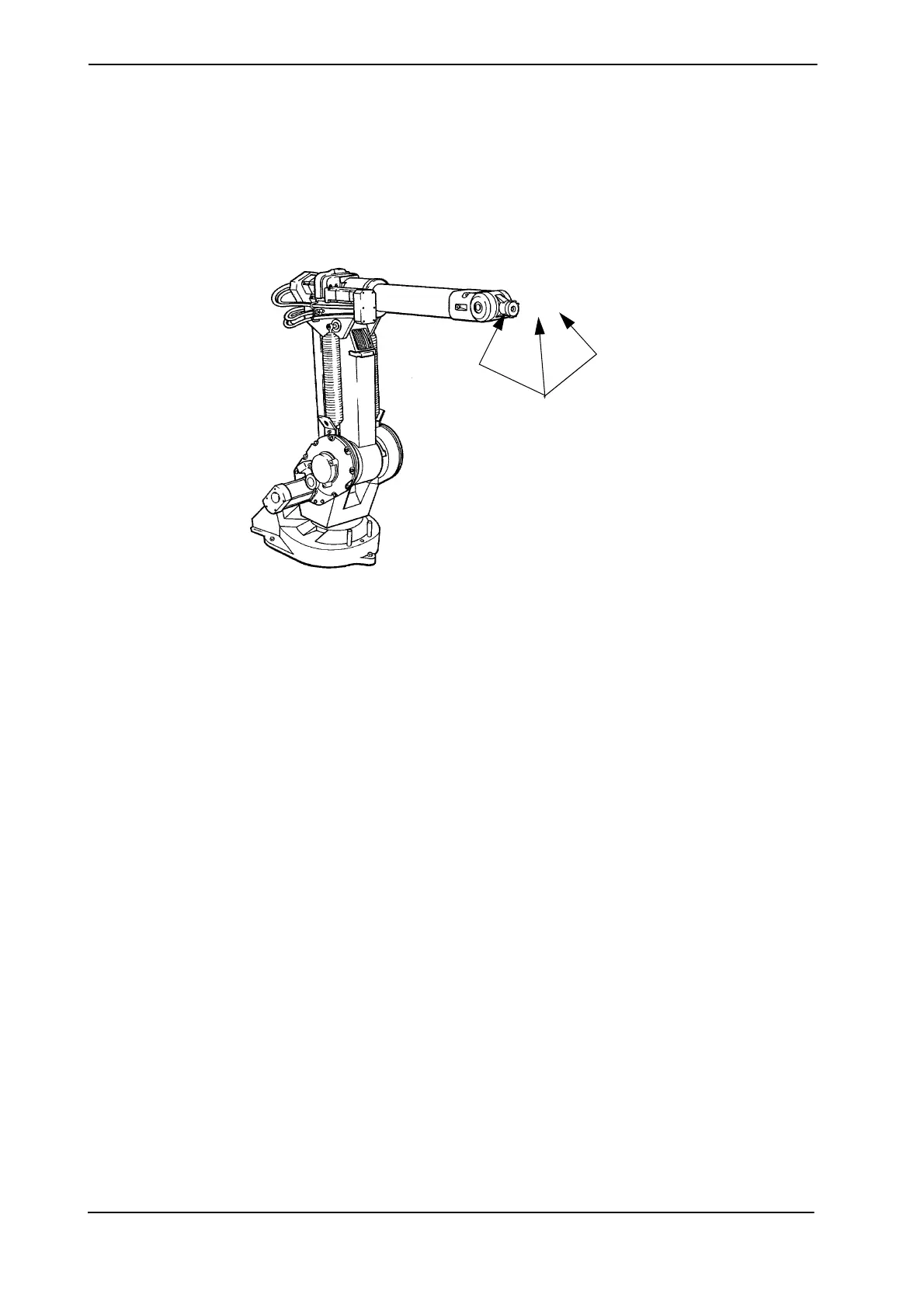

Greasing Positions for Axes 5 and 6.
Type of grease: ABB’s art. No. 3HAB 3537-1, corresponds to:
Shell Alvania WR2
(1)
