4.5.4. Replacement of balancing device (design 1)
3013HAC026876-001 Revision: F
© Copyright 2007-2010 ABB. All rights reserved.

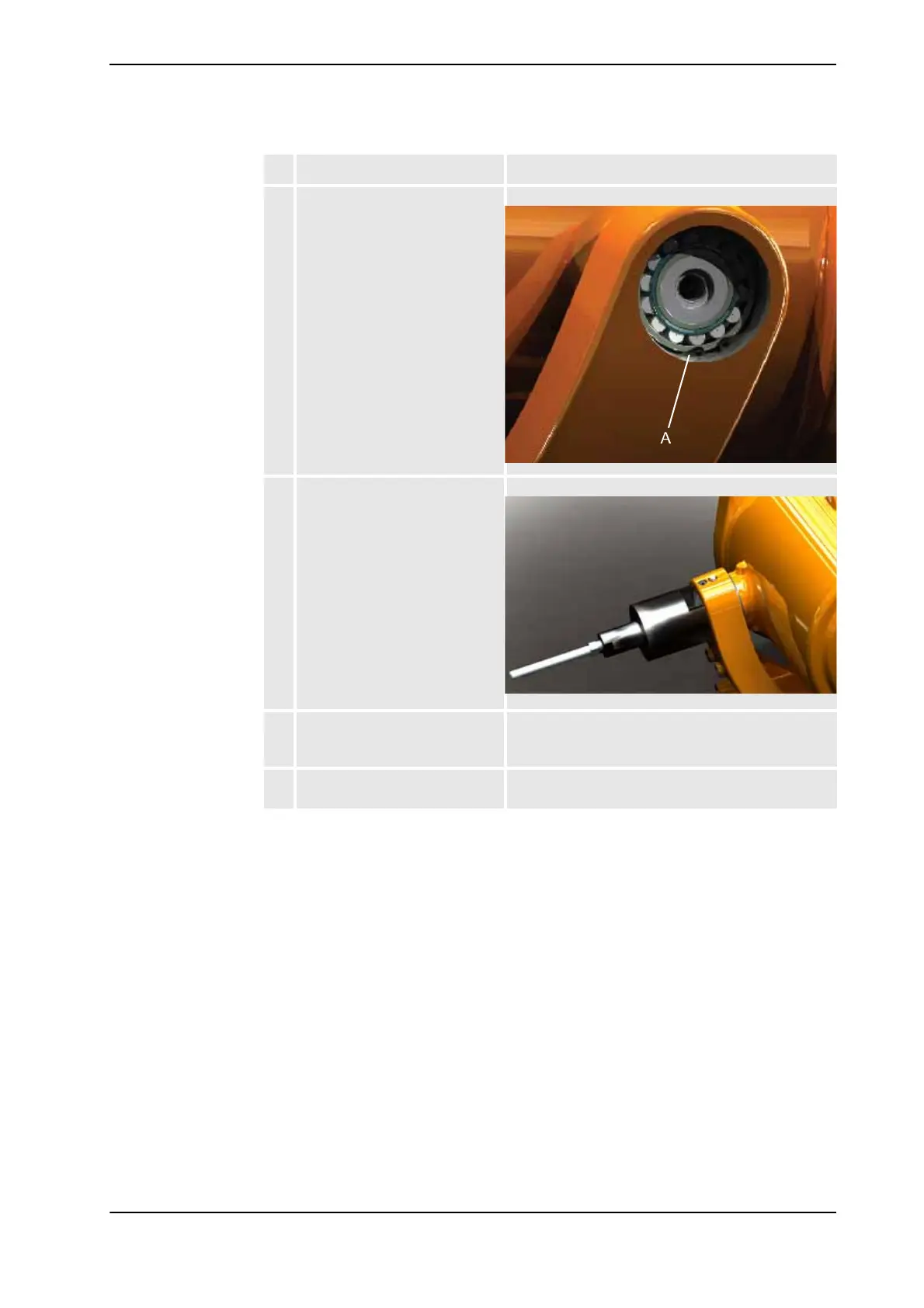

13. Remove the retaining ring, bore
(A) securing the shaft.
xx0900000079
14. Remove both the cradle
bearings and the balancing
device shafts, using the
dismounting and mounting tool
3HAC028920-00.
xx0900000074
15. Perform the following procedure
of pulling out the shafts on both
sides of the cradle.
16. Lift the balancing device gently
backwards to a secure area.
Action Note
Continued
Continues on next page
