ABB IRB 6640 - Complete Robot; Replacement of Cable Harness, Axes 1-6

4 Repair
4.3.1. Replacement of cable harness, axes 1-6
2033HAC026876-001 Revision: F
© Copyright 2007-2010 ABB. All rights reserved.
4.3 Complete robot
4.3.1. Replacement of cable harness, axes 1-6
General
This section details how to replace the cable harness that runs undivided from axis 1 to axis 6.
Replacement or cable harness for Foundry Prime
For replacement of cable harness on robots with option Foundry Prime, see Replacement of
cable harness, axis 1-6 - Option Foundry Prime, 3HAC037959-005 (available on ABB
Library).
Location of cable harness

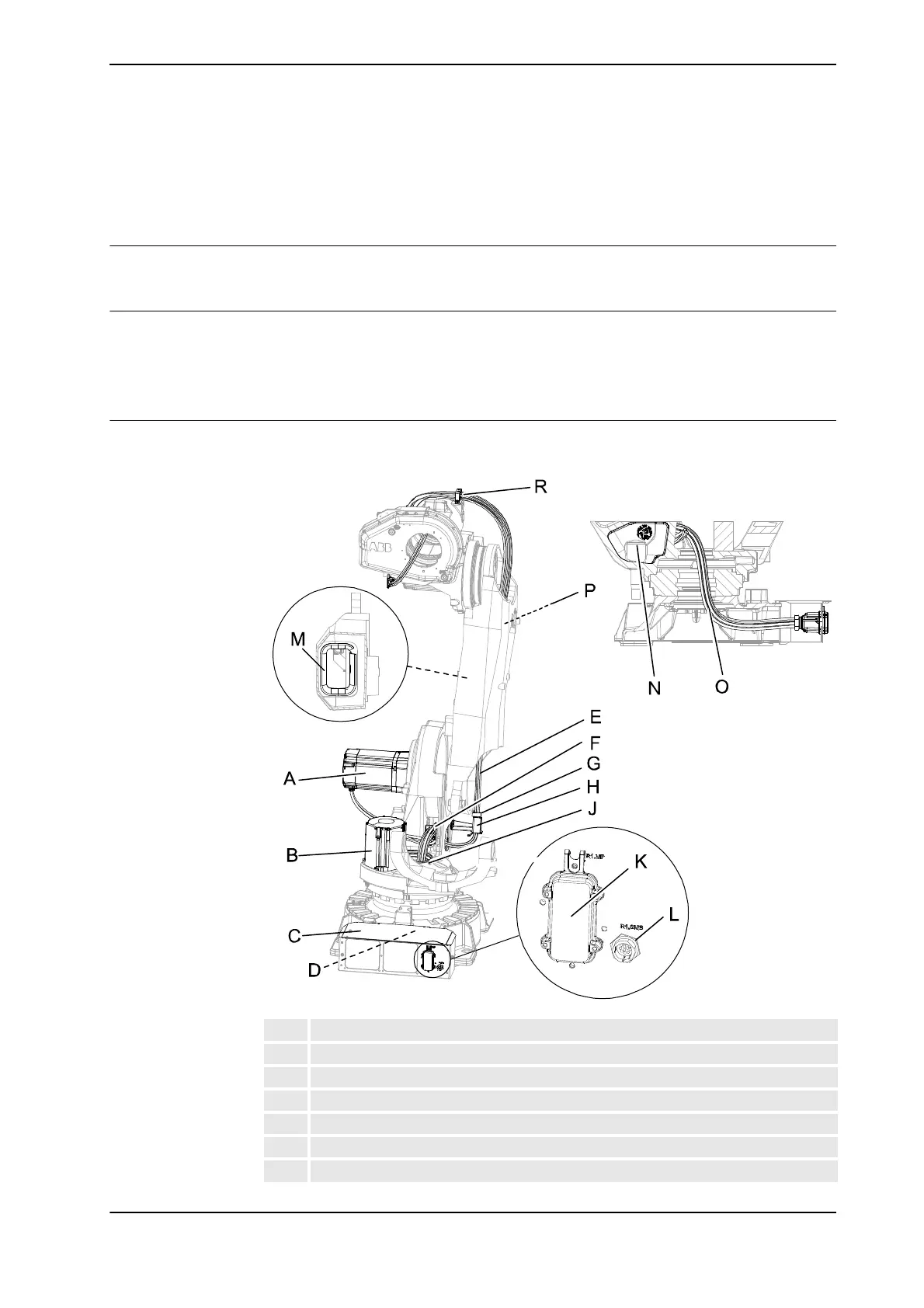

The cable harness of axes 1-6 is run throughout the robot as shown in the figure below.
xx0700000102
A Connectors at motor, axis 2 (R2.FB2, R2.MP2)
B Connectors at motor, axis 1 (R2.FB1, R2.MP1)
C Rear cover plate
D Earth (attachment point is placed under the cover plate)
E Cable harness
F Cable holder
G Velcro strap
Continues on next page
