7 Reference information
7.8. Dismounting and mounting tool 3HAC028920-001
4233HAC026876-001 Revision: F
© Copyright 2007-2010 ABB. All rights reserved.
Alternative con-
figuration:
•H
•A
•1
•F
•4
xx0900000040

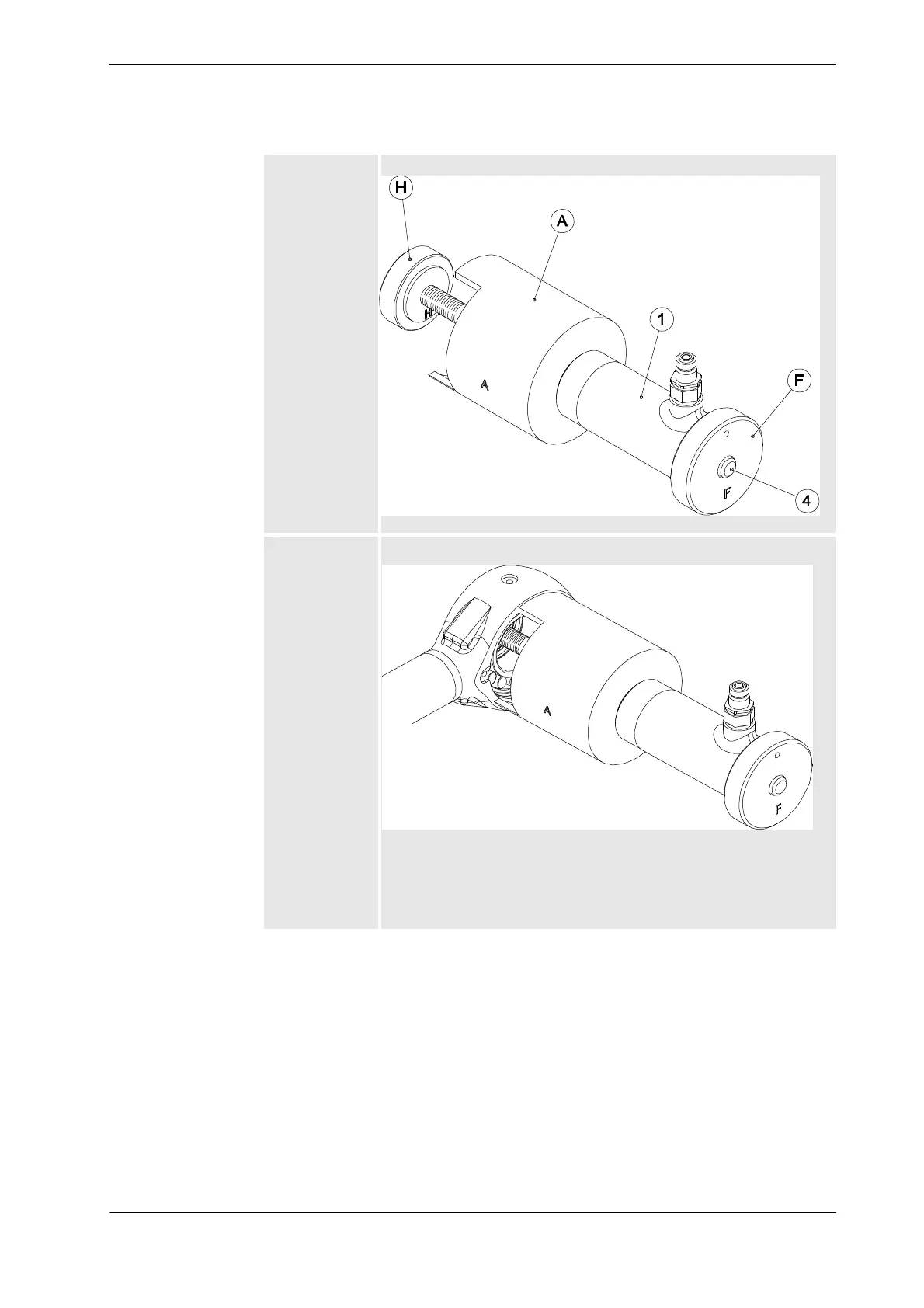

1) Assemble the
press tool D=62
(H) onto the
threaded bar (4).
2) Assemble the
threaded bar,
M16 with the
press tool
through the
assembled
bearing.
3) Assemble the
Press tool D=103
(A) on to the
threaded bar,
M16.
4) Assemble the
hydraulic press
(1).
5) Assemble the
Knurled nut
D=80 (F).
xx0900000041
Continued
