NoteAction
DANGER
Make sure that the ball screw is supported with
something.
The sudden drop of the ball screw due the lost of
the axis-3 motor may cause danger.
2
Remove the axis-3 timing belt.3

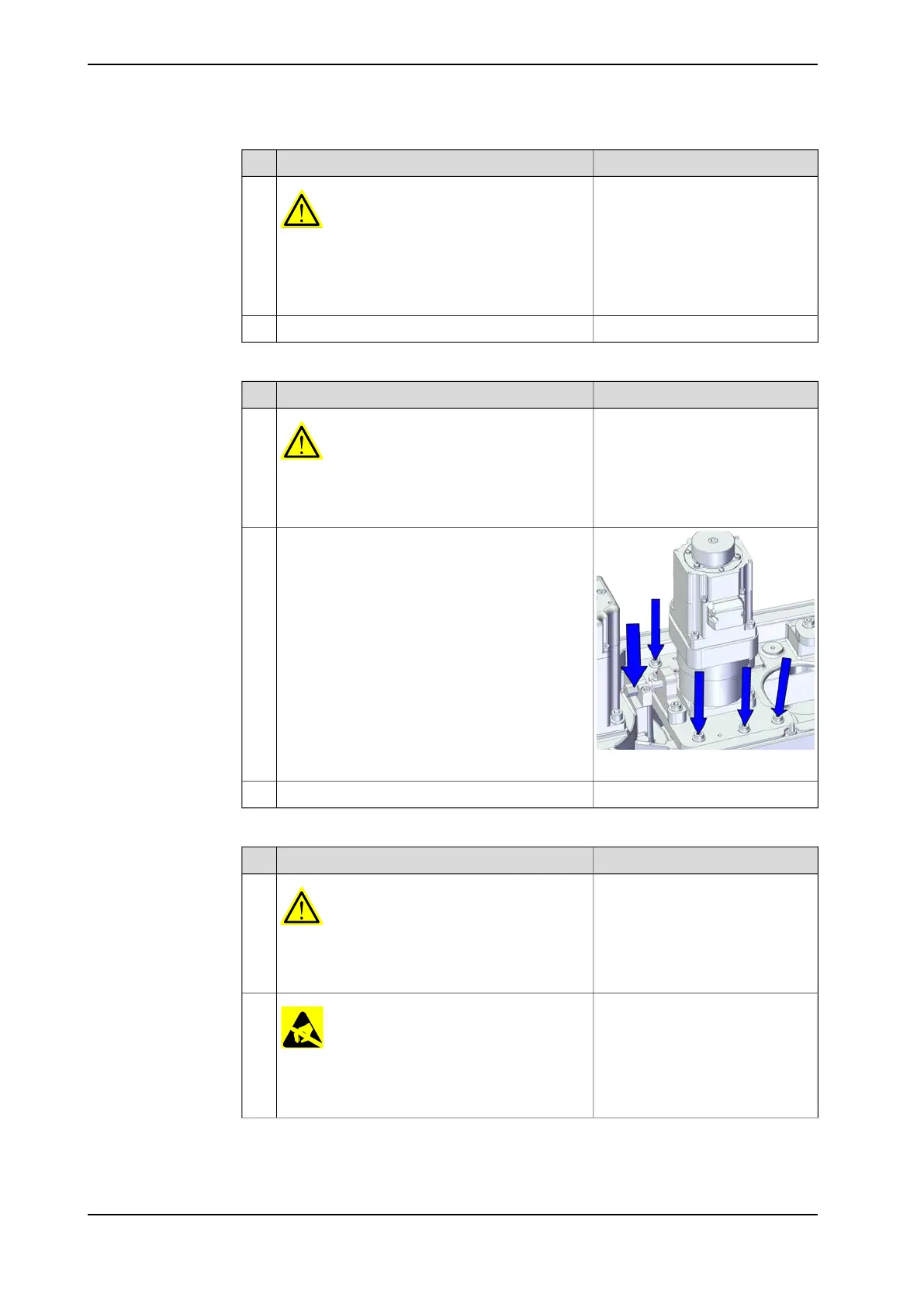

Removing the axis-4 timing belt
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2300000558
Loosen the screws of the axis-4 motor sub-as-
sembly to let the axis-4 timing belt be free.
2
Remove the timing belt.3
Removing the pulley on the ball screw lower position
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit read the safety information in section The
unit is sensitive to ESD on page 46.
2
