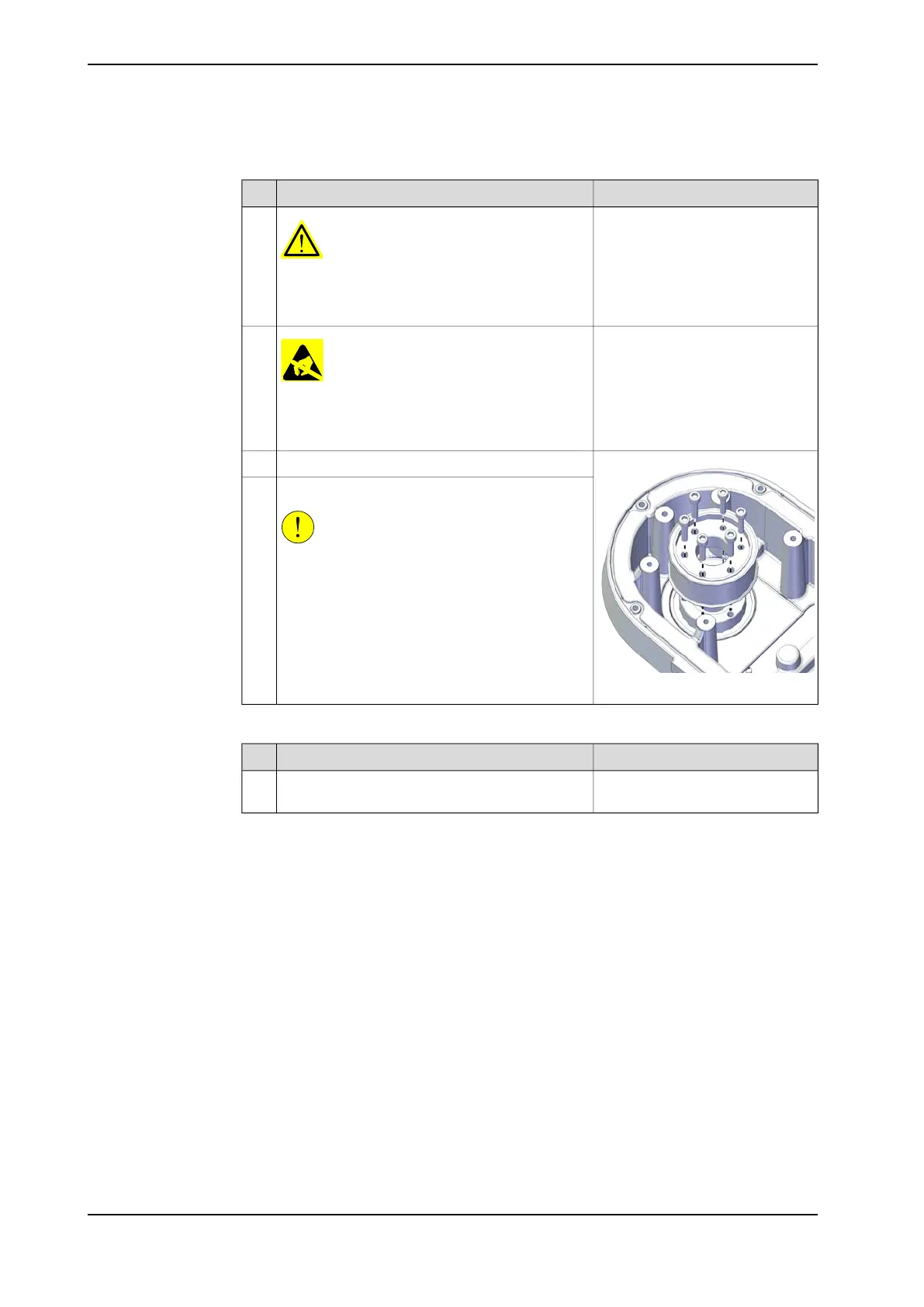

Removing the pulley on the ball screw lower position
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit read the safety information in section The
unit is sensitive to ESD on page 46.
2
xx2300000567
Remove the screws and washers.3
Remove the pulley carefully.
CAUTION
If the ball screw nut or ball screw spline nut go
out of the screw shaft, the ball screw is destroyed.
Be careful when you do any work that may cause
this.
4
Placing the axis-3 and axis-4 timing belts into the outer arm
NoteAction
Place the axis-3 and axis-4 timing belts into the
outer arm.
1
Continues on next page
406 Product manual - IRB 930
3HAC086009-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.6.8 Replacing the outer arm
Continued
