The following parameters can be set:
• Filter settings
See Table 3-2.
• High Tension (N, kN, kg, lbs, N/m, kN/m, kg/m, pli), (factory default = 2000 N)
• High Output, (factory default = +10 V or 20 mA)
• Low Tension (N, kN, kg, lbs, N/m, kN/m, kg/m, pli), (factory default = 0 N)
• Low Output, (factory default = 0 V or 4 mA)
• High Limit, (factory default = +11 V or 21 mA)
• Low Limit, (factory default = -5 V or 0 mA)

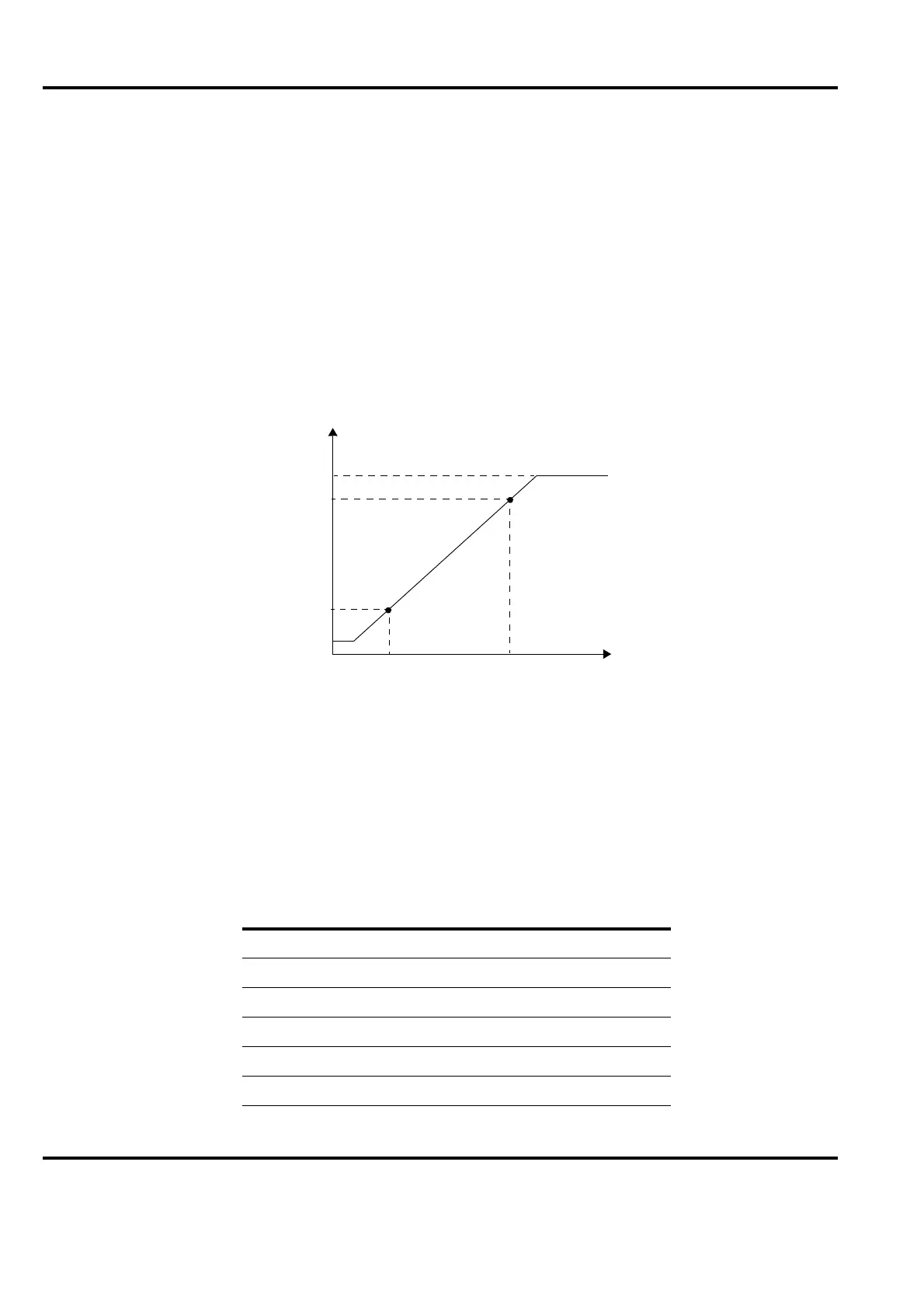

Figure 3-18. Parameter Definitions
Filtering may be used if the voltage or current output signal is too fast or if roll imbalance needs
to be compensated.
The filters are of type linear phase, maximum flat, 20 dB/decade.
Table 3-2. Filter settings
Step Response time 0 - 90% Cut-off frequency –3dB
15 ms 35 Hz
30 ms 15 Hz
75 ms 5 Hz
250 ms 1.5 Hz
750 ms 0.5 Hz
1500 ms 0.25 Hz
Web Tension
N, kN, kg, lbs,
Analog Output 1-6 [V or mA]
High Limit
High Output
Low Output
Low Limit
Low Tension
High Tension
N/m, kN/m, kg/m, pli
