Emax E2.2-E4.2-E6.2 circuit-breakers | 3 - Unpacking and handling
3 - Unpacking and handling
Opening the packaging
NOTE: to unpack the circuit-breaker safely refer to the instruction sheet in the zipped
packaging pouch.
The following is the procedure for opening the packaging:

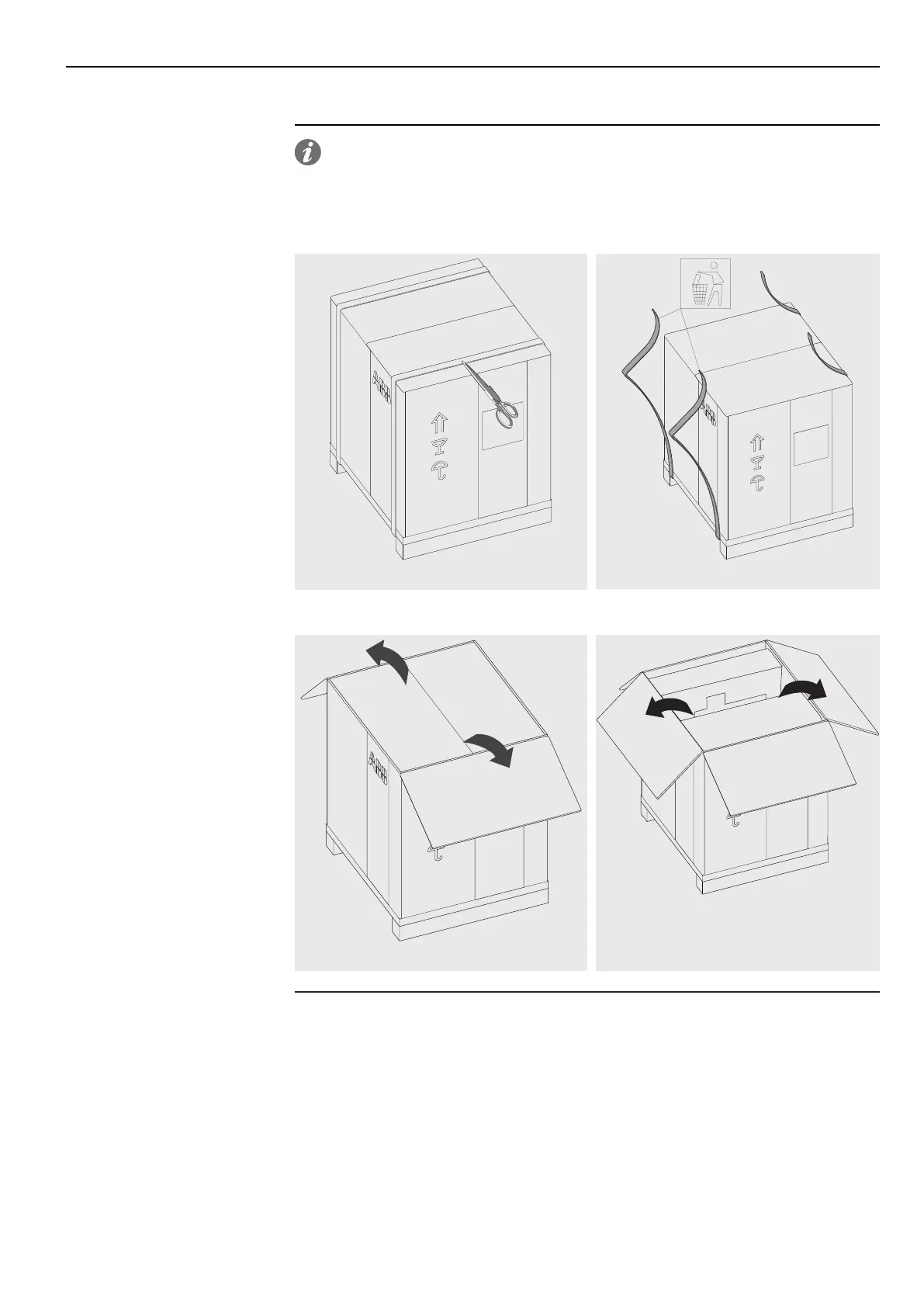

1. Cut the bands that wrap the packing box. See Figure 6 and Figure 7.
Figure 6
Figure 7
2. Open the upper part of the packing box. See Figure 8 and Figure 9.
Figure 8
Figure 9
Continued on the next page

ABB SACE Emax 2 Series Specifications

General

Breaking capacity	Up to 150kA
Number of poles	3 or 4 poles
Communication protocols	Modbus, Profibus
Standards	IEC 60947-2
Type	Air circuit breaker
Mounting	Fixed, Withdrawable
