ABB | SACE Emax 2
12 | © 2013 ABB | 1SDH001000R0002 - L7804
Emax E2.2-E4.2-E6.2 circuit-breakers | 3 - Unpacking and handling
Weight of circuit-breakers
without packaging
The following table specifies the weights of the circuit-breakers without packaging:
Fixed
Moving part of
withdrawable device
Fixed part of
withdrawable device
III IV Fs III IV Fs III IV Fs
E2.2 41 53 48 55 36 44
E4.2 56 70 60 74 50 62
E6.2 109 125 140 120 134 148 87 100 112
NOTE:
• the weights indicated in the table refer to the basic circuit-breakers including relays
and its sensors, without terminals and without accessories.
• the weights of the withdrawable circuit-breakers refer to the weight of the fixed part
in a version with horizontal rear terminals.
Lift the fixed circuit breaker
or the moving part of a
withdrawable circuit-breaker
WARNING! Improper lifting can result in death, serious injury to persons and
damage to the equipment. Never lift a circuit-breaker and / or a fixed part
above other people.
IMPORTANT: The trained personnel in charge of handling and lifting must use
appropriate safety equipment.

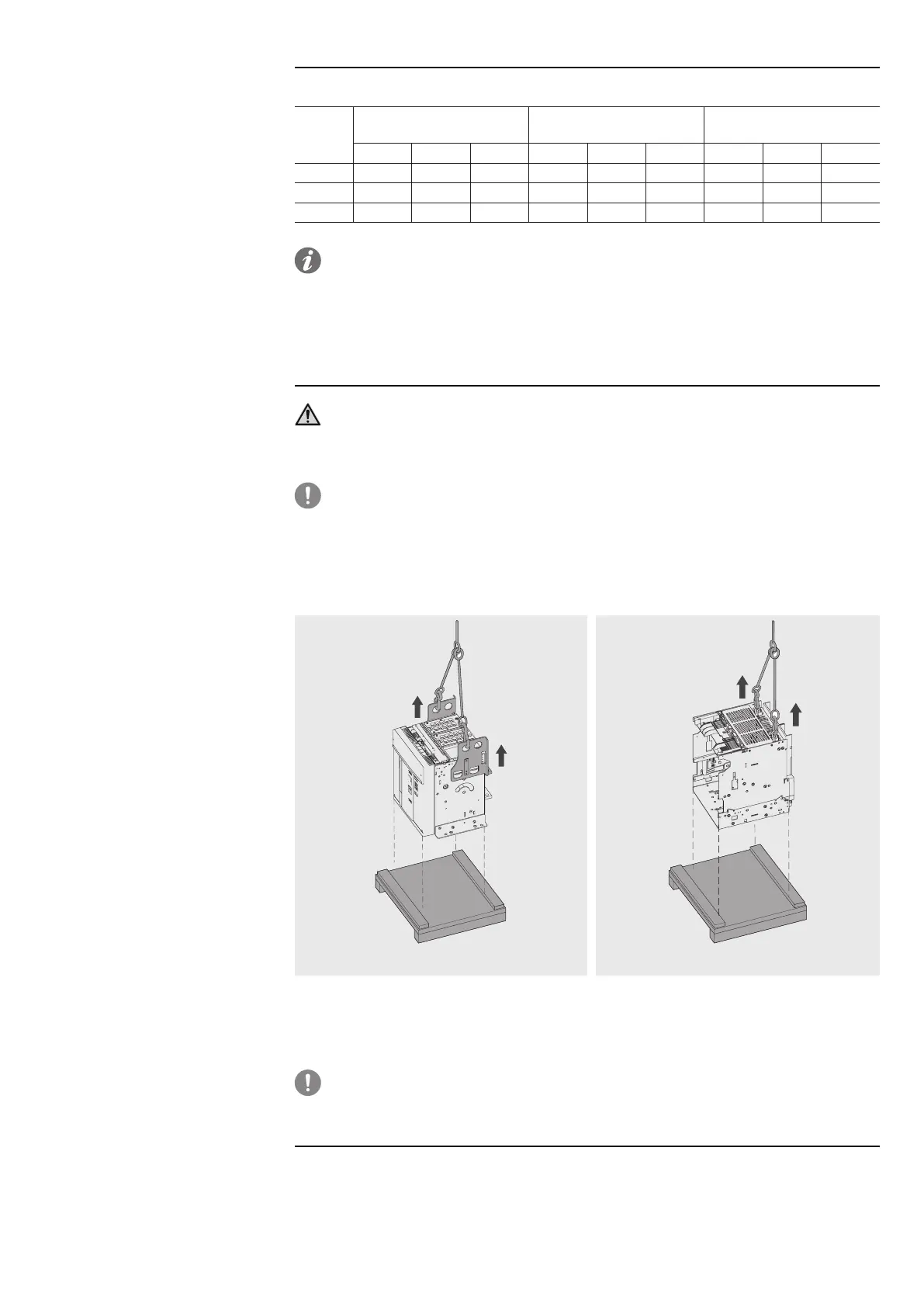

To lift the circuit-breaker:
1. Raise the circuit-breaker from the base of the packaging with the aid of the lifting plates
supplied with the circuit-breaker. See Figure 15.
Figure 15
Figure 16
To raise the fixed part of the circuit-breaker
1. Raise the fixed part from the base of the packaging with the aid of the two hooks
supplied with the fixed part. See Figure 16.
IMPORTANT: keep the lifting plates for the circuit breaker, the lifting hooks
of the fixed part and the manual of the circuit-breaker until disposal.
