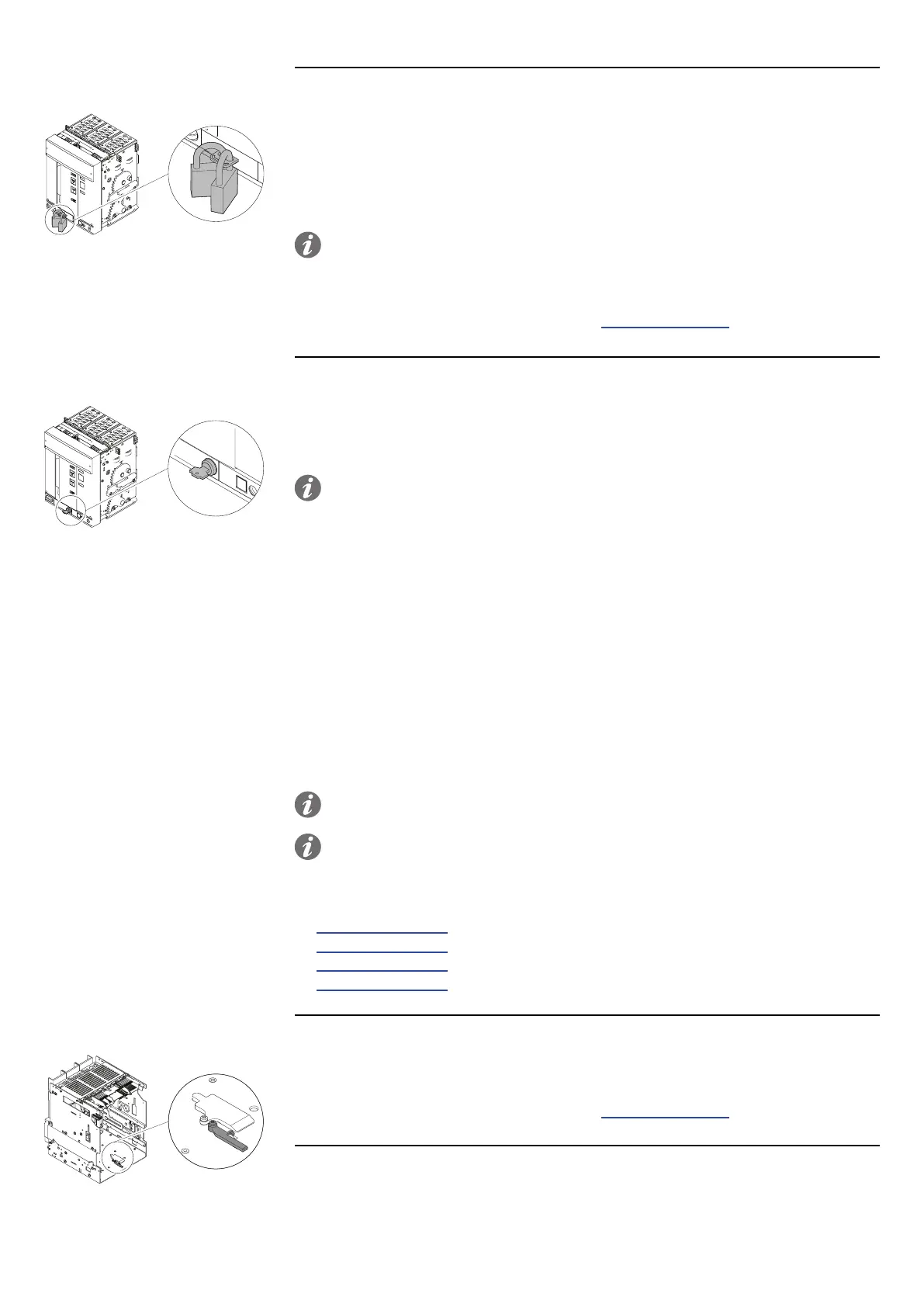

PLP: padlock in connected/
test/disconnected positions
The PLP lock locks the moving part of a withdrawable circuit-breaker in the fixed part, in one
of the following positions:
• connected
• test
• withdrawn
Only one type is available that allows you to mount up to three padlocks with a diameter of 8
mm.
NOTE: The PLP lock can also be supplied in the presence of a "KLP lock in disconnected
position".
Information on the assembly is available from the web site http://www.abb.com/abblibrary/
DownloadCenter/, in particular with the kit sheet 1SDH001000R0707.
KLP: key lock for connected/
test/disconnected positions
The KLP lock for connected/test/disconnected position locks the moving part of a withdrawable
circuit-breaker in the fixed part, in one of the following positions:
• connected
• test
• withdrawn
NOTE: it is possible to lock the moving part in the disconnected position only by
using the additional accessory "KLP lock for disconnected position".
The KLP lock for connected/test/disconnected positions is available with two types of lock:
• lock with different key code numbers (for an individual circuit-breaker).
• lock with the same key code number (for more than one circuit-breaker). The maximum
number of key code numbers available is five.
Through an appropriate setup, the KLP lock for connected/test/disconnected positions can
work with three other types of lock:
• Ronis
• Profalux
• Kirk
• Castell
The maximum number of locks that can be installed per circuit-breaker is the two, for all types
of lock.
NOTE: the supply of Ronis - Profalux - Kirk locks is at customer's expense.
NOTE: The KLP lock can also be supplied in the presence of a PLP lock
Information on assembly is available at the web site http://www.abb.com/abblibrary/
DownloadCenter/, in particular with the sheets kit:
• 1SDH001000R0704 for key locks with lock supplied by ABB;
• 1SDH001000R0726 for key locks with lock supplied by ABB;
• 1SDH001000R0705 for the key locks with pre-engineering for Ronis - Profalux - Kirk locks;
• 1SDH001000R0719 for the key locks with pre-engineering for Castell locks;
KLP lock additional accessory
This additional accessory limits the locking function to the disconnected position only.
Information on the assembly is available from the web site http://www.abb.com/abblibrary/
DownloadCenter/, in particular with the kit sheet 1SDH001000R0727.
