ABB SACE Emax 2 Series Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Emax E2.2-E4.2-E6.2 circuit-breakers | 4 - Description
21 | © 2013 ABB | 1SDH001000R0002 - L7804

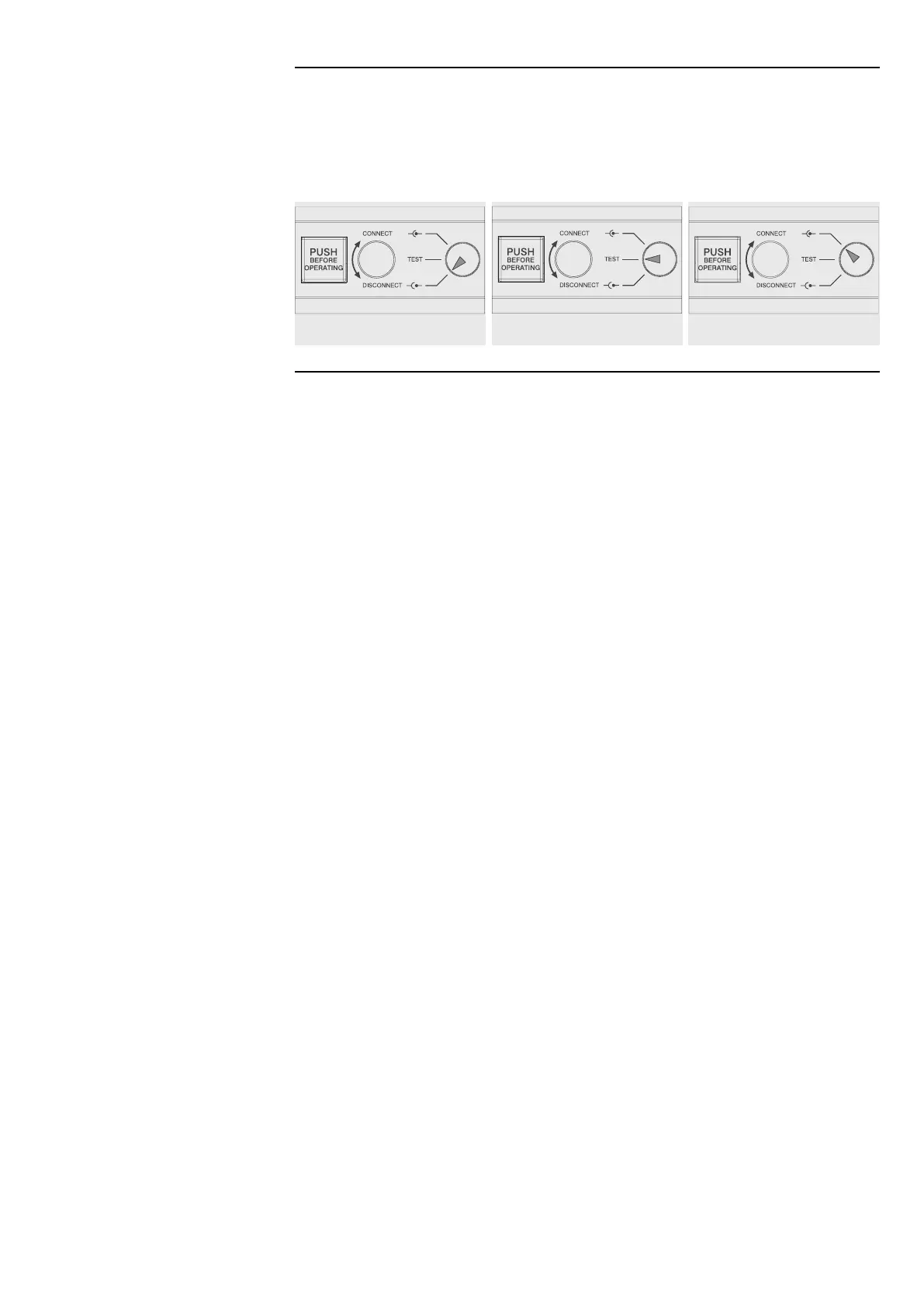

Mechanical position indicators
The following are the possible positions where you can find the mobile part of a withdrawable
circuit-breaker during its use:
• circuit breaker in racked-out position (see Figure 46)
• circuit-breaker in the test position (see Figure 47)
• circuit-breaker in connected position (see Figure 48)
Figure 46 Figure 47 Figure 48

ABB SACE Emax 2 Series Specifications

General

Breaking capacity	Up to 150kA
Number of poles	3 or 4 poles
Communication protocols	Modbus, Profibus
Standards	IEC 60947-2
Type	Air circuit breaker
Mounting	Fixed, Withdrawable
