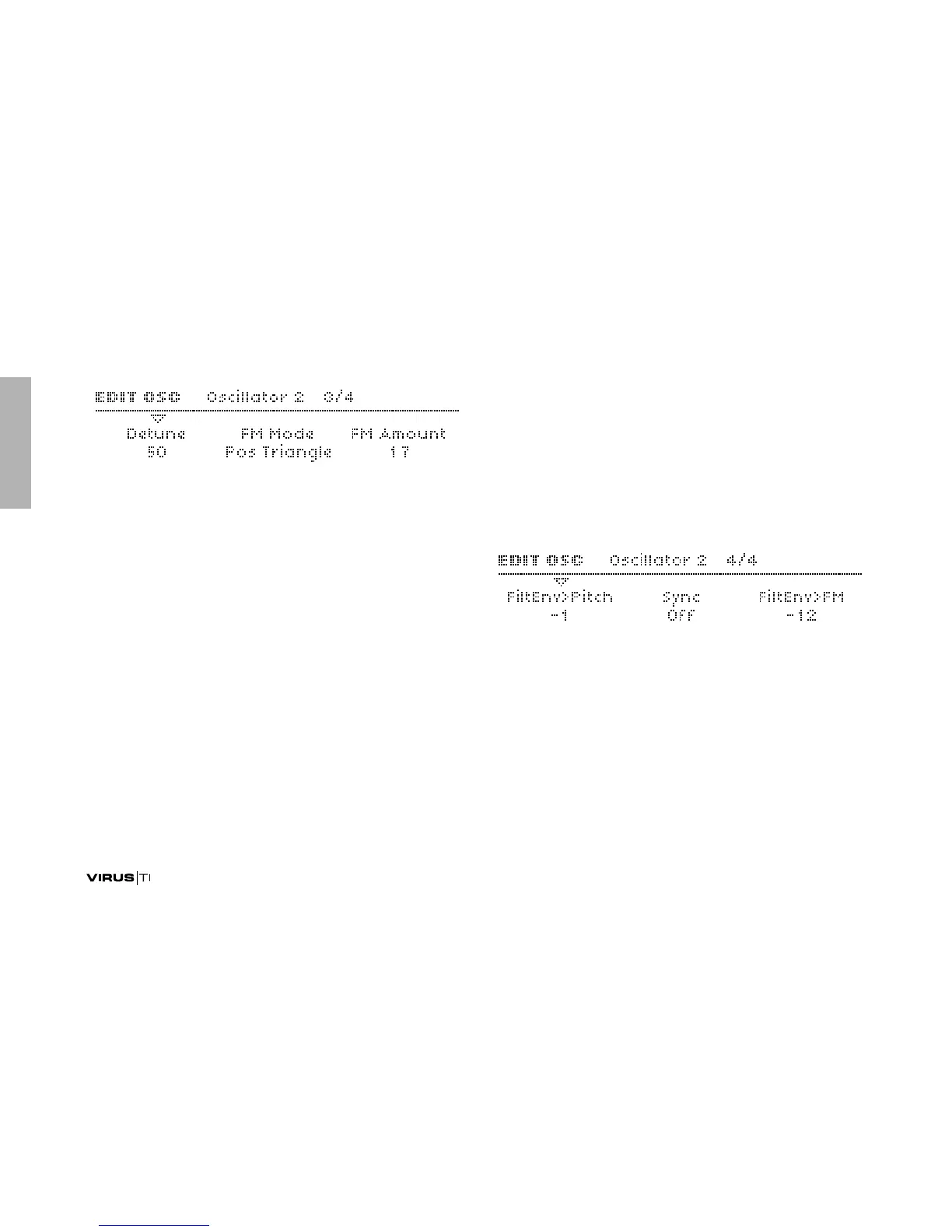

Detune
Accessible from the panel via the DETUNE 2/3 knob when
oscillator 1 or 2 is selected.
> 0 to 127: Fine-tunes oscillator 2 upwards. Modulation desti-
nation “Osc2 Detune“.
FM Mode
Specifies the source of FM modulation:
>Pos Triangle: Unipolar triangle wave from oscillator 1.
>Triangle: Bipolar triangle wave from oscillator 1.
> Wave: The selected wave from oscillator 1 (see “Wave
Select or Pulse Width” on page 111).
>Noise: The Noise signal.
> In L, In L+R, In R: One or both of the Audio inputs (see rear
panel).
FM Amount
Accessible from the panel via FM AMOUNT.
> 0 to 127: The intensity of frequency modulation. Modulation
destination “FM/HyperSync“.
FiltEnv>Pitch
> -64 to +63: How much the filter envelope modulates the
pitch of oscillator 2. This was implemented in previous Virus
models to facilitate sync sweeps, and has been retained for
compatibility reasons.
Modulation destination “FiltEnv>Osc2 Pitch“.
Sync
Accessible from the panel via the SYNC button.
