5-39 Service and Maintenance
3. Connect the touchpad cable connector to the mainboard connector.
TIP: Push the connector clips down, then connect the touchpad cable connector with the “MB”
label side up, then push the connector clips up to lock.

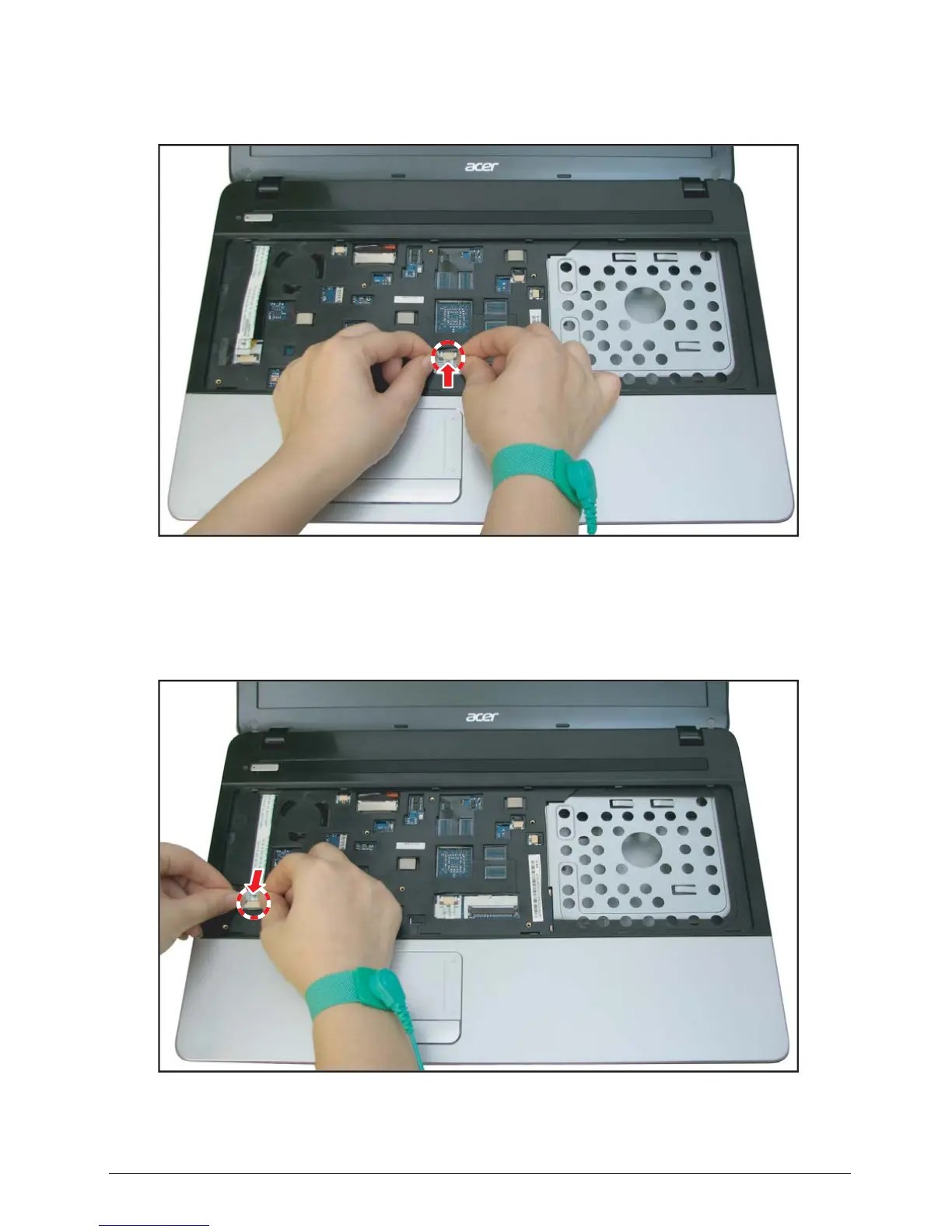

Figure 5:53. Connecting the Touchpad Cable
4. Connect the power board cable connector to the mainboard connector.
TIP: Push the connector clips up, then connect the power board cable connector with the “MB”
label side up, then push the connector clips down to lock.
Figure 5:54. Installing the Upper Case
