Service and Maintenance 5-40
5. Attach the 21 screws to secure the upper case and the lower case.

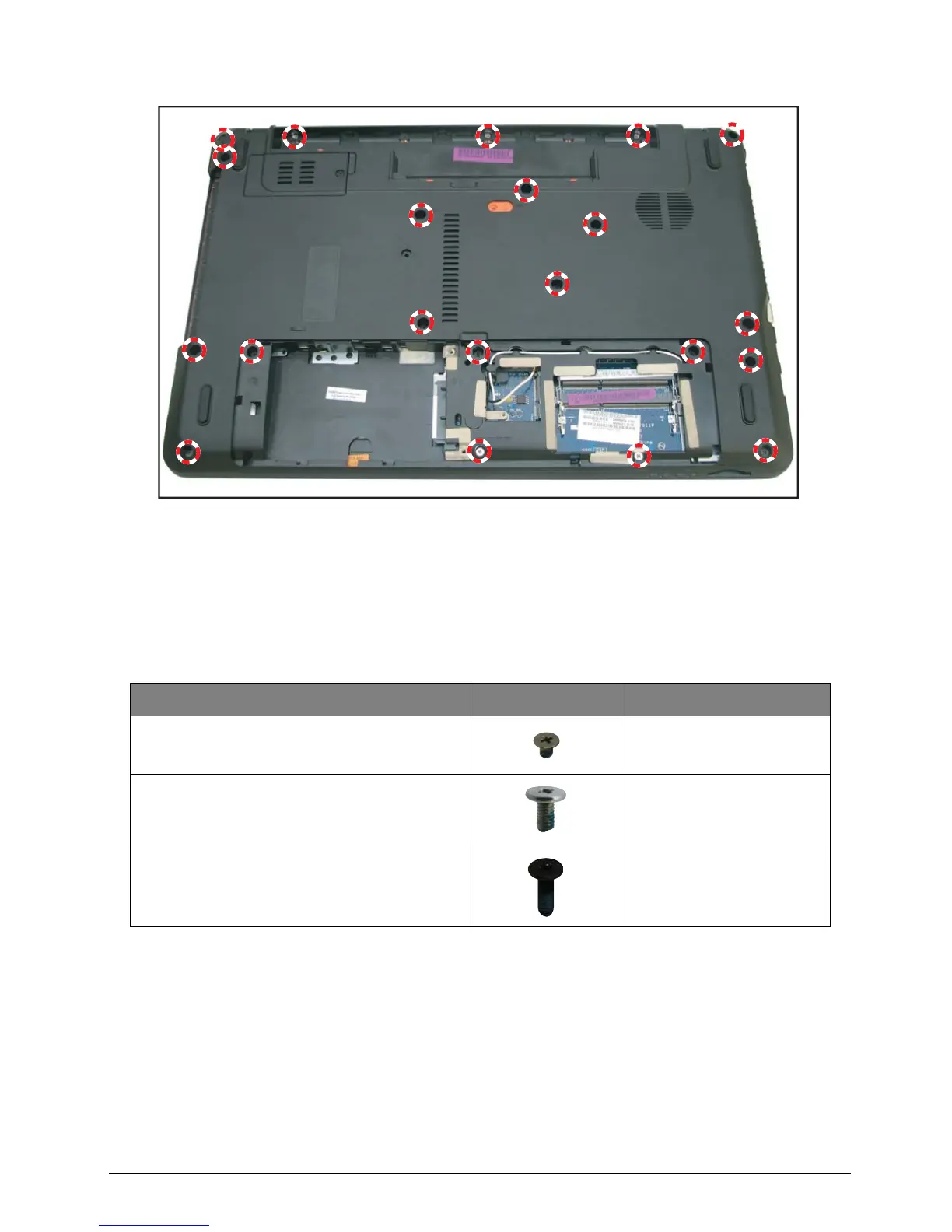

Figure 5:55. Attaching the Upper and Lower Case Screws
6. Install the keyboard (see Keyboard Installation on page 5-32).
7. Install the base door (see Base Door Installation on page 5-13).
Table 5:6. Upper and Lower Case Screws
Screw Name Screw Type Quantity
M 2.0 x 2.5 3
M 2.5 x 5.0 2
M 2.5 x 8.0 16
