Service and Maintenance 5-80

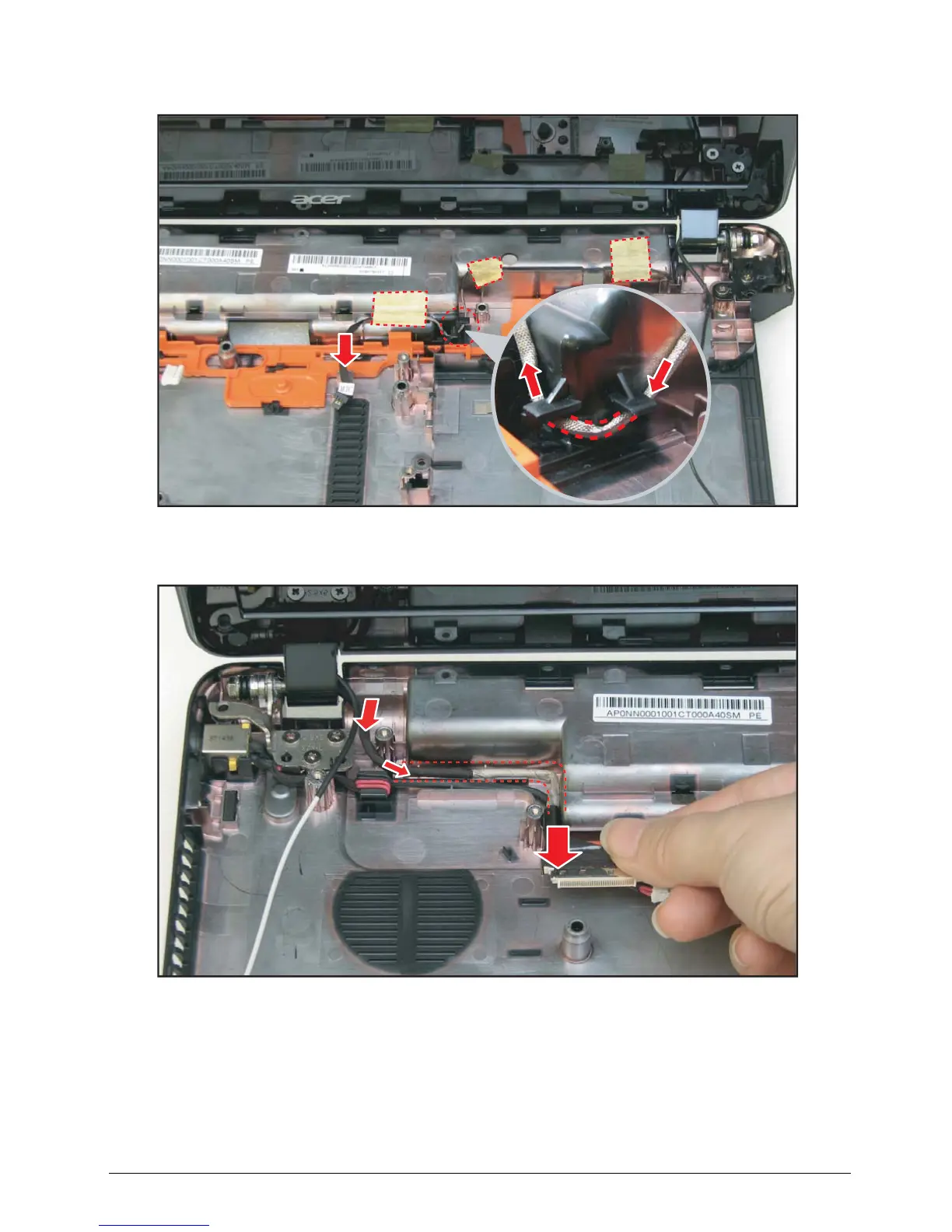

3. Route the microphone cable through the guides and attach the adhesive tapes to secure the
cable in place.
Figure 5:120. Routing the Microphone Cable
4. Route the LVDS cable through the guides.
Figure 5:121. Routing the LVDS Cable
