Acer P7280 Refresh - Setup Procedure

P7270I/P7280/P7270I Refresh/P7280 Refresh Condential
6-3
6-3 Setup Procedure
(VGA1,VGA2,DVI)

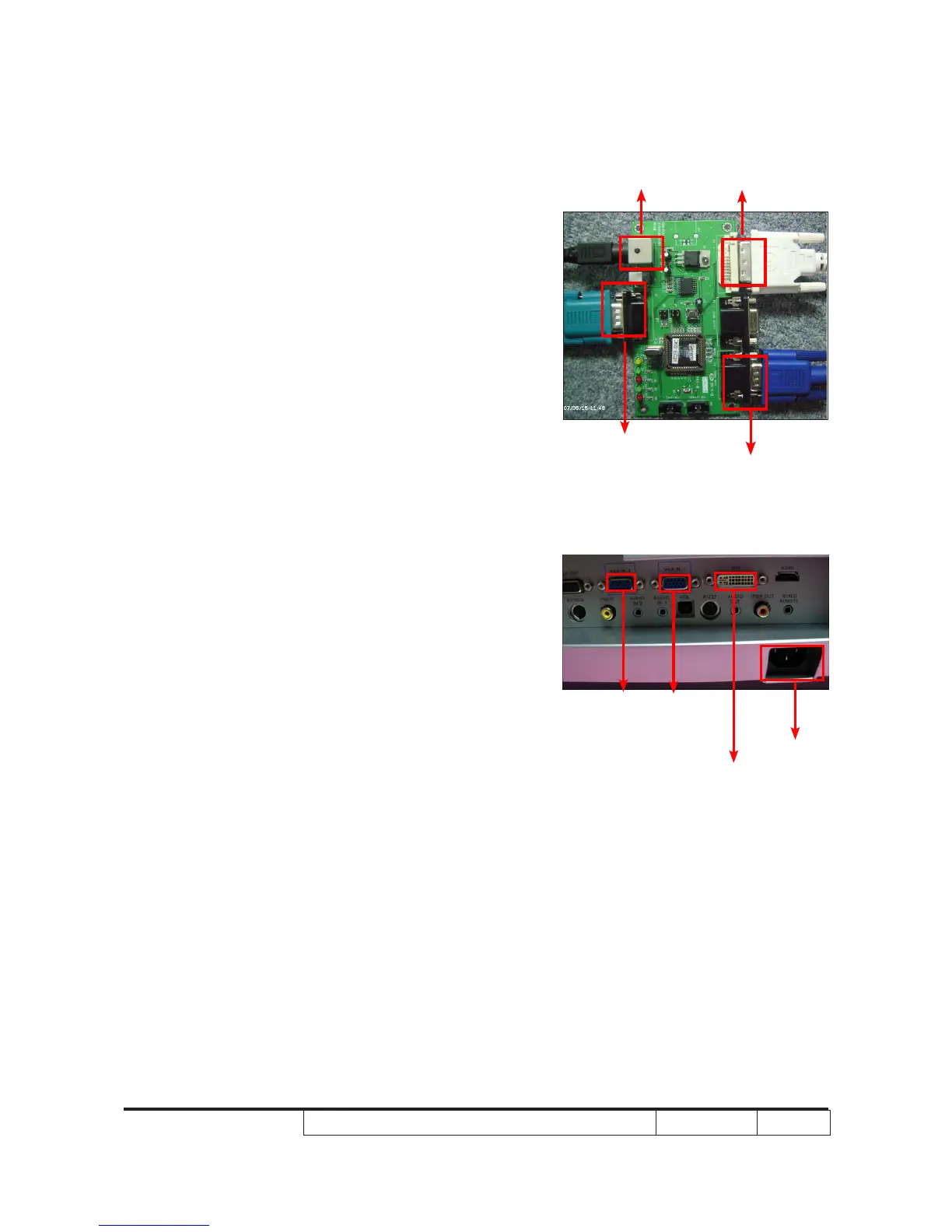

1. Connect all ports
(1) Connect P1 of Fixture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P2 of Fixture with VGA port of
P7270I by VGA Cable.
(3) Connect P3 of Fixture with DVI port of
P7270I by DVI Cable.
(4) Plug Power Adapter to Power CNN.
(5) Plug Power Cord to P7270I unit.
Note: Conrm JP3 is "Close" status.
P1
P2
P3
Power CNN
VGA Port
Power Port
DVI Port
VGA2
DVI
VGA1
