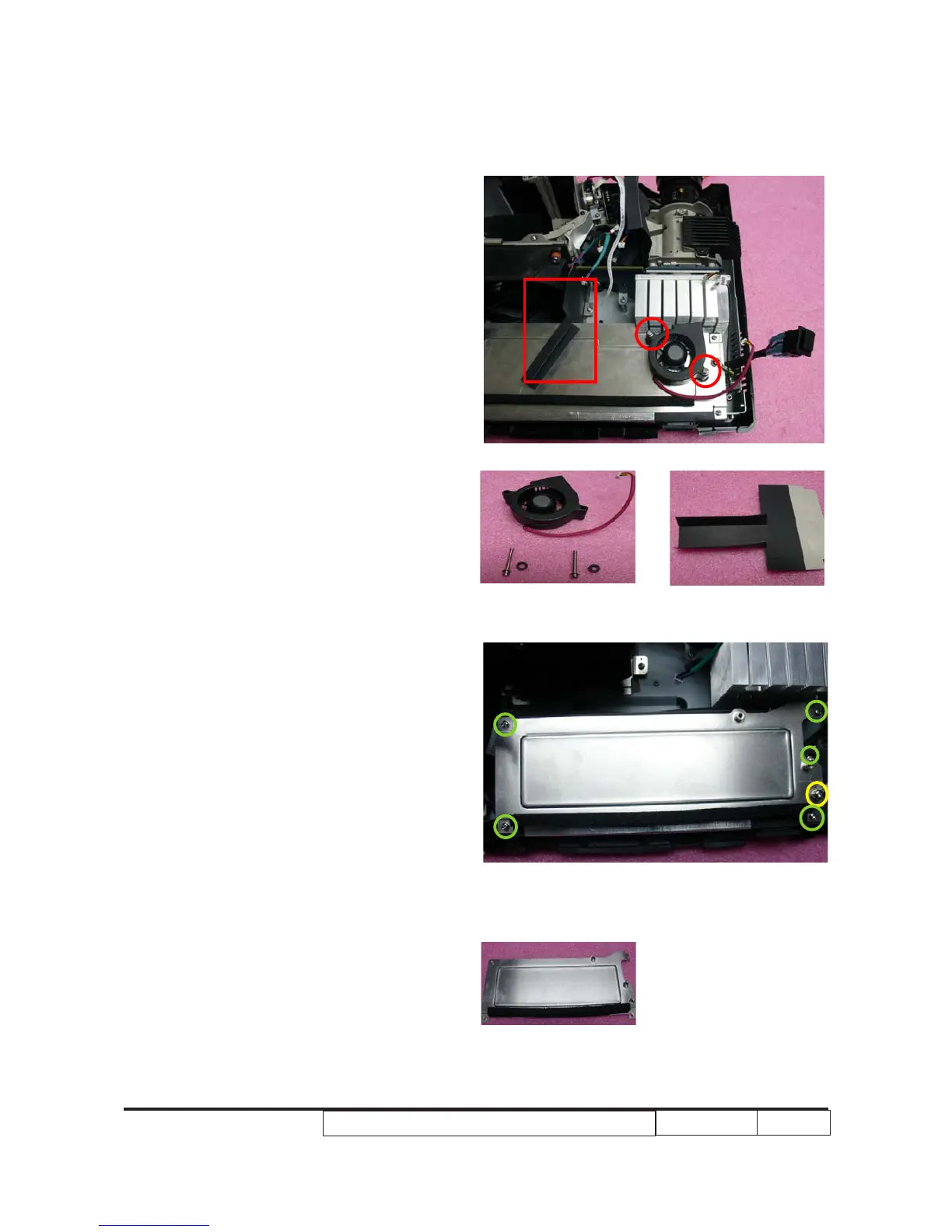

2-13 Disassemble LVPS
Module
1. Unscrew 2 screws to disassemble the
Blower (as red circle / only for P7280/
P7280 Refresh)
2. Tear off the Mylar (as red square)
3. Unscrew 1 ground screw (as yellow circle)
4. Unscrew 5 screws(as green circle)
5. Disassemble LVPS Shielding
To Next Page
