Acer P7280 Refresh - Chapter 2 Disassembly Process; Equipment Needed & Product Overview

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential
2-1
Chapter 2
Disassembly& Assembly Process
2-1 Equipment Needed & Product Overview

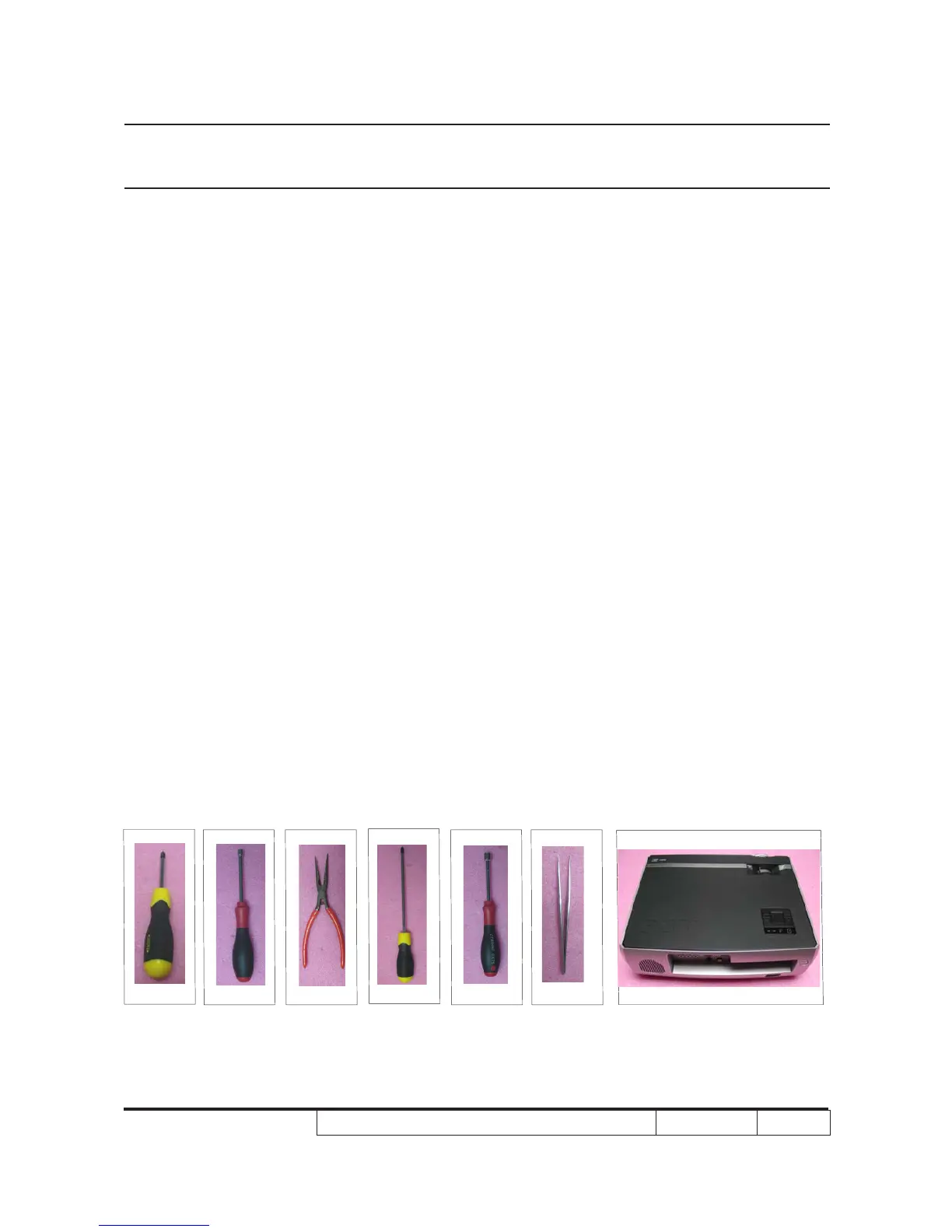

1. Screw Bit (+) :107
2. Hex Sleeves 5mm
3. Long Nose Nipper
4. Screw Bit (+) :102
5. Hex Sleeves 7mm
6. Tweezers
7. P7280/P7270I/P7280 Refresh/P7270I Refresh unit
* Before you start: This process is protective level II. Operators should wear electrostatic chains.
* Note: 1. If you need to replace the main board, you have to get into service mode and record the
lamp usage hour. please refer to section 2-27
2.The disassembly and assembly process for P7280/P7270i/P72780 Refresh/p7270i
Refresh is the same. Here, we take P7270i as an example
