Acer P7280 Refresh - Assemble Elevator Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-36
2-28 Assemble Elevator
Module

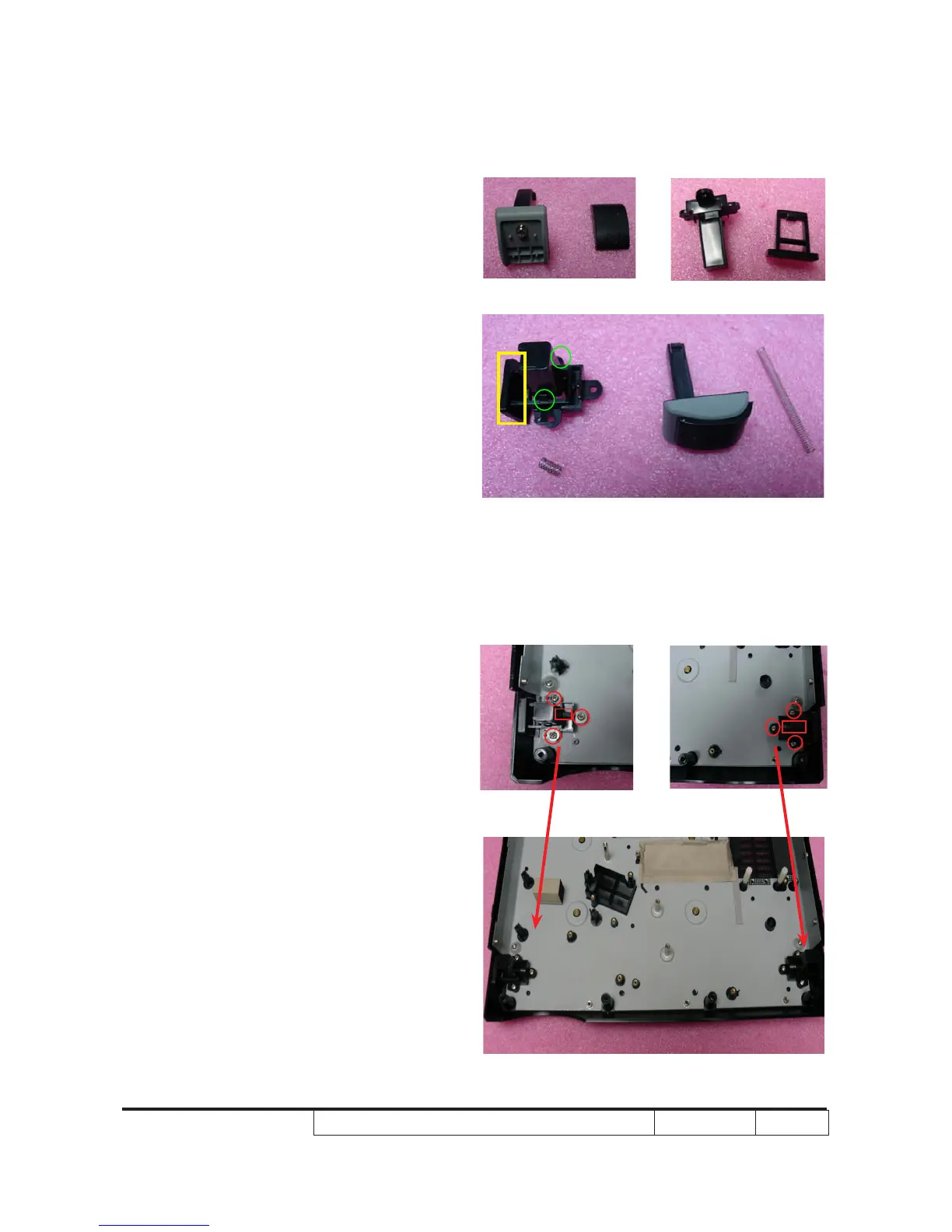

1. Assemble Foot Rubber on Elevator Foot ,
fasten 2 tenons (as green circle) to
assemble Holder and Elevator Key
2. Assemble Elevator Module
3. Assemble 1 spring (as red square) and 3
screws on each side (as red circle)
Note: The Elevator KEY installed in the
direction (inward side of the ramp)
(as yellow square)
