Acer P7280 Refresh - Disassemble Elevator Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-33
2-25 Disassemble Elevator
Module

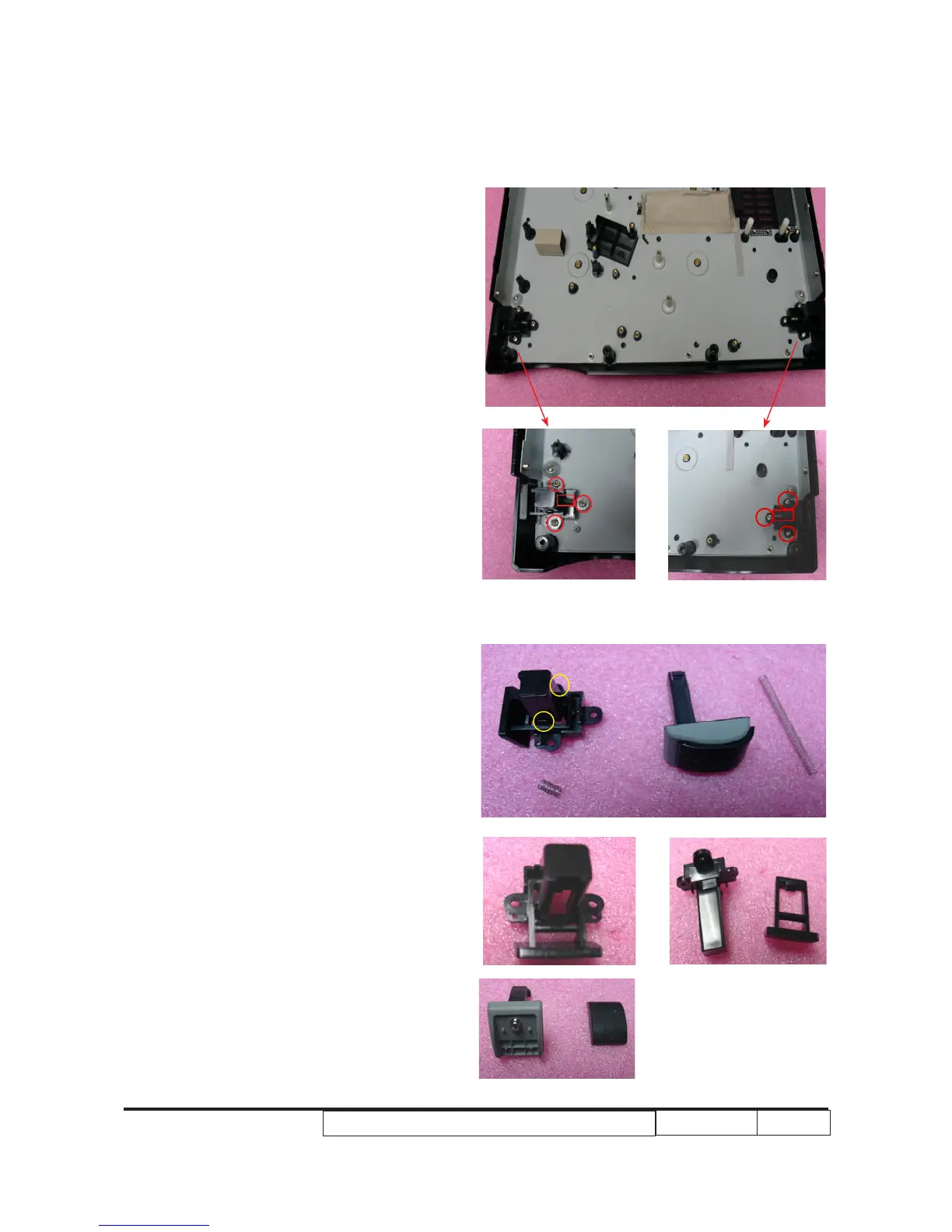

1. Unscrew 3 screws (as red circle) and
disassemble 1 Spring (as red square)
on each side
2. Disassemble Elevator Module
3. Loose 2 tenons
(as yellow circle)
4. Separate Holder and Elevator Key
5. Disassemble Foot Rubber on Elevator
Foot
