Acer P7280 Refresh - Disassemble Top Cover Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-2
2-2 Disassemble Top Cover
Module

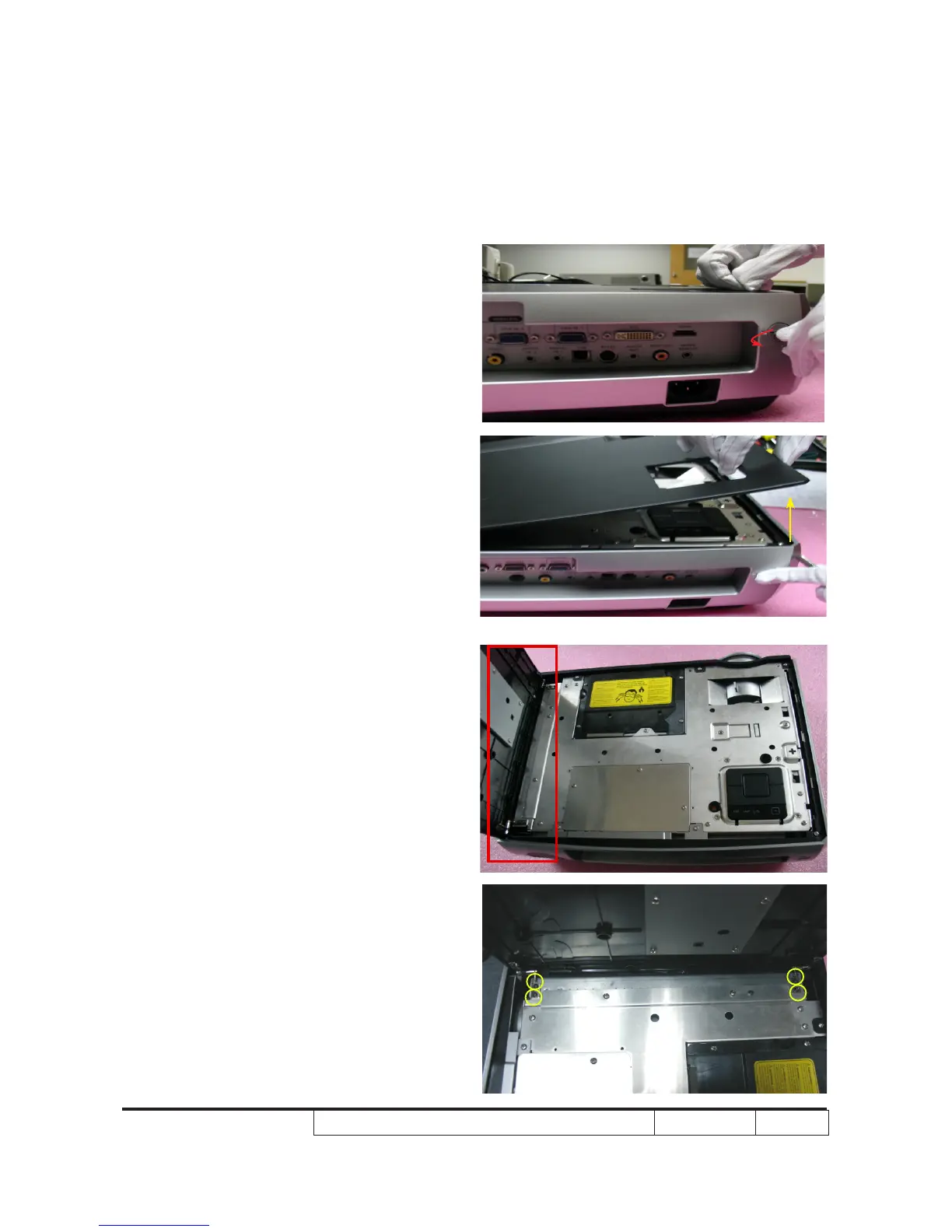

1. Rotate the Top Cover Lock
counterclockwise (as red arrow)
2. Pull up the Top Cover
(as yellow arrow)
3. Unscrew 4 screws and disassemble the
Top Cover Module (as yellow circle)
