Acer P7280 Refresh - Assemble LVPS Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-45

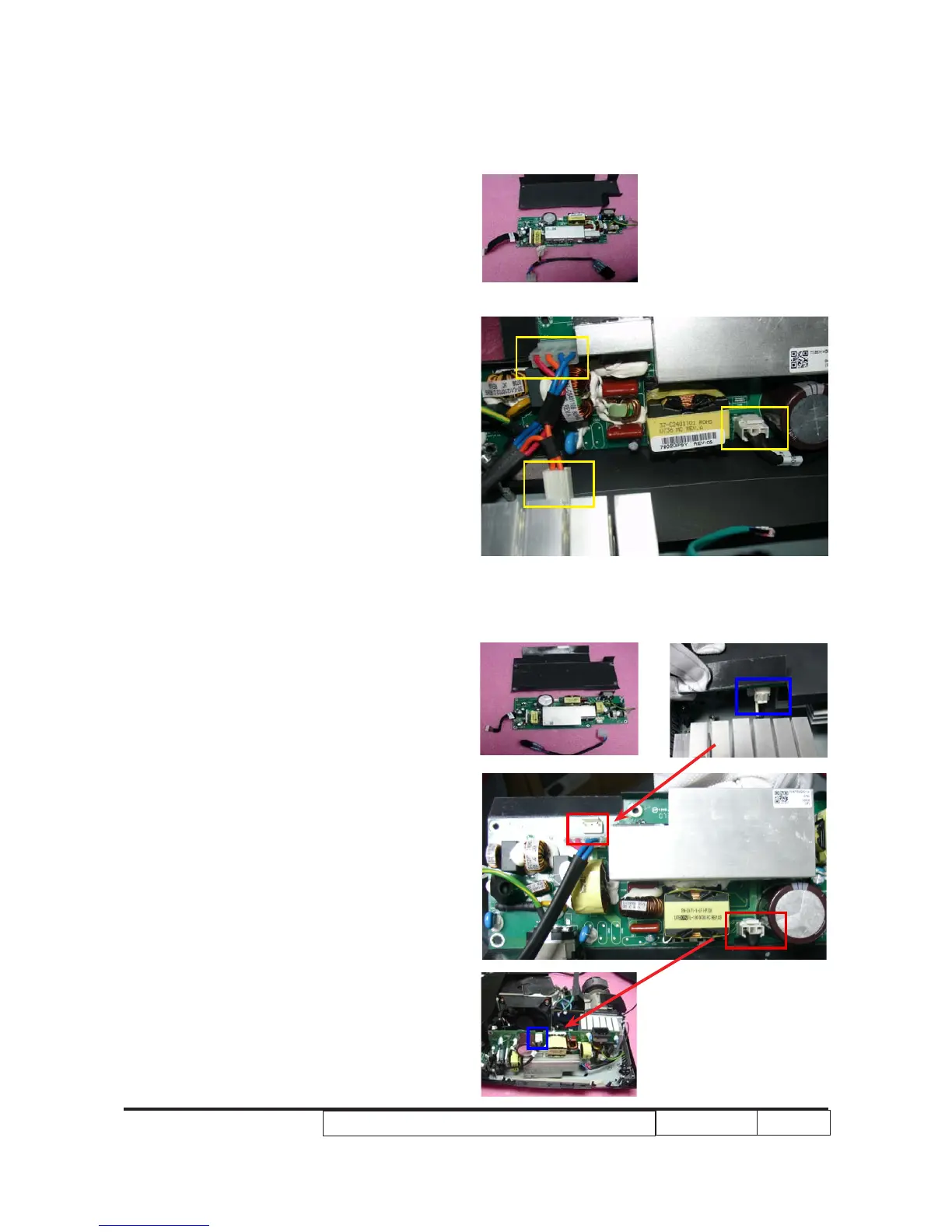

2-41 Assemble LVPS Module
1. Paste Mylar and assemble P7270I/P7270I
Refresh LVPS Module
2. Insert 3 connectors
(as yellow square/only for P7270I/P7270I
Refresh)
3. Paste Mylar and assemble P7280/P7280
Refresh LVPS Module
4. Insert 2 connectors
(as blue square/ only for P7280/P7280
Refresh)
P7270I/P7270I Refresh
P7280/P7280 Refresh
