Acer P7280 Refresh - Assemble System Duct Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-39
2-32 Assemble System Duct
Module

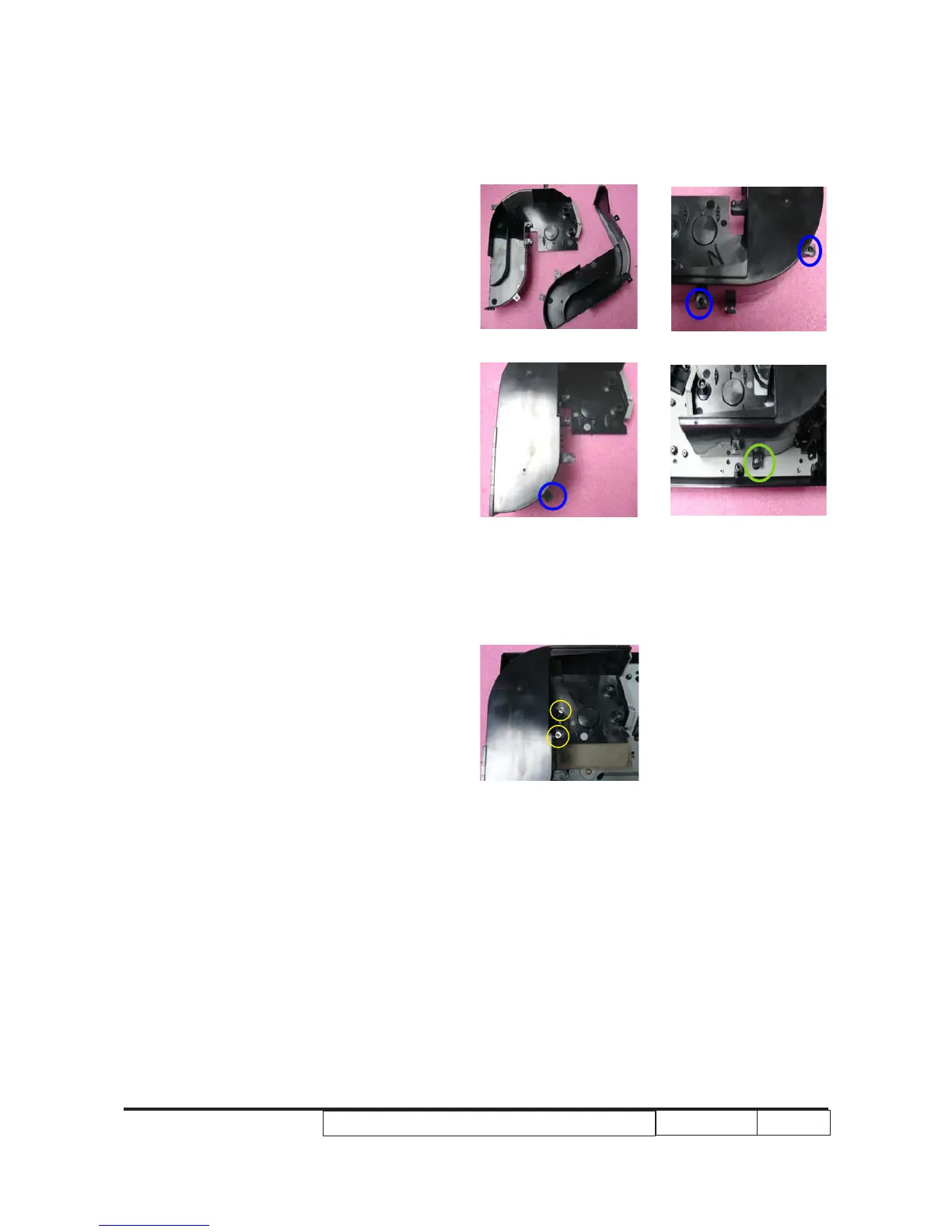

1. Assemble System Duct Top and Bottom
Cover and screw 3 screws (as blue circle)
2. Assemble System Duct Module on Bottom
Cover and screw 1 screw (as green circle)
3. Assemble Lamp Cable and screw 2
screws (as yellow circle)
