Acer P7280 Refresh - Disassemble Zoom Ring

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-10

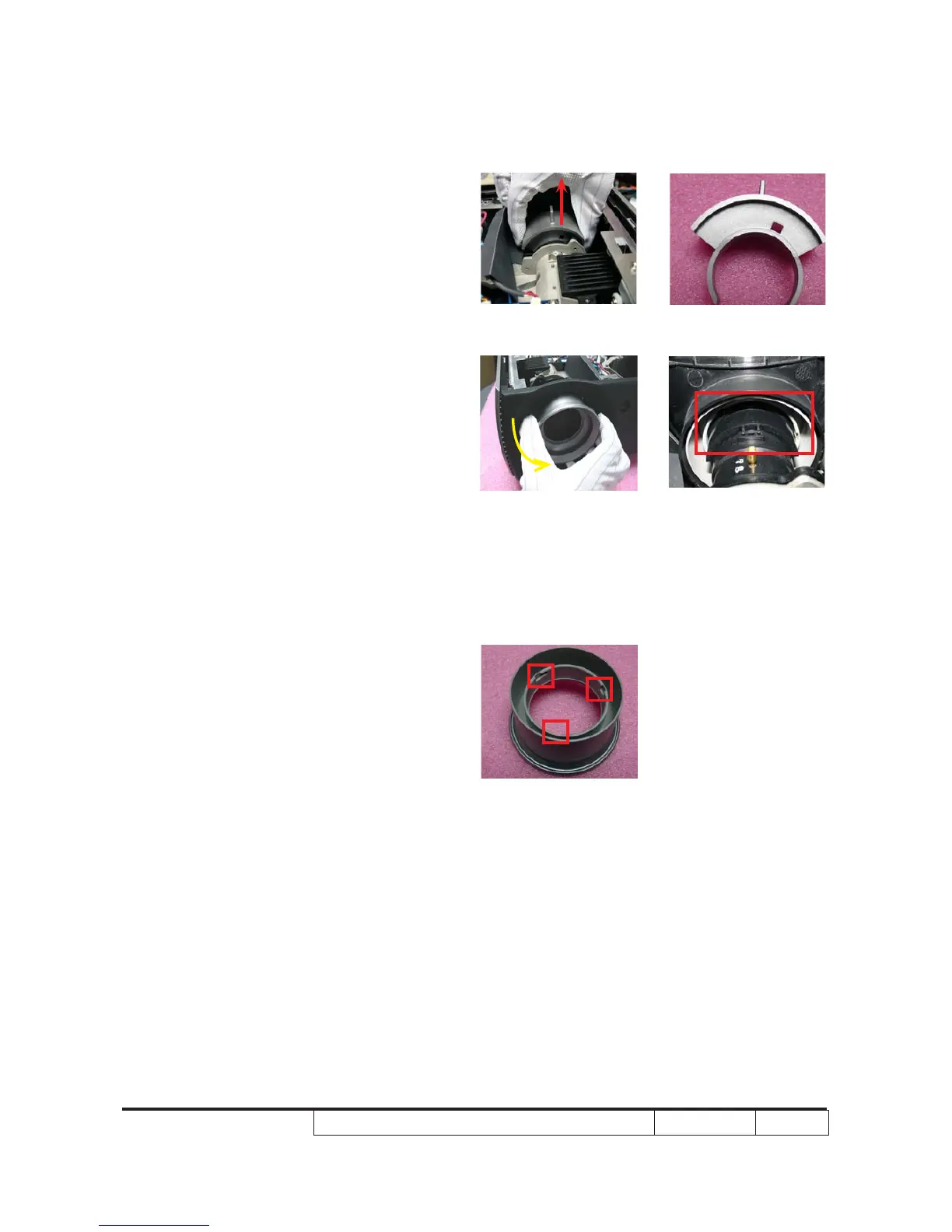

2-6 Disassemble Zoom Ring
and Focus Ring
1. Pull up the Zoom Ring (as red arrow) to
disassemble Zoom Ring
2. Grasp the Focus Ring and rotate 3
tenons counterclockwise to loose 3
tenons for disassemble Focus Ring
(as yellow arrow)
