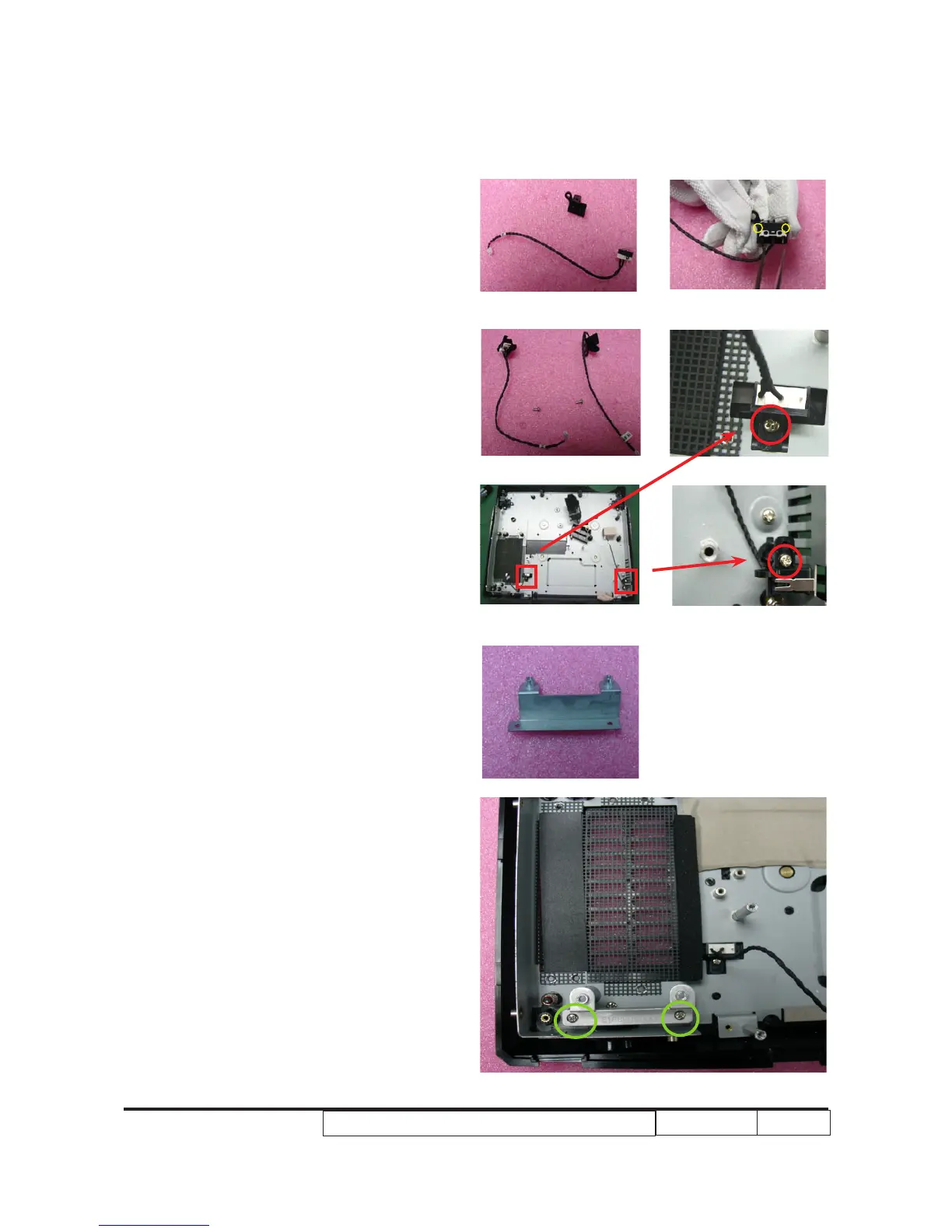

2-29 Assemble Interrupt
Switch Module
1. Fasten 2 tennons (as yellow circle) and
assemble the Interrupt Switch on the
Holder
2. Assemble 1 Interrupt Switch and screw
1 screw (as red circle) on each side
2-30 Assemble Lamp Driver
Holder (only for P7270I/
P7270I Refresh)
1. Assemble the Lamp Driver Holder and
screw 2 screws (as green circle)
Holder
Interrupt Switch
P7270I/P7270I Refresh
