Acer P7280 Refresh - Disassemble Lamp Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-4

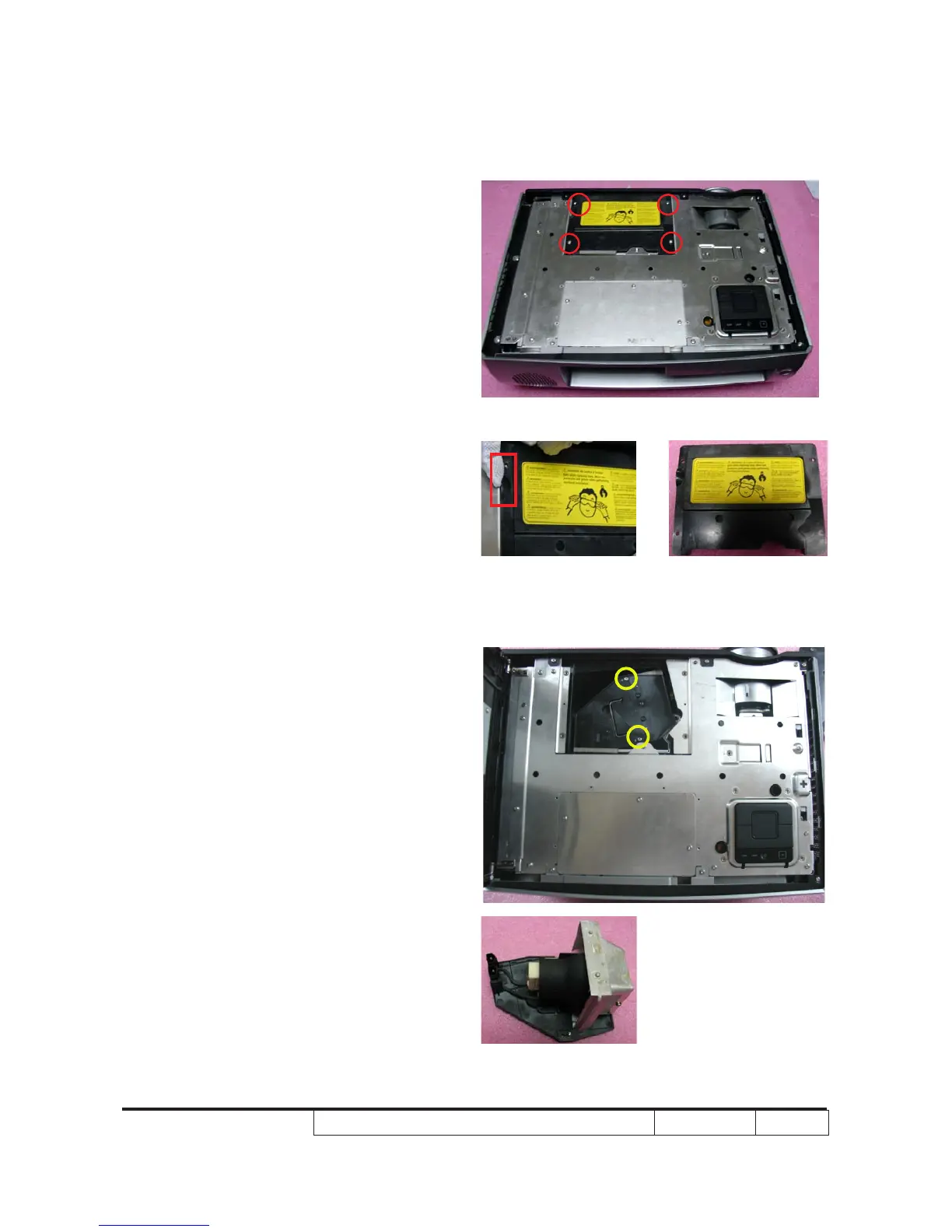

2-3 Disassemble Lamp
Module
1. Unscrew 4 screws
(as red circle)
2. Pull up the Lamp Cover from the red
square and disassemble Lamp Cover
3. Unscrew 2 screws (as yellow circle) and
disassemble Lamp Module
