Acer P7280 Refresh - Assemble ROD Duct Module; Assemble ROD Blower Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-40
2-33 Assemble ROD Duct

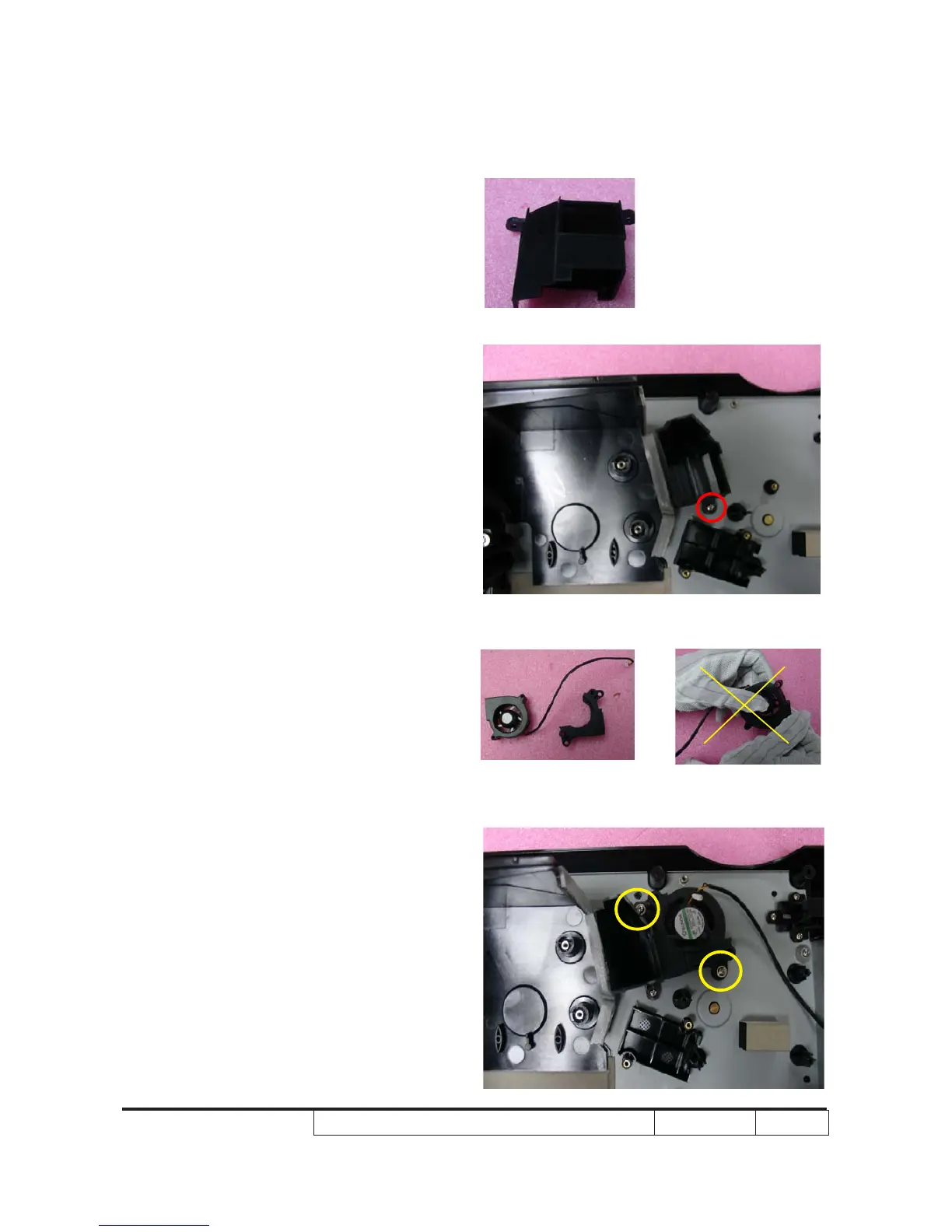

1. Assemble the ROD Duct and screw 1
screw (as red circle)
2-34 Assemble ROD Blower
Module
1. Assemble ROD Blower on the Rubber
2. Screw 2 screws (as yellow circle)
Note : Avoid to press the Blower with great
strenth.
