P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-27
2-19 Disassemble ROD
Blower Module

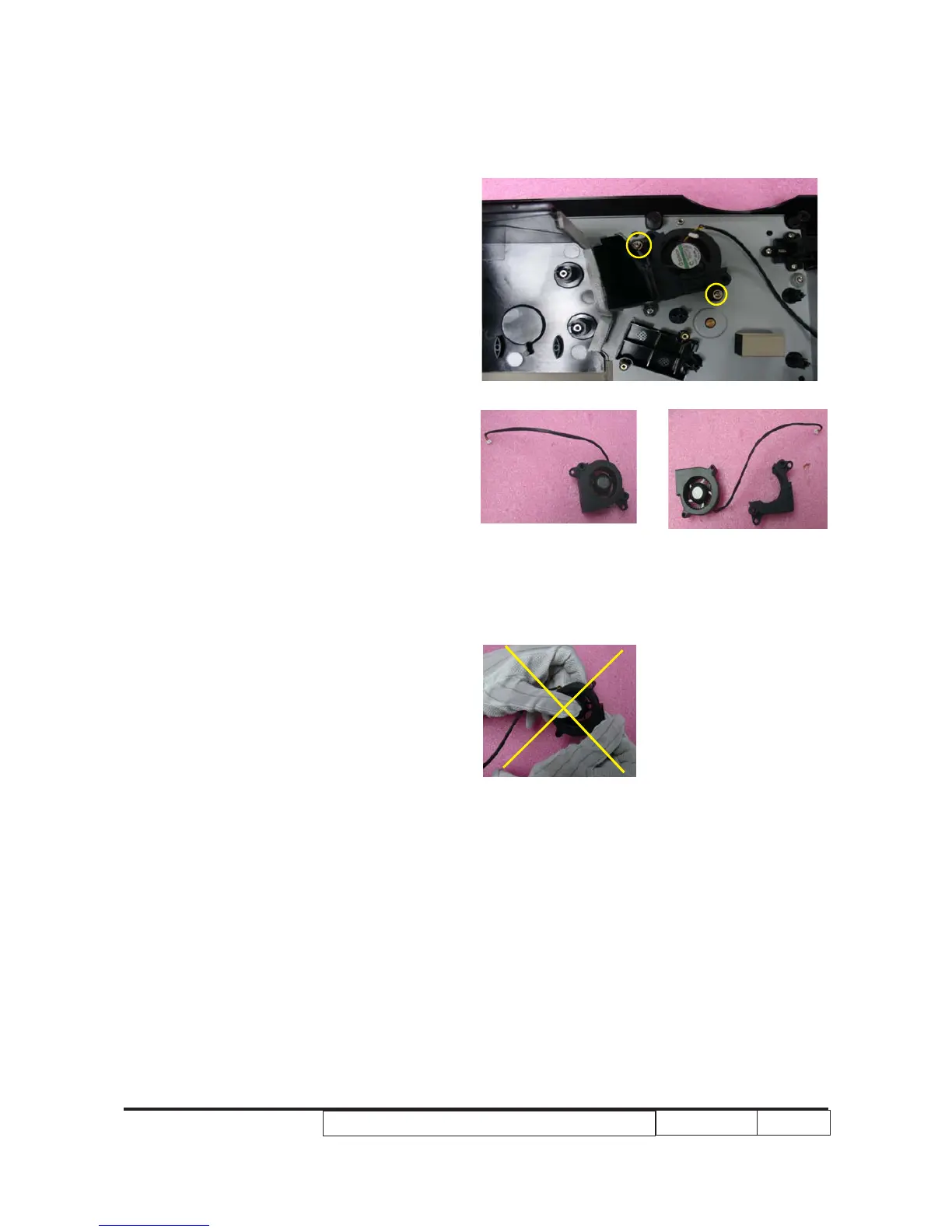

1. Unscrew 2 screws
(as yellow circle)
2. Disassemble ROD Blower Module and
separate the Blower from the Rubber
Note : Avoid to press the Blower with great
strenth.
