Acer P7280 Refresh - Assemble Color Wheel Module; Assemble Thermal Switch

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-42
2-37 Assemble Color Wheel
Module

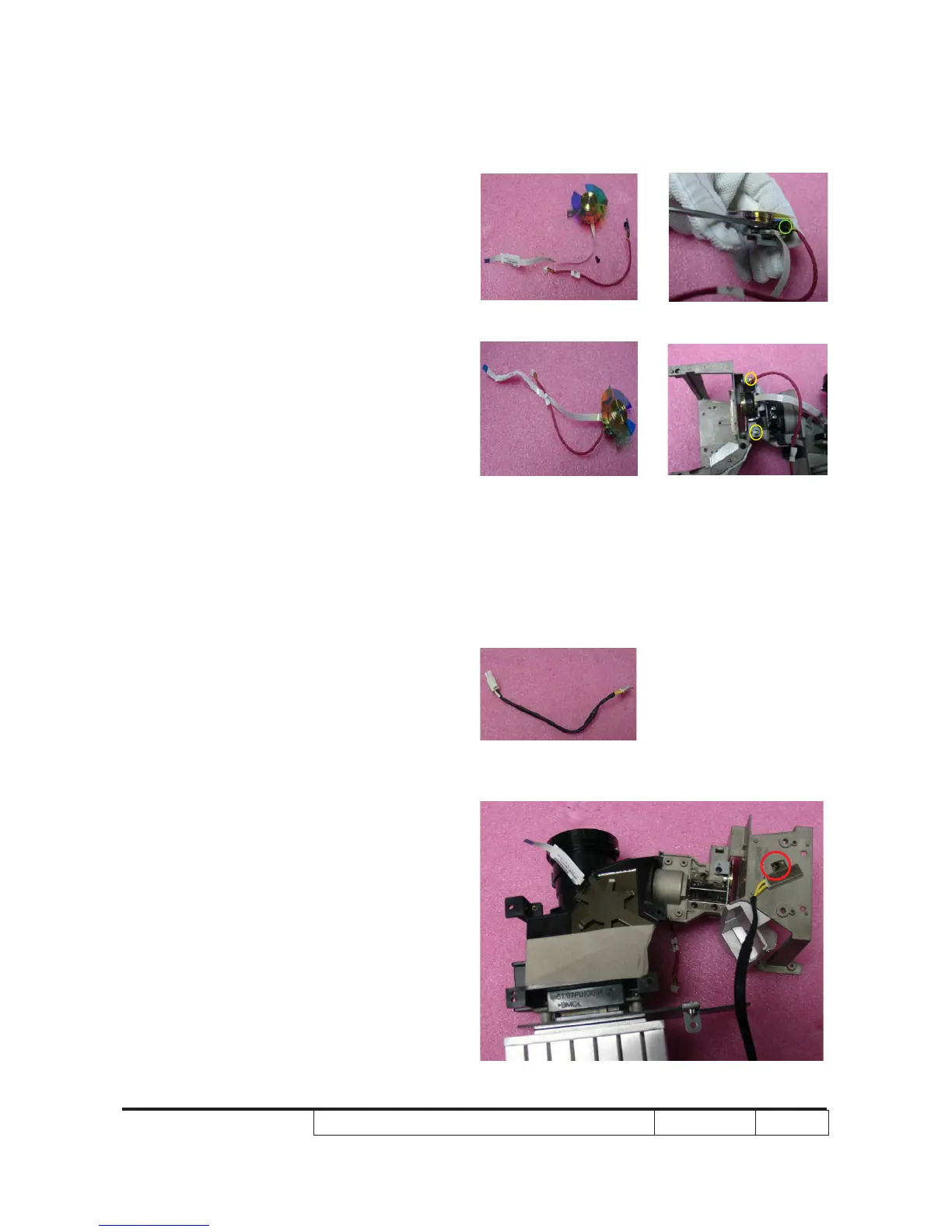

1. Assemble Photo Sensor Board and screw
1 screw (as green circle)
2. Assemble Color Wheel Module and screw
2 screws (as yellow circle)
2-38 Assemble Thermal
Switch
1. Assemble Thermal Switch and screw 1
screw (as red circle)
