P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-60

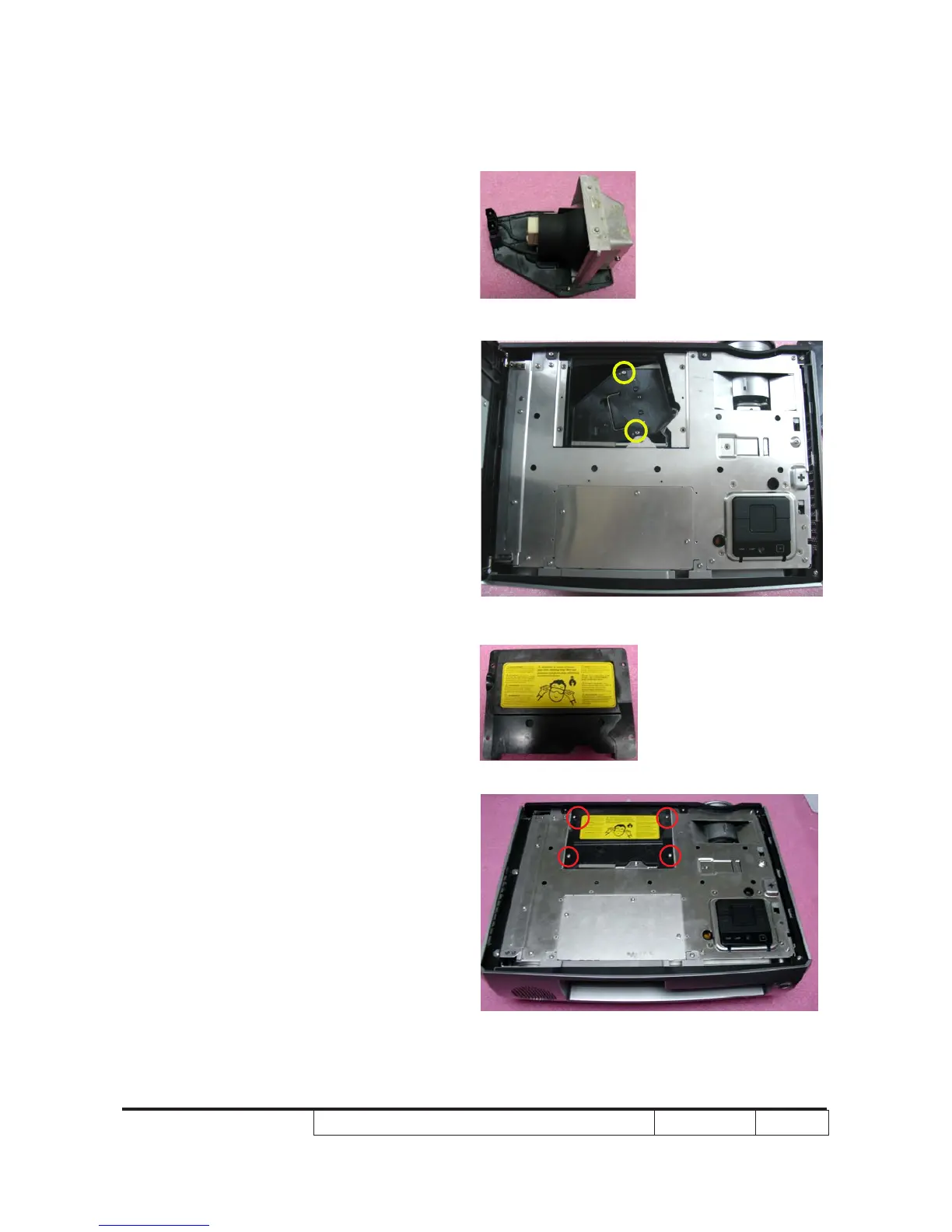

2-51 Assemble Lamp Module
1. Assemble Lamp Module and screw 2
screws (as yellow circle)
2. Assemble the Lamp Cover and screw 4
screws (as red circle)
