Acer P7280 Refresh - Assemble Lamp Driver Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-38
2-31 Assemble Lamp
Driver Module

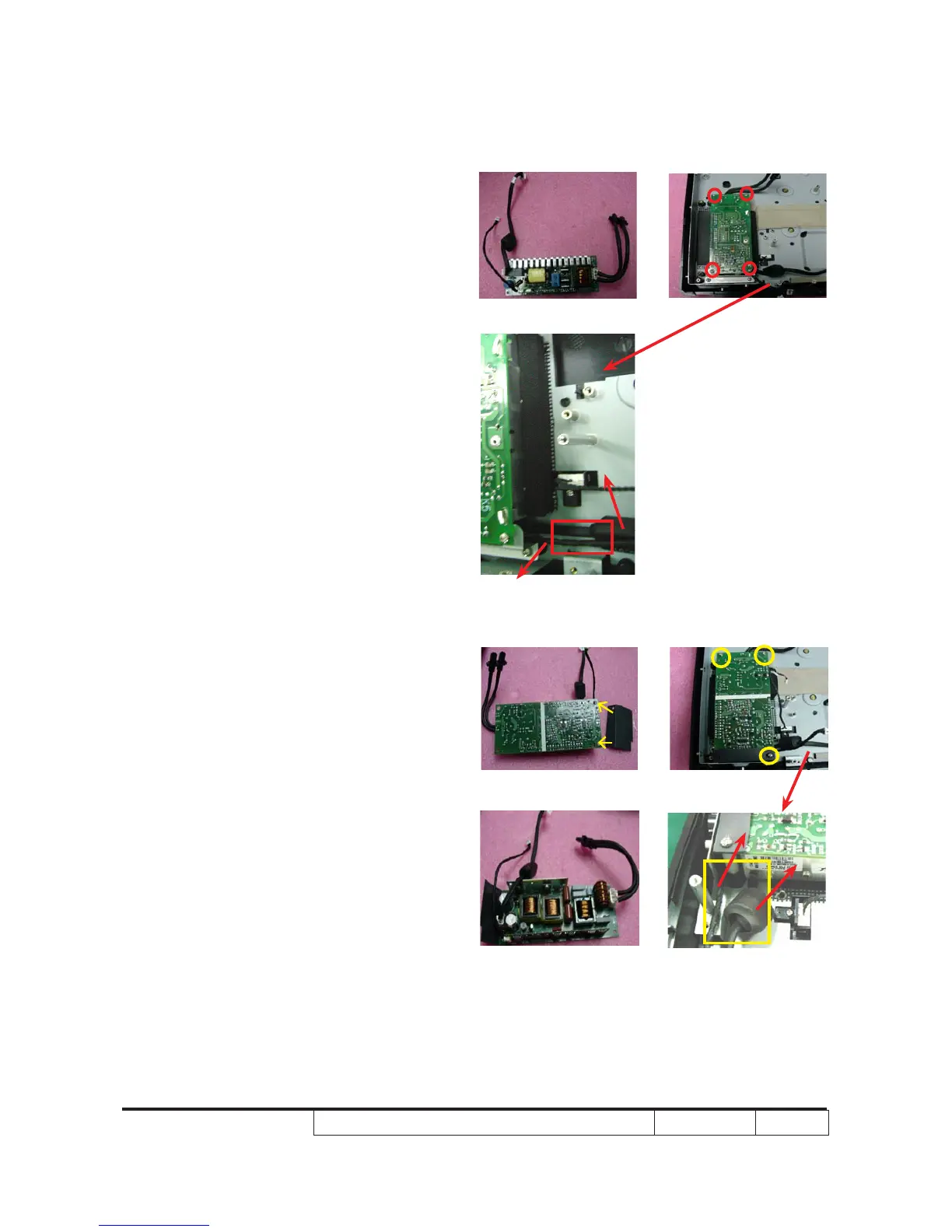

1. Assemble P7270I/P7270I Refresh Lamp
Driver Module and screw 4 screws
(as red circle)
2. Paste Mylar and assemble P7280/P7280
Refresh Lamp Driver Module and screw 3
screws (as yellow circle)
Note: 1.The Mylar holes must consistent with
Lamp Driver PCBA Holes when soak
Mylar (as yellow arrow)
2.2P and 5P Wires ‘ s position when
assemble 2P and 5P Wires
(as red and yellow square)
P7270I/P7270I
Refresh
P7280/P7280 Refresh
P7280/P7280 Refresh
2P Wire
5P Wire
P7270I/P7270I
Refresh
5P Wire
2P Wire
