P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-49
2-43 Assemble Main Board
Module and I/O Board
Module

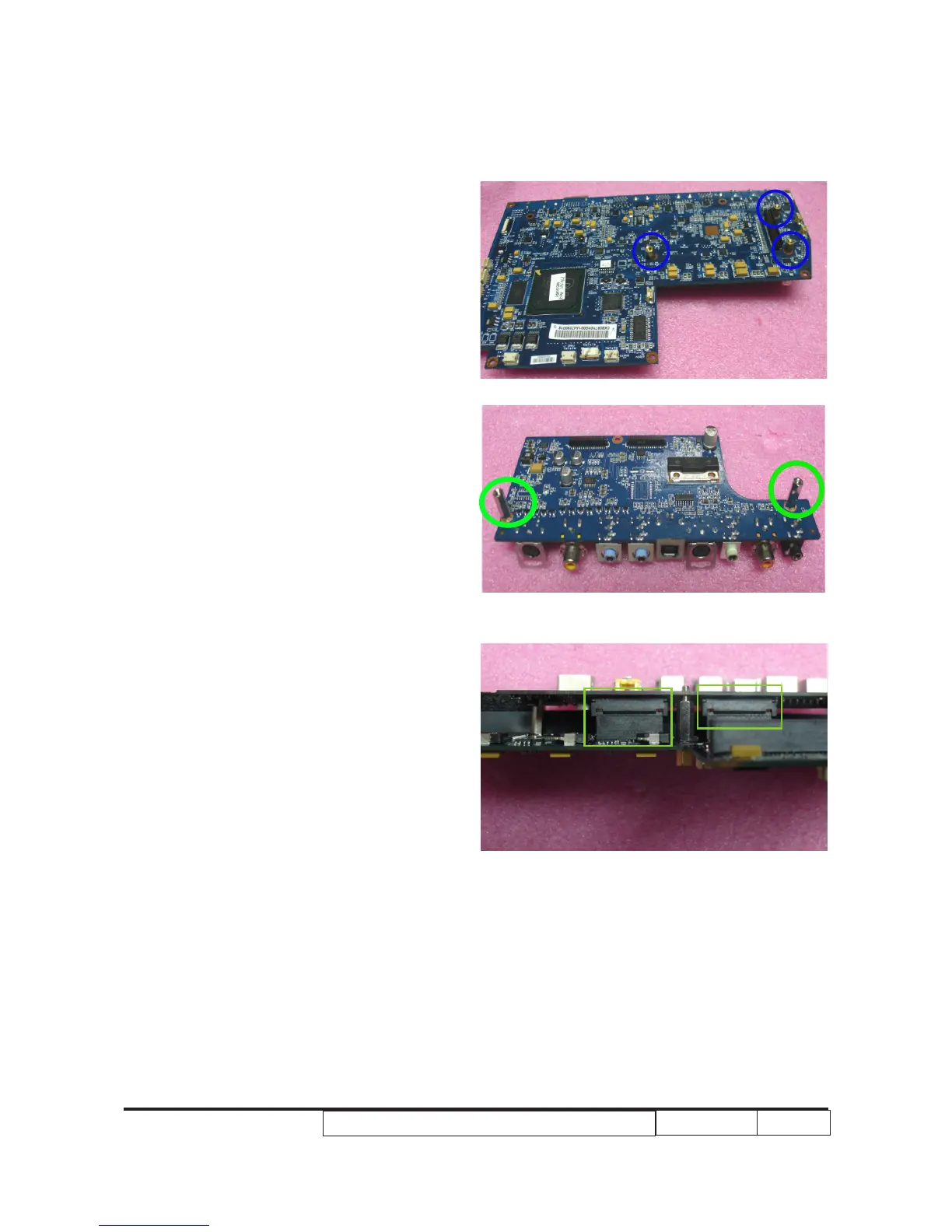

1. Screw 3 Copper Holders (as blue circle)
on Main Board
2. Screw 2 Copper Holders (as green circle)
on I/O Board
3. Insert 2 connectors (as green square)
and assemble I/O Board Module on Main
Board Module
