Acer P7280 Refresh - Item Description Item

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential
1-10

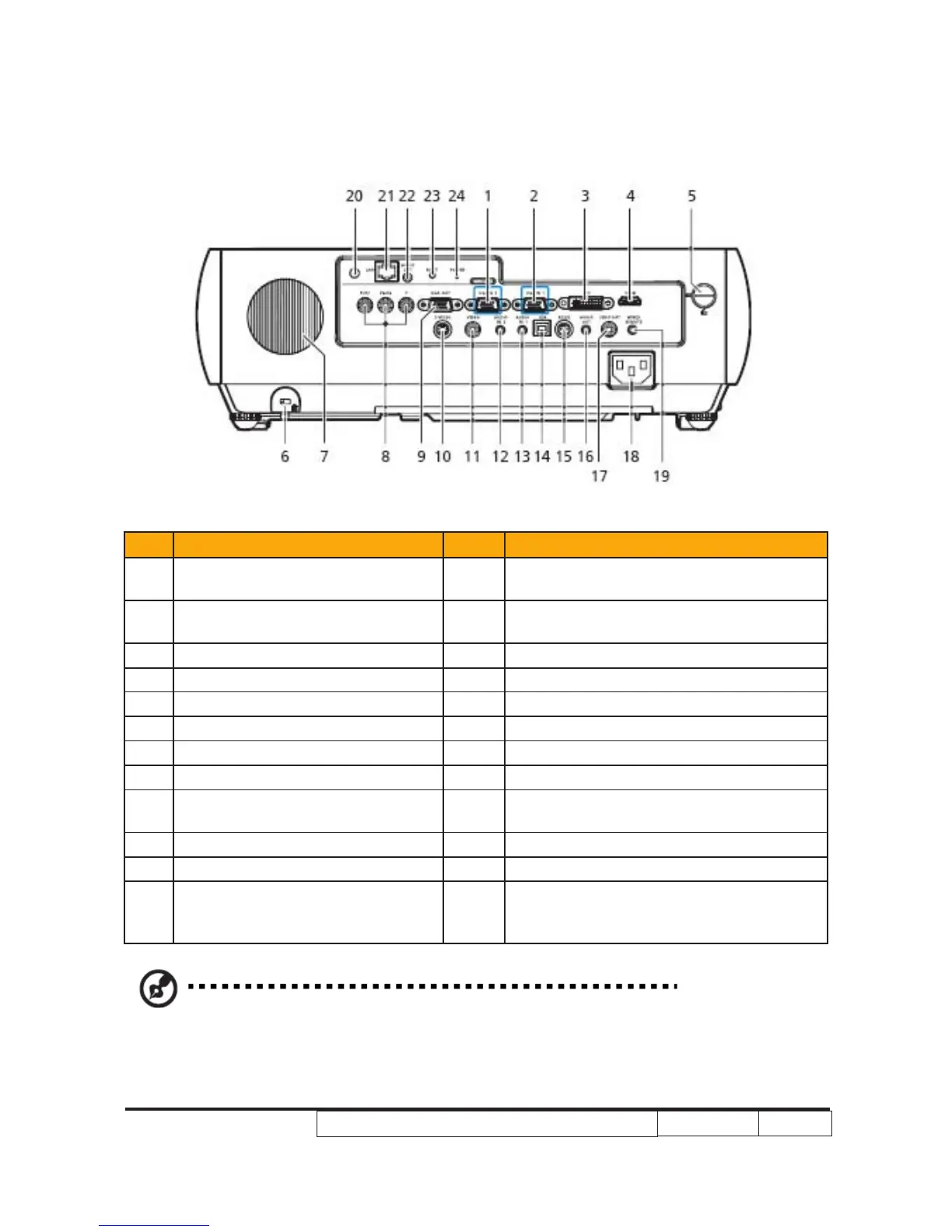

Rear side
Item Description Item Description
1
PC analog signal/HDTV/component
video input connector (VGA IN 2)
13 VGA IN 1/DVID/HDMI with PC signal
2
PC analog signal/HDTV/component
video input connector (VGA IN 1)
14 USB connector
3 DVI input connector (for digit signal) 15 RS232 connector
4 HDMI connector 16 Audio output connector
5 Top cover release button 17 SPDIF output connector
6 KensingtonTM lock port 18 Power socket
7 Horn 19
(#)
Wired IR remote input connector
8 YPbPr/YCbCr input connector 20
(#)
Antenna
9
Monitor loop-through output
connector (VGA-Out)
21
(#)
Lan (RJ45 Port for 10/100M Ethernet)
10 S-Video input connector 22
(#)
Audio output connector for wireless
11 Composite video input connector 23
(#)
Reset button
12
Audio input connector (VGA IN 2/
Component/S-video/Composite
signal)
24
(#)
Power LED for wireless
Note: “#” Only for P7270i series.
