Acer P7280 Refresh - Assemble Left and Right Cover Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-53

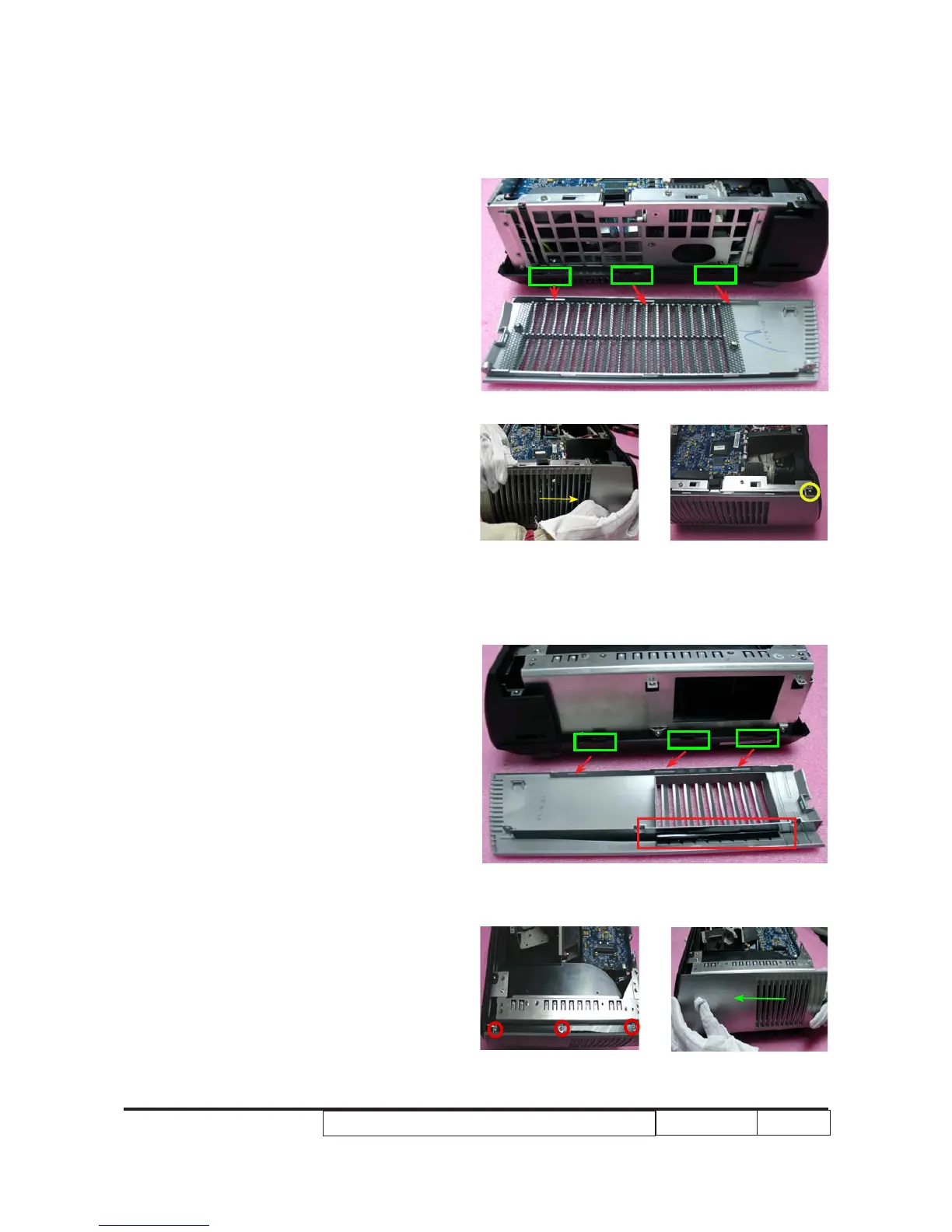

2-46 Assemble Left and Right
Cover Module
1. Assemble the Left Cover Module(as yellow
arrow) and screw 1 screw (as yellow circle)
2. Paste the Mylar (as red square)
3. Assemble the Right cover Module (as
green arrow) and screw 3 screws (as red
circle)
Note: There are 3 tenons on Left Cover
Module and the same of the Right
Cover Module (as green square)
