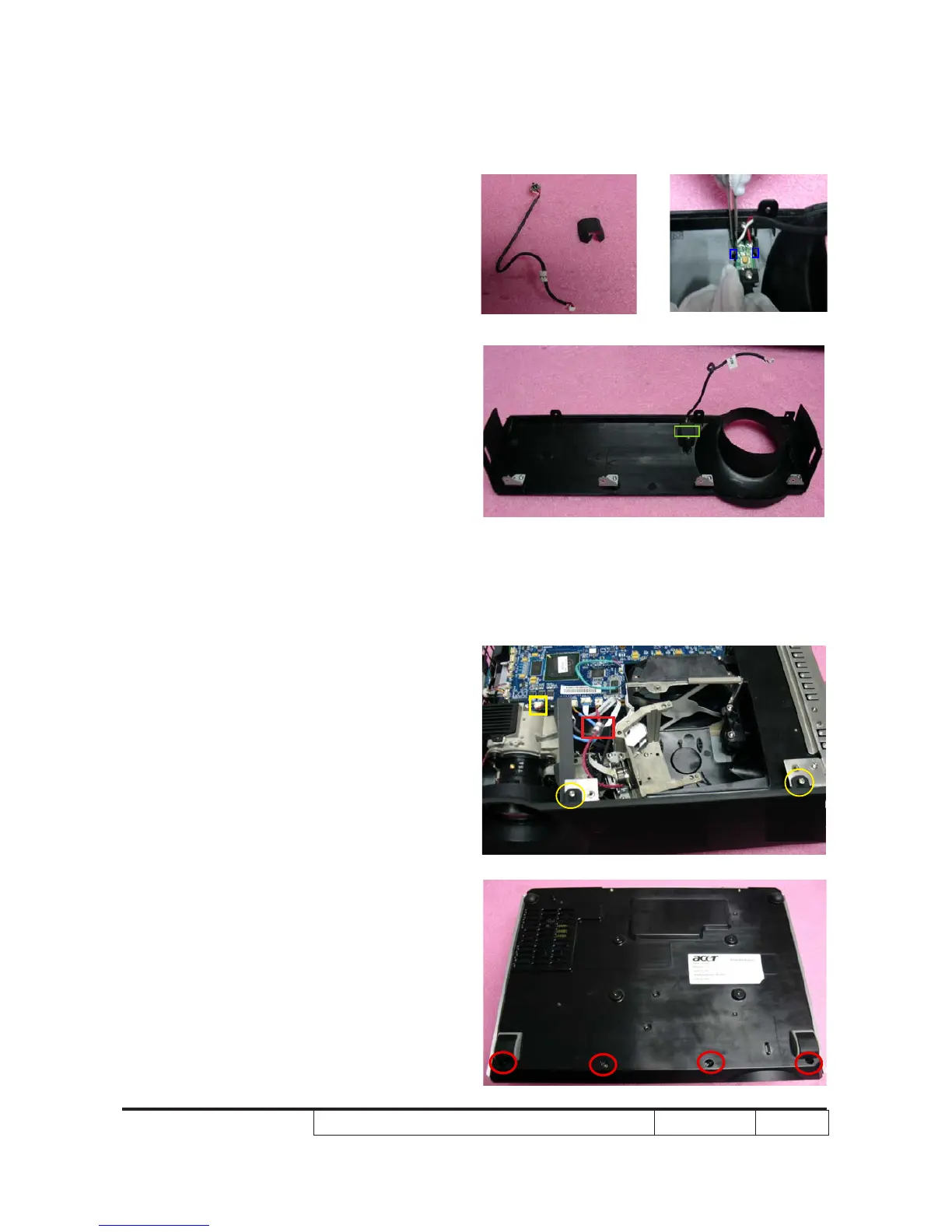

2-45 Assemble Front Cover
Module
1. Assemble the IR Sensor and paste the
Mylar (as green square)
2. Insert 1 connector (as yellow square)and
bundle up Cable Tie (as red square)
3. Screw 2 screws (as yellow circle) and
turn over the Projector
4. Screw 4 screws (as red circle)
IR Sensor
Mylar
To Next Page
