Acer P7280 Refresh - Setup Procedure (HDMI)

P7270I/P7280/P7270I Refresh/P7280 Refresh Condential
6-7

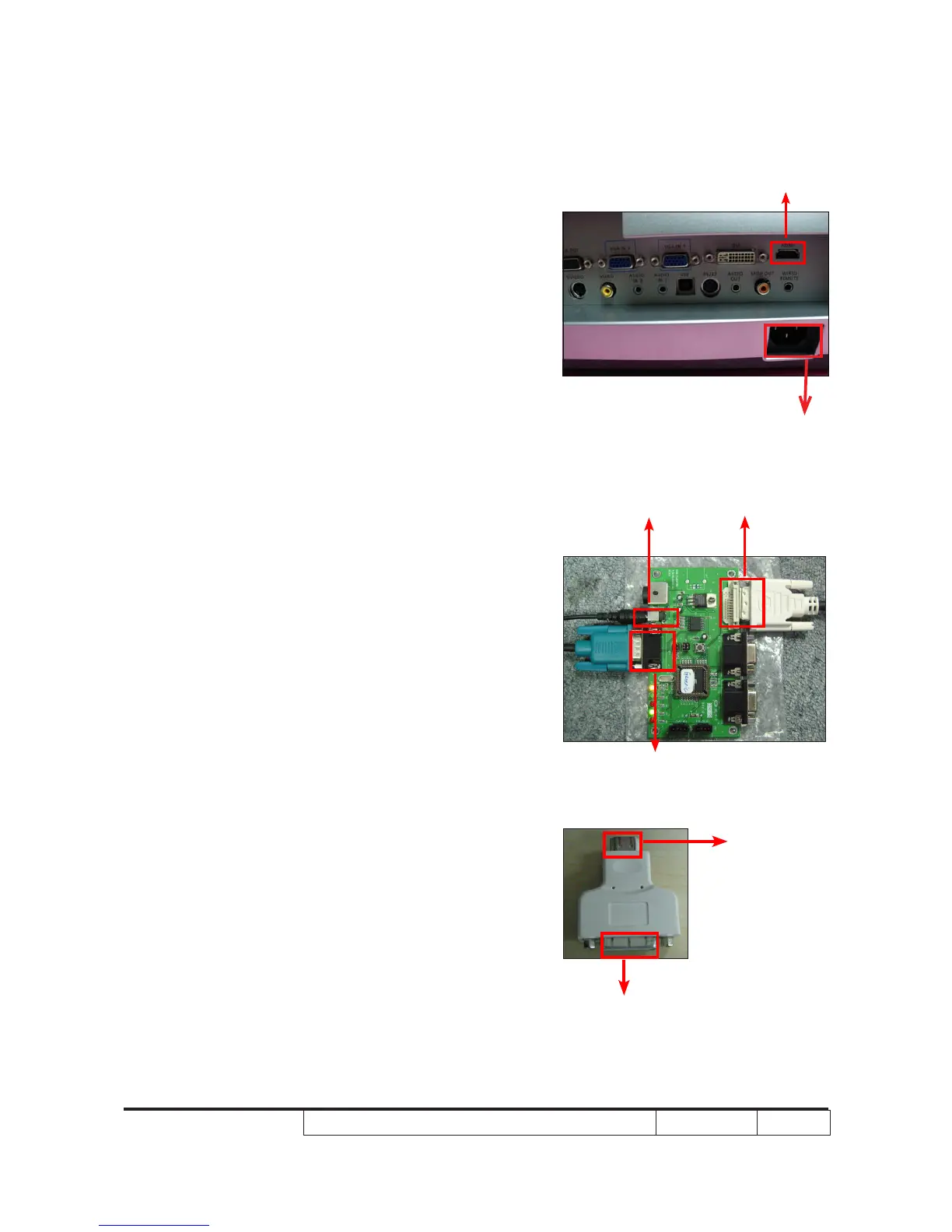

6-5 Setup Procedure (HDMI)
1. Connect all ports
(1) Connect P1 of Fixture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P2 of Fixture with P3 by DVI
Cable.
(3) Plug P4 to P7270I HDMI Port.
(4) Plug Power Adapter to Power
CNN.
(5) Plug Power Cord to P7270I Unit.
Note: Conrm JP3 is
"
Close
"
status.
P3
P4
HDMI Port
Power Port
P2Power CNN
P1
