Acer P7280 Refresh - Assemble Engine Module

P7280/P7270I/P7280 Refresh/P7270I Refresh
Condential 2-43

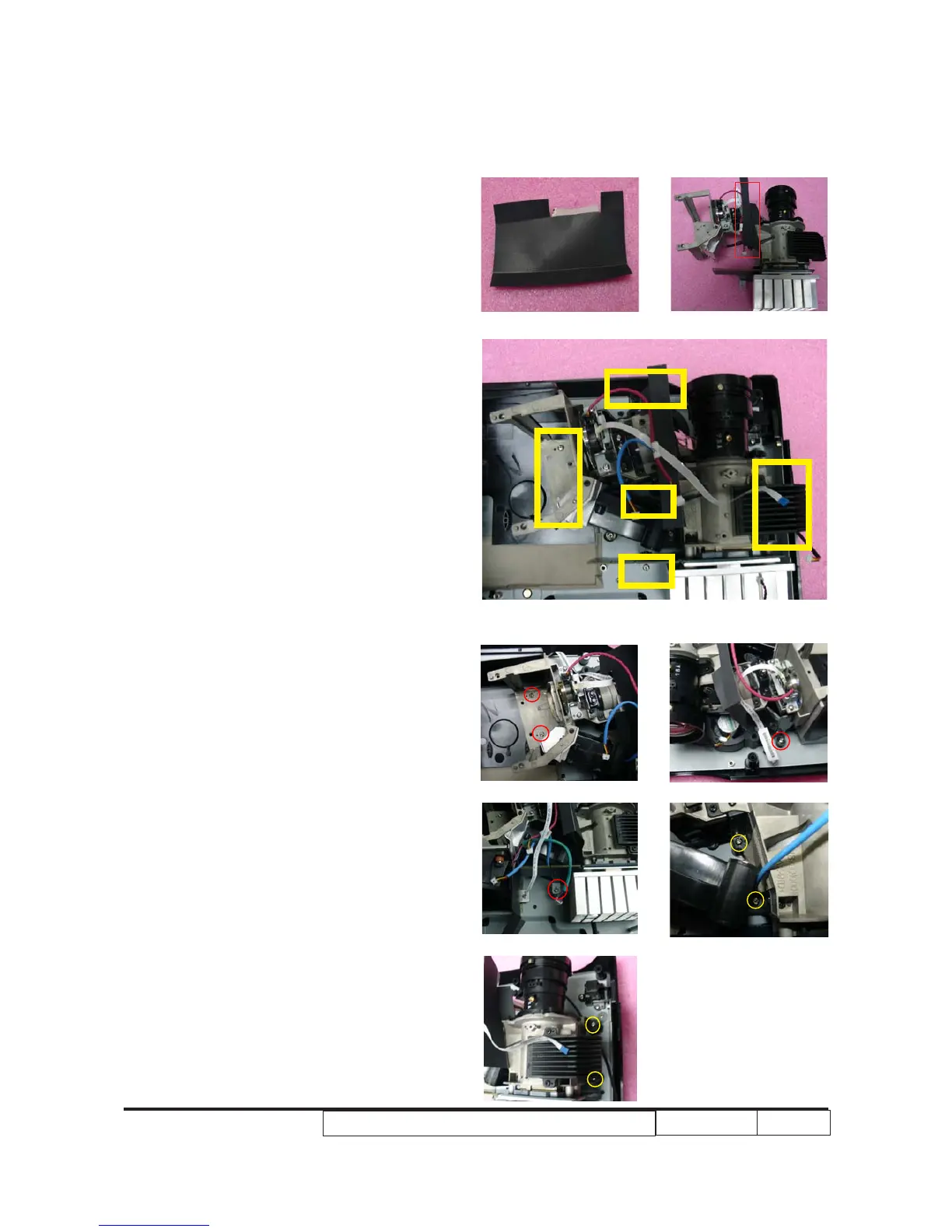

2-39 Assemble Engine
Module
1. Paste the Mylar (as red square)
2. Assemble the Enging Module
3. Screw 4 screws (as red circle)
4. Screw 4 screws (as yellow circle)
A
B
C
D
E
E
D
C
B
A
